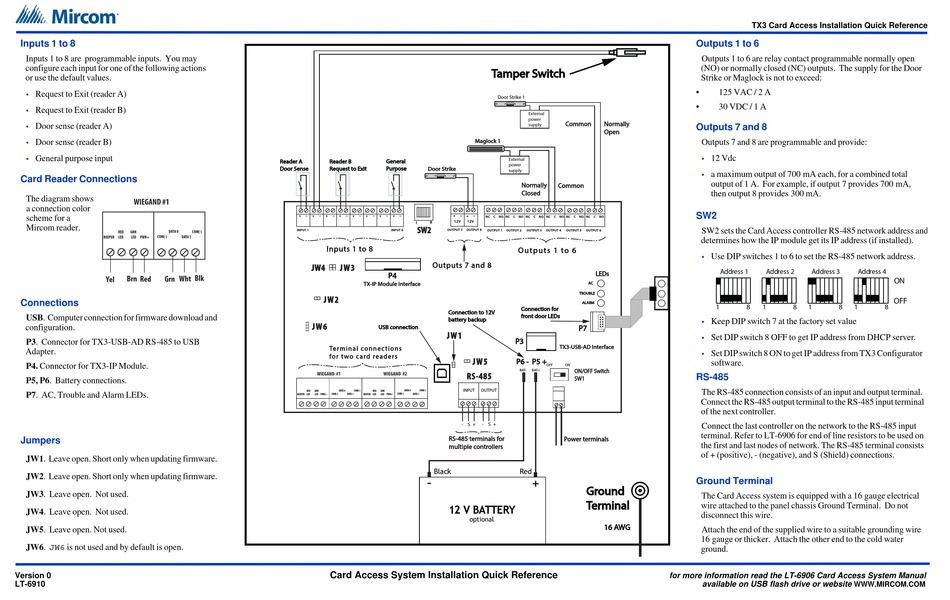

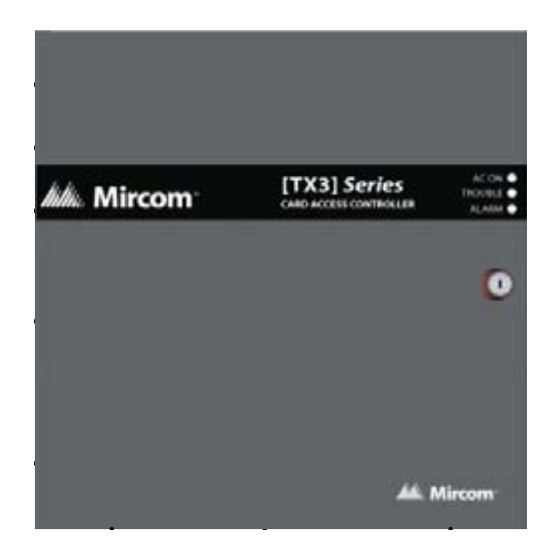

Mircom TX3 Series Installation Quick Reference

Inputs 1 to 8
Inputs 1 to 8 are programmable inputs. You may
configure each input for one of the following actions
or use the default values.
• Request to Exit (reader A)
• Request to Exit (reader B)
• Door sense (reader A)
Door sense (reader B)
•
• General purpose input
Card Reader Connections
The diagram shows
WIEGAND #1
a connection color
scheme for a
Mircom reader.
RED GRN DATA 0 COM(-)
COM(-) DATA 1
BEEPER LED LED PWR+
Wht Blk
Brn Red Grn
Yel
Connections
USB. Computer connection for firmware download and
configuration.
P3. Connector for TX3-USB-AD RS-485 to USB
Adapter.
P4. Connector for TX3-IP Module.
P5, P6. Battery connections.
P7. AC, Trouble and Alarm LEDs.
Jumpers
JW1. Leave open. Short only when updating firmware.
JW2. Leave open. Short only when updating firmware.
JW3. Leave open. Not used.
JW4. Leave open. Not used.
JW5. Leave open. Not used.
JW6. JW6 is not used and by default is open.
Version 0
LT-6910
SW1
SW1 sets the Telephone Access controller network address. Use
DIP switches 1 to 5 to set the network address. DIP switches 6, 7
and 8 should remain at the factory set values.
General General
Reader A Reader A Reader B Reader B
Door Sense Door Sense Request to Exit Request to Exit Purpose Purpose Door Strike Door Strike
12V
SW2 SW2
INPUT 1 INPUT 8 OUTPUT 7
Inputs 1 to 8 Inputs 1 to 8
Outputs 7 and 8 Outputs 7 and 8
JW4 JW4 J W 3 J W 3
P4 P4
TX-IP Module Interface TX-IP Module Interface
J W 2 J W 2
Connection to 12V Connection to 12V
battery backup battery backup
JW 6 J W 6
USB connection USB connection
J W 1 JW 1
Te r m i n a l co n n e c t i o n s Te r m in a l co nn e c t i o ns
fo r t wo c a rd re a d e r s fo r t wo c ard re a d er s
WIEGAND #1 WIEGAND #2
DATA 0 COM(-) DATA 0 COM(-)
RED GRN RED GRN
BEEPER LED LED PWR+ COM(-) DATA 1 BEEPER LED LED PWR+ COM(-) DATA 1
RS-485 terminals for RS-485 terminals for
multiple controllers multiple controllers
Black
-
12 V BATTERY 12 V
Card Access System Installation Quick Reference
Tamper Switch Tamper Switch
Door Strike 1
External
power
Common Common Normally Normally
supply
Open Open
Maglock 1 Maglock 1
External
power
supply
Normally Normally
Common Common
Closed Closed
NC C NO NC C NO NC C NO NC C NO NC C NO NC C NO
12V
OUTPUT 8 OUTPUT 1 OUTPUT 2 OUTPUT 3 OUTPUT 4 OUTPUT 5 OUTPUT 6
O u t pu t s 1 to 6 O u t p u t s 1 to 6
LEDs LEDs
AC AC
TROUBLE TROUBLE
ALARM ALARM
Connection for Connection for
front door LEDs front door LEDs
P7 P7
P3 P3
TX3-USB-AD Interface TX3-USB-AD Interface
JW 5 J W 5 P6 - P6 - P5 + P5 +
OFF ON
BAT- BAT+ ON/OFF Switch ON/OFF Switch
RS-485 RS-485
SW1 SW1
INPUT OUTPUT
- S + S +
-
Power terminals Power terminals
Red
+
Ground Ground
Terminal Terminal
optional
16 AWG 16 AWG
TX3 Card Access Installation Quick Reference
Outputs 1 to 6
Outputs 1 to 6 are relay contact programmable normally open
(NO) or normally closed (NC) outputs. The supply for the Door
Strike or Maglock is not to exceed:
• 125 VAC / 2 A
• 30 VDC / 1 A
Outputs 7 and 8
Outputs 7 and 8 are programmable and provide:
12 Vdc
•
• a maximum output of 700 mA each, for a combined total
output of 1 A. For example, if output 7 provides 700 mA,
then output 8 provides 300 mA.
SW2
SW2 sets the Card Access controller RS-485 network address and
determines how the IP module get its IP address (if installed).
Use DIP switches 1 to 6 to set the RS-485 network address.
•
Address 1 Address 2 Address 3
1 8 1 8 1 8
Keep DIP switch 7 at the factory set value
•
Set DIP switch 8 OFF to get IP address from DHCP server.
•
• Set DIP switch 8 ON to get IP address from TX3 Configurator
software.
RS-485
The RS-485 connection consists of an input and output terminal.
Connect the RS-485 output terminal to the RS-485 input terminal
of the next controller.
Connect the last controller on the network to the RS-485 input
terminal. Refer to LT-6906 for end of line resistors to be used on
the first and last nodes of network. The RS-485 terminal consists
of + (positive), - (negative), and S (Shield) connections.
Ground Terminal
The Card Access system is equipped with a 16 gauge electrical
wire attached to the panel chassis Ground Terminal. Do not
disconnect this wire.
Attach the end of the supplied wire to a suitable grounding wire
16 gauge or thicker. Attach the other end to the cold water
ground.
for more information read the LT-6906 Card Access System Manual
available on USB flash drive or website
Address 4
ON
OFF
1 8
WWW.MIRCOM.COM
