Panel 1
First panel on network
120 Ω
Optional common
reference connection
if available
2.3.6

USB Port

The USB port provides a connection to a PC, for configuring the Aperio Door
Controller and downloading any new firmware.
2.4

Connecting the Inputs

Each Aperio Door Controller has eight general purpose inputs to accommodate
the different types of configurable functions associated with the inputs. For
additional details and a complete description of the different types of
configurable functions see section 3.6, Aperio Door Controller Inputs, on
page 81.
After the installation and setup is complete, the functional state of all inputs and
circuit supervision types must be configured using the TX3 Configurator
software. During configuration you can also establish correlations between
inputs and outputs.
Each input is configured according to:
•
•
TX3 Aperio Door Controller System Installation and Operation Manual
24
LT-1160 Copyright 2019
Panel 2
Connect shield to chassis
ground on one panel only

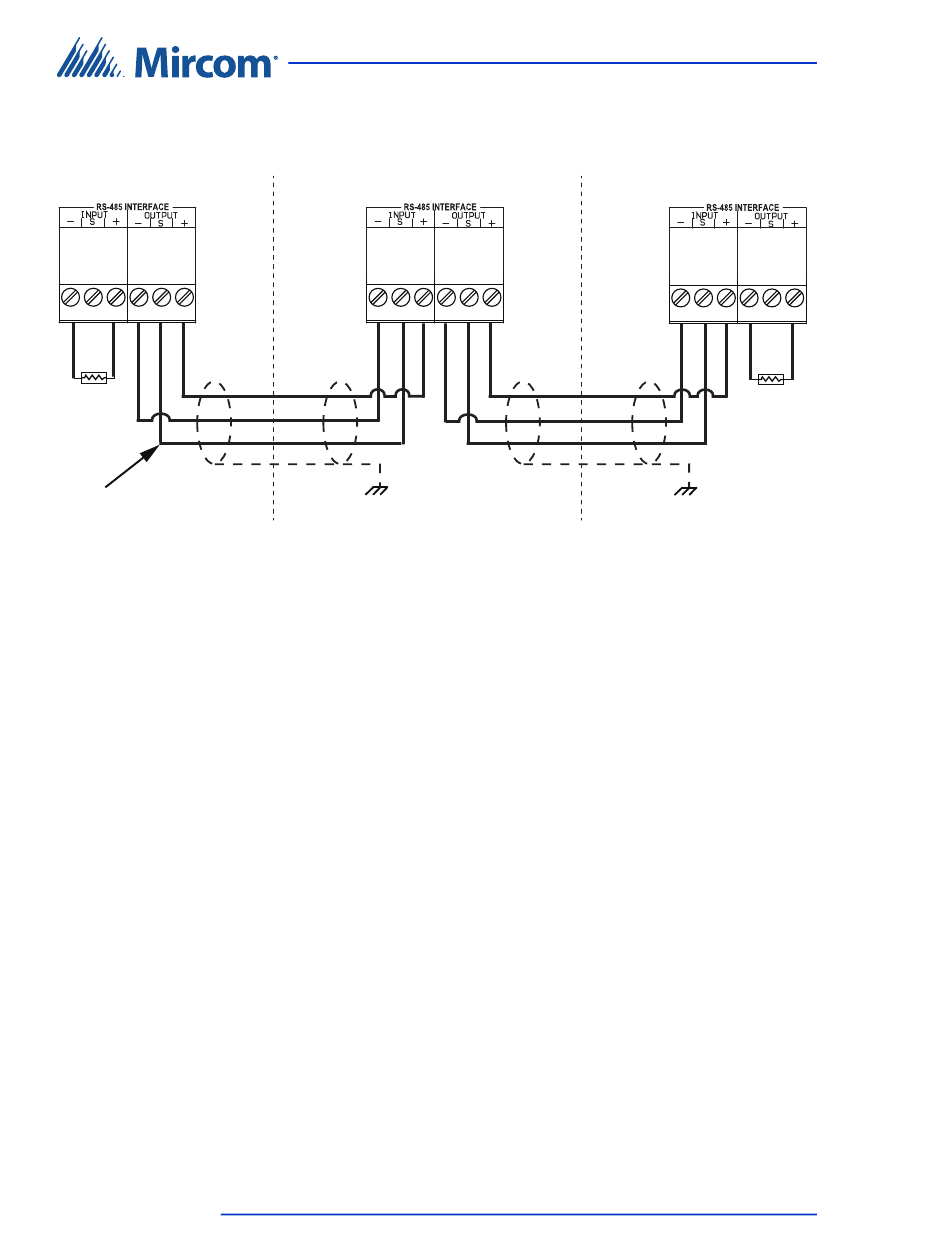

Figure 10. Inter-Panel RS-485 Wiring
active state
supervision requirement
Installation and Setup
Panel 3
Last panel on network
120 Ω
Connect shield to chassis
ground on one panel only
v. 1.6
