Mircom TX3 Card Access Installation Quick Reference

Inputs 1 to 8
Inputs 1 to 8 are programmable inputs. You may
configure each input for one of the following actions
or use the default values.
•
Request to Exit (reader A)
•
Request to Exit (reader B)
• Door sense (reader A)
• Door sense (reader B)
•
General purpose input

Card Reader Connections

WIEGAND #1
The diagram
shows a
connection
color scheme
DATA 0 COM(-)
RED GRN
for a Mircom
COM(-) DATA 1
BEEPER LED LED PWR+
reader.
Wht Blk
Brn Red Grn
Yel

Connections

USB. Computer connection for firmware download and
configuration.
P3. Connector for TX3-MDM Modem Board or RS-
485 to USB Adapter.
P5, P6. Battery connections.
P7. AC, Trouble and Alarm LEDs.

Jumpers

JW1. Leave open. Short only when updating firmware.
JW2. Leave open. Short only when updating firmware.
JW3. Leave open. Not used.
JW4. Leave open. Not used.
JW5. Leave open. Not used.
JW6. JW6 is not used and by default is open.
Version 1.2
LT-6026
SW1
SW1 sets the Telephone Access controller network address. Use
DIP switches 1 to 5 to set the network address. DIP switches 6, 7
and 8 should remain at the factory set values.
12V 12V
INPUT 1 INPUT 8 OUTPUT 7 OUTPUT 8
WIEGAND #1 WIEGAND #2
INPUT
DATA 0 DATA 0 COM(-)
RED GRN COM(-) RED GRN
BEEPER LED LED PWR+ COM(-) DATA 1 BEEPER LED LED PWR+ COM(-) DATA 1
Yel Red Grn Blk
- S +
Brn Wht

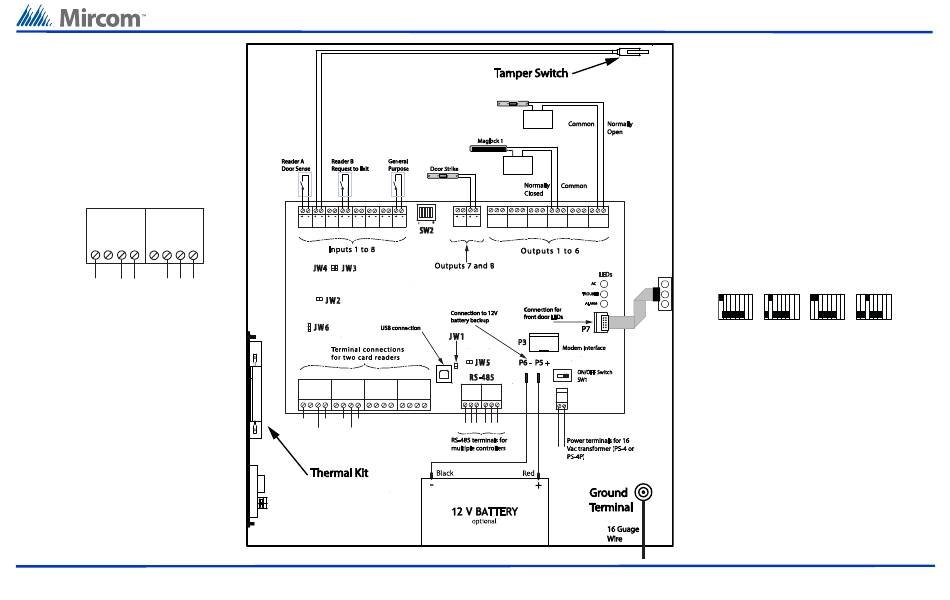

Card Access System Installation Quick Reference
Door Strike 1
External
power
supply
External
power
supply
NC C NO NC C NO NC C NO NC C NO NC C NO NC C NO
OUTPUT 1 OUTPUT 2 OUTPUT 3 OUTPUT 4 OUTPUT 5 OUTPUT 6
OFF ON
BAT- BAT+
OUTPUT
S +
-
TX3 Card Access Installation Quick Reference
Outputs 1 to 6
Outputs 1 to 6 are relay contact programmable normally open
(NO) or normally closed (NC) outputs. The supply for the Door
Strike or Maglock is not to exceed:
•
30 Vdc \ 3 amp
• 30 Vac rated \ 1 amp
Outputs 7 and 8
Outputs 7 and 8 are programmable and provide:
• 12 Vdc
•
a maximum output of 700 mA each, for a combined total
output of 1 A. For example, if output 7 provides 700 mA,
then output 8 provides 300 mA.
SW2
SW2 sets the Telephone Access controller network address. Use
DIP switches 1 to 6 to set the network address. Keep DIP switches
7 and 8 at the factory set values.
Address 1 Address 2 Address 3
1 8 1 8 1 8 1
RS-485
The RS-485 connection consis ts of an input and output terminal.
Connect the RS-485 output terminal to the RS-485 input terminal
of the next controller.
Connect the last controller on the network to the RS-485 input
terminal. Refer to LT-969 section 4.2.4 for end of line resistors to
be used on the first and last nodes of network. The RS-485
terminal consists of + (positive), - (negative), and S (Shield)
connections.

Ground Terminal

The Card Access system is equipped with a 16 gauge electrical
wire attached to the panel chassis Ground Terminal. Do not
disconnect this wire.
Attach the end of the supplied wire to a suitable grounding wire
16 gauge or thicker. Attach the other end to the cold water
ground.
for more information read the LT-980 Card Access System Manual
available on CD or WEB site
Address 4
ON
OFF
8
