Figure 23 The Aperio Hub Along With The Mounting Plate And Plaster Ring Used For Installing - Mircom TX3 Series Installation And Operation Manual

In addition to the Aperio hub, you will need a mounting plate and a plaster ring
(for square box assemblies). See Figure 23.
Through holes for
mounting to the
mounting plate
Aperio Hub
Note:
To install the Aperio hub
1.
2.
Note:
3.
4.
TX3 Aperio Door Controller System Installation and Operation Manual
v. 1.6
LT-1160 Copyright 2019
Through holes for
mounting to octagon
box assemblies
Mounting Plate

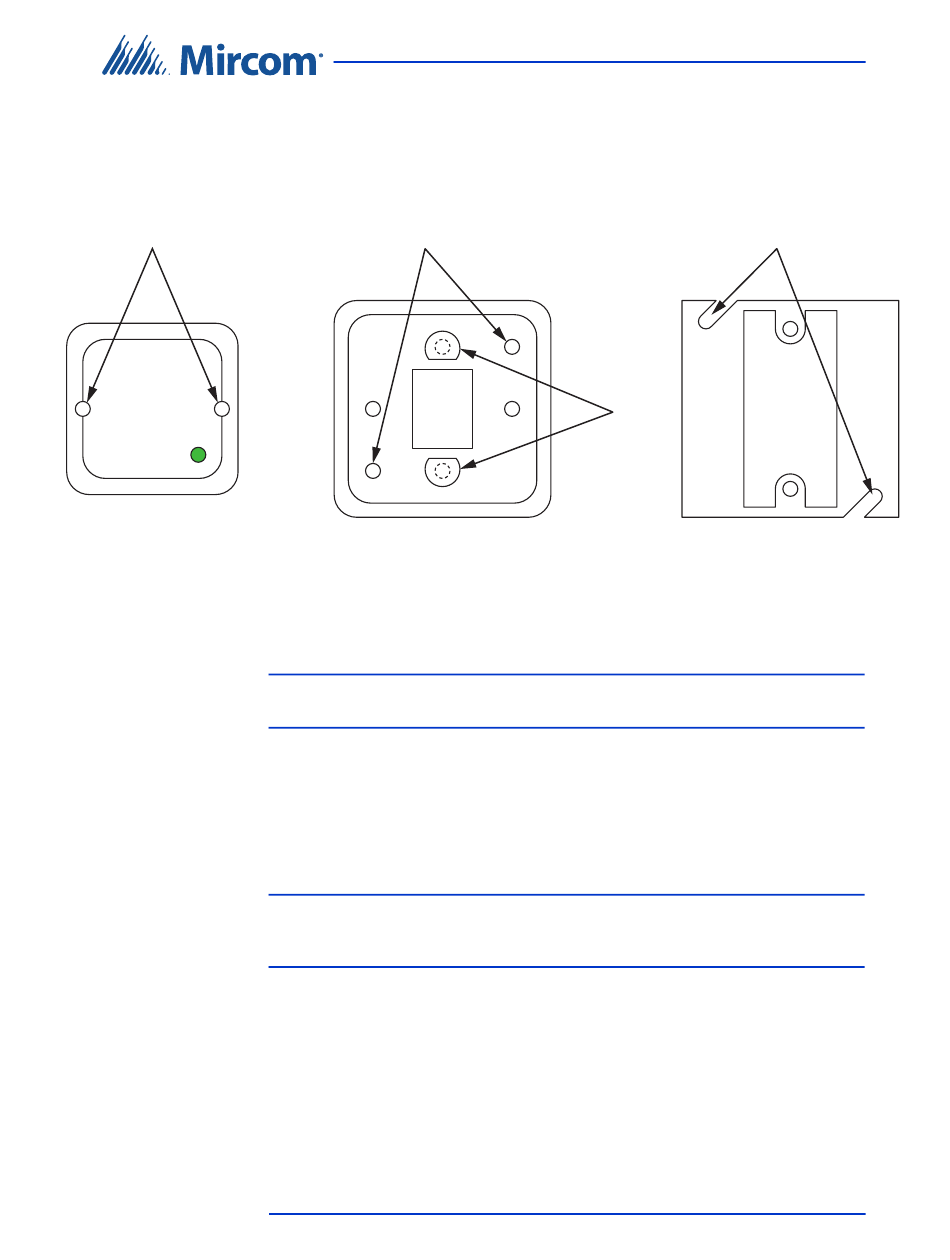

Figure 23. The Aperio hub along with the mounting plate and
plaster ring used for installing the Aperio hub on
standard box assemblies
Configure the Aperio hub, including all DIP switch settings,
network connections, and power connections, before installing it.
Remove the plugs from the mounting plate (see Figure 23).
Secure the mounting plate to the box assembly with two screws.
If you are installing onto a square box assembly, first secure the
plaster ring to the assembly using two screws (see Figure 23), and
then secure the mounting plate to the plaster ring.
Place the plugs over the through holes of the mounting plate.
Secure the Aperio hub to the mounting plate using two screws.
