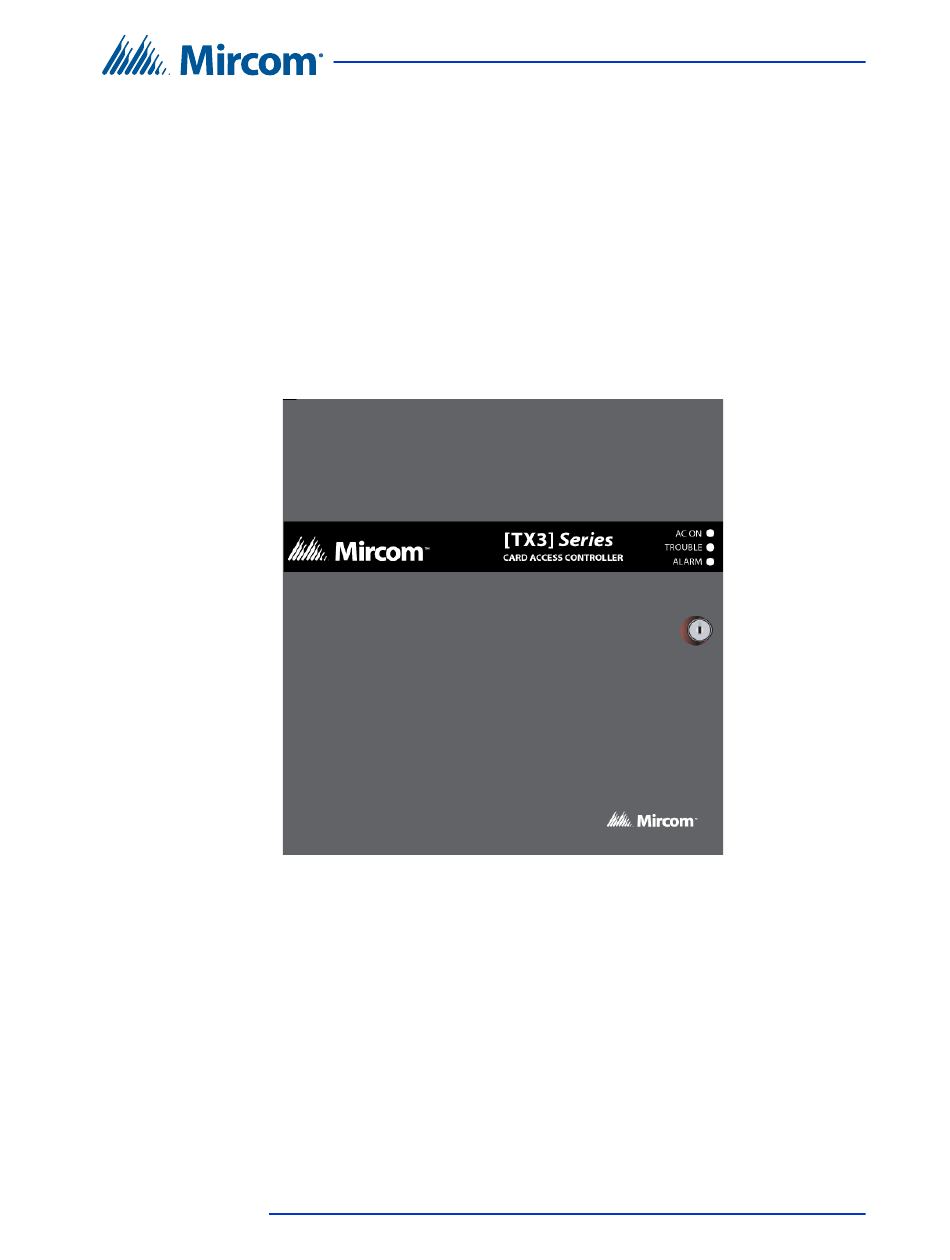

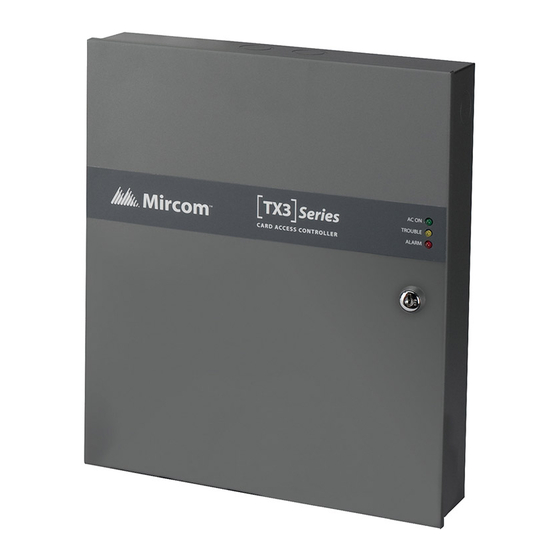

- Page 1 TX3 Series TX3-CX CARD ACCESS SYSTEM Installation and Operation Manual TX3-CX Card Access System Installation and Operation Manual Version 5.2 LT-980 Copyright June 2019...
- Page 2 Copyright June 2019 Mircom Inc. All rights reserved. Mircom TX3-CX Card Access System Installation and Operation Manual v.5.2 Microsoft, MS-DOS, Windows, and Windows 2000/NT/XP/Vista/7/8/10 are either registered trademarks or trademarks of Microsoft Corporation in the United States and/or other countries.
-
Page 3: Table Of Contents
Contents Welcome Introducing the TX3-CX Card Access System Applications Configurable Features Installer Responsibilities Network Setup About This Manual Contact Us Configurable Features Inputs Correlation Access Criteria Timers Schedules Holidays System Status Installation and Setup of the Card Access Controller Grounding the Card Access System Installing the Controller and Components Controller Board Description Connecting the Inputs... - Page 4 List of Figures Figure 1 Basic Card Access System Figure 2 Card Access System using an RS-485 network Figure 3 Card Access System using an Ethernet TCP/IP network Figure 4 Card Access System using both Ethernet and RS-485 networks Figure 5 Controller Back Cover Dimensions and Optional Component Location Figure 6...
-
Page 5: Welcome
Contact Us Introducing the TX3-CX Card Access System The TX3-CX Card Access System is part of the Mircom suite of products that provide building ready monitoring, control and integrated security solutions for use in the high end multi-tenant residential market. -
Page 6: Applications
Applications Mircom's Card Access System consists of a controller, two card readers and configuration software. The controller can accept at the same time, a combination of card readers with different formats to control two access points or doors. -
Page 7: Configurable Features
Welcome The Card Access System integrates with the TX3 Telephone Access system by utilizing a common network for both Telephone Access and Card Access Systems. A PC provides configuration and on-line monitoring of the Card Access System and the Telephone Access System status. Once the system is configured, the PC is not required. -
Page 8: Figure 1 Basic Card Access System
Welcome The TX3 Configurator software can connect to any of these network configurations. How you connect to the network (that is, through TCP/IP, USB, a modem, or the COM port) determines what devices you can configure on the network using the TX3 Configurator. The different network configurations are explained in the rest of this section. - Page 9 Welcome IP network are called Master Nodes. If you connect to the TCP/IP network with the TX3 Configurator, you can connect to and configure any of the Master Nodes on the Ethernet TCP/IP network. If you connect directly to one of the Master Nodes using USB, a modem, or a COM port, you will be able to configure that device but not any other device.
- Page 10 Welcome Figure 4 shows a Card Access System using an Ethernet network with RS-485 subnetworks. The Card Access Controllers connecting to a Master Node’s RS-485 subnetwork are Slave Nodes to the Master Node. Each RS-485 subnetwork can have up to 63 controllers connected to it; you can still have more than 63 Master Nodes connected to the Ethernet network.
-
Page 11: About This Manual
TX3-CX-2-A IP Capable Two Door Card Access Controller (non-UL listed version) • TX3-BBCX-4W Cabinet 1.6.1 Additional Documentation For additional documentation, see the following Mircom literature: • LT-6618 TX3-CX-1 Installation Manual • LT-969 TX3 Telephone Access System Installation and Operation Manual •... -
Page 12: Contact Us
CAU. Card Access Unit ERU. Elevator Restriction Unit LCU. Lobby Control Unit Contact Us 1.7.1 Canada and USA Toll Free: 1-888-660-4655 Local: 905-660-4655 Fax: 905-660-4113 1.7.2 Website http://www.mircom.com TX3-CX Card Access System Installation and Operation Manual Version 5.2 LT-980 Copyright 2019... -
Page 13: Configurable Features
Configurable Features This chapter describes all the configurable features and their modes of operation, and provides you with detailed information to let you configure the system using the Configurator software. For details on using the Configurator, see LT-995 TX3 Configuration and Administration Manual. -
Page 14: Correlation
Configurable Features 2.1.2 Door sense for reader A or B When the door is open this input is active and when the door is closed the input is inactive. This input: • senses if the door ever opened after it was unlocked as a result of access being granted. - Page 15 Configurable Features 2.2.2 Events Events are defined by the following inputs and reader states: • Access is granted (from Reader A or B) • Access is denied (from Reader A or B) • Forced entry alarm (from Reader A or B) •...
-
Page 16: Access Criteria
Configurable Features 2.2.6 Duration The duration of the action is specified in minutes and seconds, or indefinitely. 2.2.7 Schedule The schedule lets you specify when correlated events take effect. Access Criteria If connected to a PC, the Configurator software monitors the functional state of inputs from all panels and devices, and senses the status of connected components. - Page 17 Configurable Features • Card options 2.3.1 Lock / Unlock An access point has one of the following lock status modes: Lock Mode. When in lock mode the door is normally locked. Any valid access card unlocks the door for the duration of a specified time interval according to: •...
- Page 18 Configurable Features • if an access card with high security privilege is swiped four times in succession, the mode toggles between high security on to high security off • the Configurator software can change the mode from high security on to high security off or from high security off to high security on •...
- Page 19 Configurable Features 2.3.7 Temporary card This type of card can be created by placing a usage counter on the card. Each time the card is used, the usage counter is reduced by one. When the usage number reaches zero, access is denied. A usage counter of 255 indicates there is no restriction on use.
- Page 20 36-bit Keyscan C15001 • 37-bit Cansec • 37-bit HID 10304 • 37-bit Mircom • 39-bit Kantech XSF • 50-bit RBH Send real time logs. If enabled, only the real time logs are sent to the PC. Interlock feature. If enabled, door B cannot be unlocked until door A is locked and closed.
- Page 21 Configurable Features Disable forced entry alarm. If this option is enabled, the forced entry alarm does not activate even if the door is opened without permission. Instead, access is granted. This is usually used on access points where there is no request to exit (RTE) device.
- Page 22 Configurable Features Timed Anti-passback. When enabled access is not permitted at the same access point for a specific amount of time specified by the anti-passback timer. 2.3.12 Card options Access cards are configured for the following features: Usage counter. The usage counter is used for temporary cards. The usage counter can be given any value from 1 to 255.
-
Page 23: Timers
Configurable Features Timers The following types of timers are associated with the Card Access System operation: • Unlock time • Extended unlock time • Anti-passback • Door held open warning • Door held open alarm 2.4.1 Timer schedule Events are scheduled as Always, Never, or administrator defined. Timed access adheres to a schedule as follows: Auto-unlock schedule. -
Page 24: Schedules
Configurable Features 2.4.5 Door held open warning The door held open warning timer starts when access is granted. When the door unlock timer expires and the door does not close during this interval a ‘door held open’ warning is issued to the PC and the common trouble status becomes active. If the door closes during this interval, the timer resets and no warning report is sent to the PC. -
Page 25: Holidays
Configurable Features • PIN required schedule • Access levels Holidays Up to 128 holidays can be entered in the system. Each holiday consists of the following: • start time/date • end time/date If a holiday falls on the same date each year it can also be programmed as an annual event. -
Page 26: Installation And Setup Of The Card Access Controller
Installation and Setup of the Card Access Controller This chapter describes the installation and setup of the controller and card reader. This chapter explains • Grounding the Card Access System • Installing the Controller and Components • Controller Board Description •... -
Page 27: Installing The Controller And Components
Installation and Setup of the Card Access Controller Installing the Controller and Components The Card Access Controller surface mounts with four screws as shown in figure 5. The back cover is 12 inches wide by 14 inches long. The top two mounting holes are 10 inches apart. - Page 28 Installation and Setup of the Card Access Controller 3.2.2 Installing the Card Access Controller The Card Access Controller enclosure mounts directly on the wall to the wall stud using the mounting screws locations as shown in figure 5. To mount the card reader Find a suitable location for the enclosure beside a wall stud.
-
Page 29: Figure 6 Modem Board Location
Installation and Setup of the Card Access Controller 3.2.4 Installing the modem The TX3-MDM Modem Module is designed to work only with Note: POTS (plain old telephone system) lines. Install the optional TX3-MDM Modem Module in the location shown in figure 6. -
Page 30: Figure 7 Ip Module Board Location
Installation and Setup of the Card Access Controller 3.2.5 Installing the TX3-IP Module The optional TX3-IP IP Module kit comes with the IP Module which allows a Card Access Controller to connect to an Ethernet TCP/IP network as a Master Node. -
Page 31: Figure 8 Rs-485 Add-On Module
Installation and Setup of the Card Access Controller 3.2.6 Installing the TX3-USB-AD Kit The TX3-USB-AD Kit converts RS-485 signals to USB. Install the included RS- 485 Add-On Module in the location shown in figure 6 using the supplied four screws. The RS-485 Add-On Module ribbon cable connects to the P3 connector on the controller board. -
Page 32: Controller Board Description
Installation and Setup of the Card Access Controller Controller Board Description The Card Access System controls access points according to how the inputs and outputs are defined and correlated with each other. Inputs and outputs are defined by how the access and control points are wired with the controller. Before you begin you must establish how you want the outputs to behave as a function of the inputs. -
Page 33: Figure 9 Controller Board Connection Locations
Installation and Setup of the Card Access Controller 8 input terminals 2 voltage 6 dry relay contact output terminals output relays USB connection for Connection to 12V PC configuration battery backup Connection for front door LEDs Terminal connections for two card readers RS-485 terminals for Power terminals for multiple controllers... -
Page 34: Figure 10 Power Supply Connection
Installation and Setup of the Card Access Controller 3.3.3 Power Supply The power supply connection is situated at the bottom right of the main controller board and receives 16 VAC, 40 VA. Use 18 AWG wiring. An external PS-4 or PS-4P plug-in transformer connects to the power terminals. - Page 35 Installation and Setup of the Card Access Controller 3.3.5 RS-485 An RS-485 terminal lets you easily connect multiple Telephone and Card Access Controllers across a network. The RS-485 connection is situated at the bottom middle of the main controller board and consists of two separate terminals, each for an input and output.
-
Page 36: Figure 12 Rs-485 Wiring For Tx3-Cx-2K-A
Installation and Setup of the Card Access Controller Panel 1 Panel 3 Panel 2 First panel on network Last panel on network 120 Ω 120 Ω Optional common Connect shield to chassis Connect shield to chassis reference connection ground on one panel only ground on one panel only if available Figure 12. -
Page 37: Figure 14 Rs-485 Wiring For Tx3-Cx-6K-A
Installation and Setup of the Card Access Controller Panel 1 Panel 3 Panel 2 First panel on network Last panel Controller 1 Controller 2 Controller 3 on network 3” wires 22” wires 120 Ω 120 Ω Optional common Optional common Connect shield to chassis Connect shield to chassis reference connection... -
Page 38: Connecting The Inputs
Installation and Setup of the Card Access Controller Connecting the Inputs Each Card Access Controller has eight inputs to accommodate the different types of configurable functions associated with the inputs. For additional details and a complete description of the different types of configurable functions see section 2 on page 13. -
Page 39: Figure 17 Input Terminal Sample Connections
Installation and Setup of the Card Access Controller Reader A Reader B General Door Sense Request to Exit Purpose INPUT 1 INPUT 8 8 Input Terminals Figure 17. Input Terminal Sample Connections 3.4.2 Request to Exit Activation of this input unlocks the door and starts the door unlock timer. 3.4.3 Door sense When the door is open this input is active and when the door is closed the input is... -
Page 40: Figure 18 Input - Supervised For Open
Installation and Setup of the Card Access Controller 3.4.6 Supervision requirement Each input is configured for a specific type of supervision depending on your particular installation requirements as follows: • no supervision • supervise for open • supervise for short •... -
Page 41: Figure 19 Input - Supervised For Short
Installation and Setup of the Card Access Controller 3.4.6.3 Supervised for short When configured as supervised for short, the active state is open. A single 47K ohm resistor is required for short supervision. Active when open Figure 19. Input - Supervised for Short The active state cannot be a short state. -
Page 42: Connecting The Outputs
Installation and Setup of the Card Access Controller Connecting the Outputs There are 8 outputs located on the top right hand corner of the Card Access Controller as shown in figure 9. Each output is wired for a specific function or for an active state. Determine the functional requirements for the device and connect the outputs accordingly. -
Page 43: Figure 21 Controller Output Terminal Sample Connections
Installation and Setup of the Card Access Controller 3.5.3 Outputs 1 to 6 Outputs 1 to 6 are relay contact programmable outputs with the following characteristics. Figure 21 shows a sample connection. • normally open (NO) • normally closed (NC) available •... -
Page 44: Connecting The Card Reader
Figure 22. Outputs 7 and 8 Sample Connections Figure 22 shows a door strike activated and powered by output 8. Connecting the Card Reader The card readers are part of the Mircom Card Access package. The cards are produced by Mircom.The controller supports two card readers. 3.6.1 Card Reader Requirements Mircom provides several multi protocol proximity card readers. -
Page 45: Figure 23 Controller Board Card Reader Connectors
DATA1 Black COM(-) Card readers supplied by Mircom require a foil shielded multiple conductor stranded cable, at least 22 AWG. For example, use Belden 9535 or a similar cable. The black wire can be connected to either COM (-) connector on the terminal block. -
Page 46: Setting Dip Switches Sw2
Installation and Setup of the Card Access Controller For other brands of card readers, follow the instructions in the manual for the card reader. Some card readers treat the green and red LED connections Note: differently. You might need to switch the green and red LED connections for the LED to work properly. -
Page 47: Figure 24 Location Of Jumpers Jw1 To Jw8 And Switches Sw1
Installation and Setup of the Card Access Controller See section 4 on page 51 for the DIP switch settings for RS-485 network addressing. DIP Switch 7 is not used and should remain at the default setting Note: (OFF). DIP Switch 8 determines how the IP address is assigned to the IP Note: Module for IP enabled Card Access Controllers. -
Page 48: Setting Jumpers
Installation and Setup of the Card Access Controller Setting Jumpers There are six pre-set jumpers on the controller board as follows (refer to figure 24): JW1. JW1 is used for updating firmware and by default is always open. JW2. JW2 is used for updating firmware and by default is open. See section 3.10 on page 49. -
Page 49: Updating Firmware
Refer to LT-995, TX3 Configuration and Administrator Manual, for instructions on how to perform both of these firmware upgrade methods. LT-995 can be found on the TX3 Configurator Software installation CD, the USB flash drive, or on the Mircom website. 3.10.1 Firmware Version Control The firmware version number is accessible from the Configurator software and changes whenever there is a major, minor or revision update. - Page 50 Installation and Setup of the Card Access Controller For a complete description of the configuration and on how establish a connection to the Card Access Controller using a USB, Ethernet, COM port or modem connection, see the following documentation: • LT-995 TX3 System Configuration and Administration Guide •...
-
Page 51: Appendix: Rs-485 Addresses
Appendix: RS-485 Addresses Table 3: SW2 DIP Switch Settings for RS-485 Network Addressing ADDRESS SWITCH 1 SWITCH 2 SWITCH 3 SWITCH 4 SWITCH 5 SWITCH 6 TX3-CX Card Access System Installation and Operation Manual Version 5.2 LT-980 Copyright 2019... - Page 52 Appendix: RS-485 Addresses Table 3: SW2 DIP Switch Settings for RS-485 Network Addressing (Continued) ADDRESS SWITCH 1 SWITCH 2 SWITCH 3 SWITCH 4 SWITCH 5 SWITCH 6 TX3-CX Card Access System Installation and Operation Manual Version 5.2 LT-980 Copyright 2019...
- Page 53 Appendix: RS-485 Addresses Table 3: SW2 DIP Switch Settings for RS-485 Network Addressing (Continued) ADDRESS SWITCH 1 SWITCH 2 SWITCH 3 SWITCH 4 SWITCH 5 SWITCH 6 TX3-CX Card Access System Installation and Operation Manual Version 5.2 LT-980 Copyright 2019...
-
Page 54: Tx3-Cx-2 Power Supply And Battery Calculations
TX3-CX-2 Power Supply and Battery Calculations Use the forms below to determine the required secondary power supply (batteries). Enter values in the shaded areas. Table 4: Standby Current Total Standby Model Number Standby (amperes) TX3-CX-2 = 0.5 (A) ** Output 7 (B) ** Output 8 Total standby current (add above currents) -
Page 55: Total Current For Door Lock
TX3-CX-2 Power Supply and Battery Calculations Total Current for Door Lock Enter values in the shaded areas. Table 6: Total Current for Door Lock Total door open time Number of hours Standby for Total current for per hour the panel must run outputs 7 and 8 door lock (Ah) (from Table 5) -
Page 56: Warranty & Warning Information
Companies are not to be used as a fire, alarm, or life-safety system. NOTE TO INSTALLERS: All Mircom Systems have been carefully designed to be as effective as possible. However, there are circumstances where they may not provide protection. Some reasons for system failure include the following. - Page 57 Best practices and local authority having jurisdiction determine the frequency and type of testing that is required at a minimum. Mircom System may not function properly, and the occurrence of other system failures identified below may not be minimized, if the periodic testing and maintenance of Mircom Systems is not completed with diligence and as required.
- Page 58 Battery Failure. If the Mircom System or any device connected to the system operates from batteries it is possible for the batteries to fail. Even if the batteries have not failed, they must be fully charged, in good condition, and installed correctly.
- Page 59 Integrated Products. Mircom System might not function as intended if it is connected to a non-Mircom product or to a Mircom product that is deemed non-compatible with a particular Mircom System. A list of compatible products can be requested and obtained.
- Page 60 Warranty & Warning Information Warranty Purchase of all Mircom products is governed by: https://www.mircom.com/product-warranty https://www.mircom.com/purchase-terms-and-conditions https://www.mircom.com/software-license-terms-and-conditions TX3-CX Card Access System Installation and Operation Manual Version 5.2 LT-980 Copyright 2019...
-
Page 61: Special Notices
Special Notices Product Model Number: TX3 Complies With Federal Communications Commission (FCC): • CFR 47, Part 15, Subpart B, Class B • Unintentional Radiators Industry Canada (IC): • ICES-003, ISSUE 4, CLASS B • Verification Authorization - Digital Apparatus Registration Numbers FCC (U.S.): 1M8TE00BTX3 IC (Canada): 1156A-TX3 TX3-CX Card Access System Installation and Operation Manual...
