Figure 37 The Job Detail Configuration Window - Mircom TX3 Series Installation And Operation Manual

3.1.1.2 Creating a New Job by Reading the Panels on the Network
If your Aperio Door Controller is connected with other TX3 panels, the TX3
Configurator can connect to your TX3 system, read all of the panels in the
system, and then create a new job with all of your panels in it. In order to do this,
all of the following conditions must be true.
•
•
•
Information on setting the RS-485 address for an Aperio Door Controller panel
can be found in section 2.8, Setting the DIP Switches on Switch SW2, on
page 57. Information about the different TX3 network configurations can be
found in section 1.5, Network Setup, on page 12. To configure other TX3 panels
(such as the Touch Screen or the Lobby Control Unit), refer to the appropriate
installation and operation manual.
TX3 Aperio Door Controller System Installation and Operation Manual
68
LT-1160 Copyright 2019

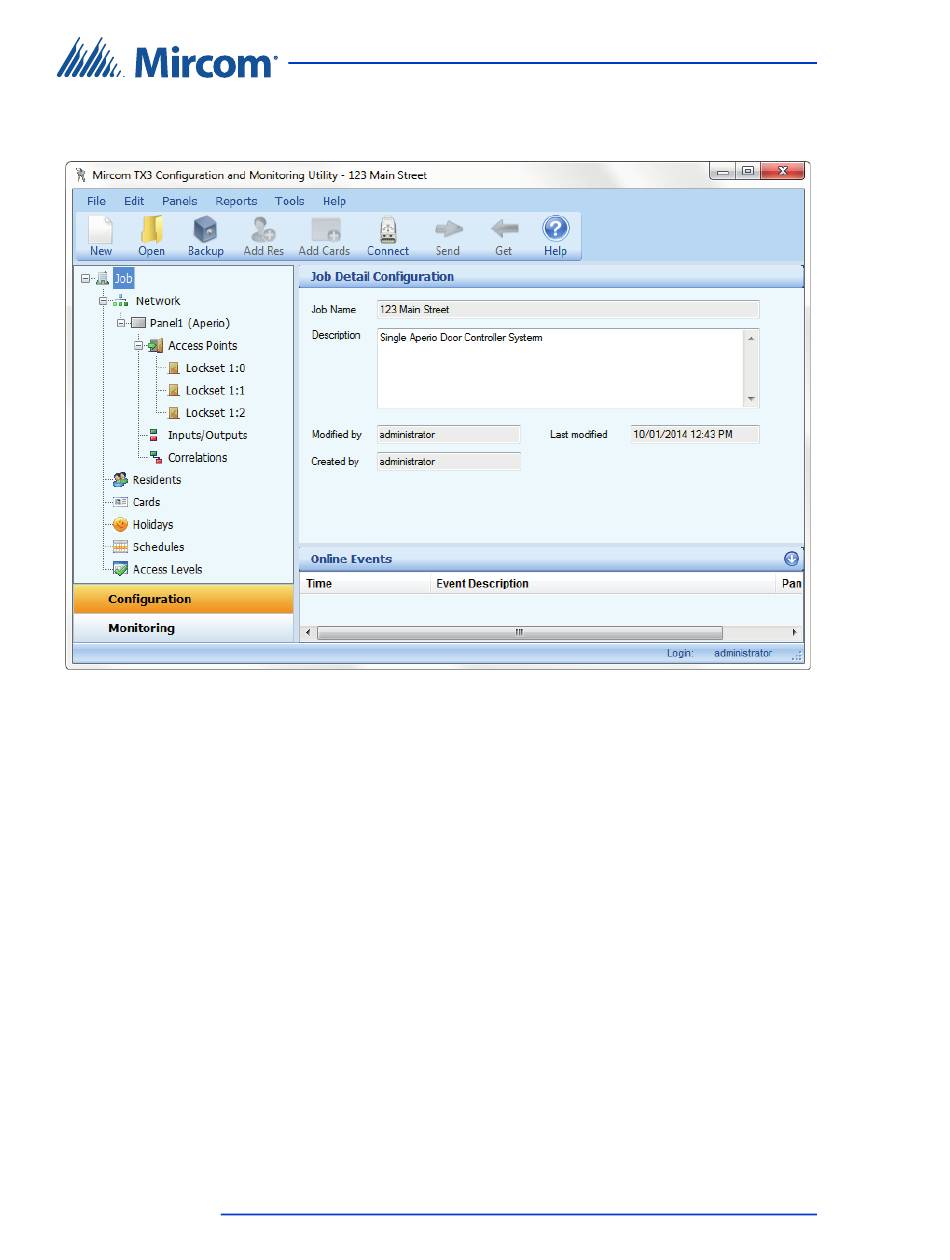

Figure 37. The Job Detail Configuration window
All of the panels must be powered on.
Each panel on an RS-485 network or subnetwork must have a unique
address.
There can only be one Master Node connected to an RS-485 subnet-
work.
