Note:

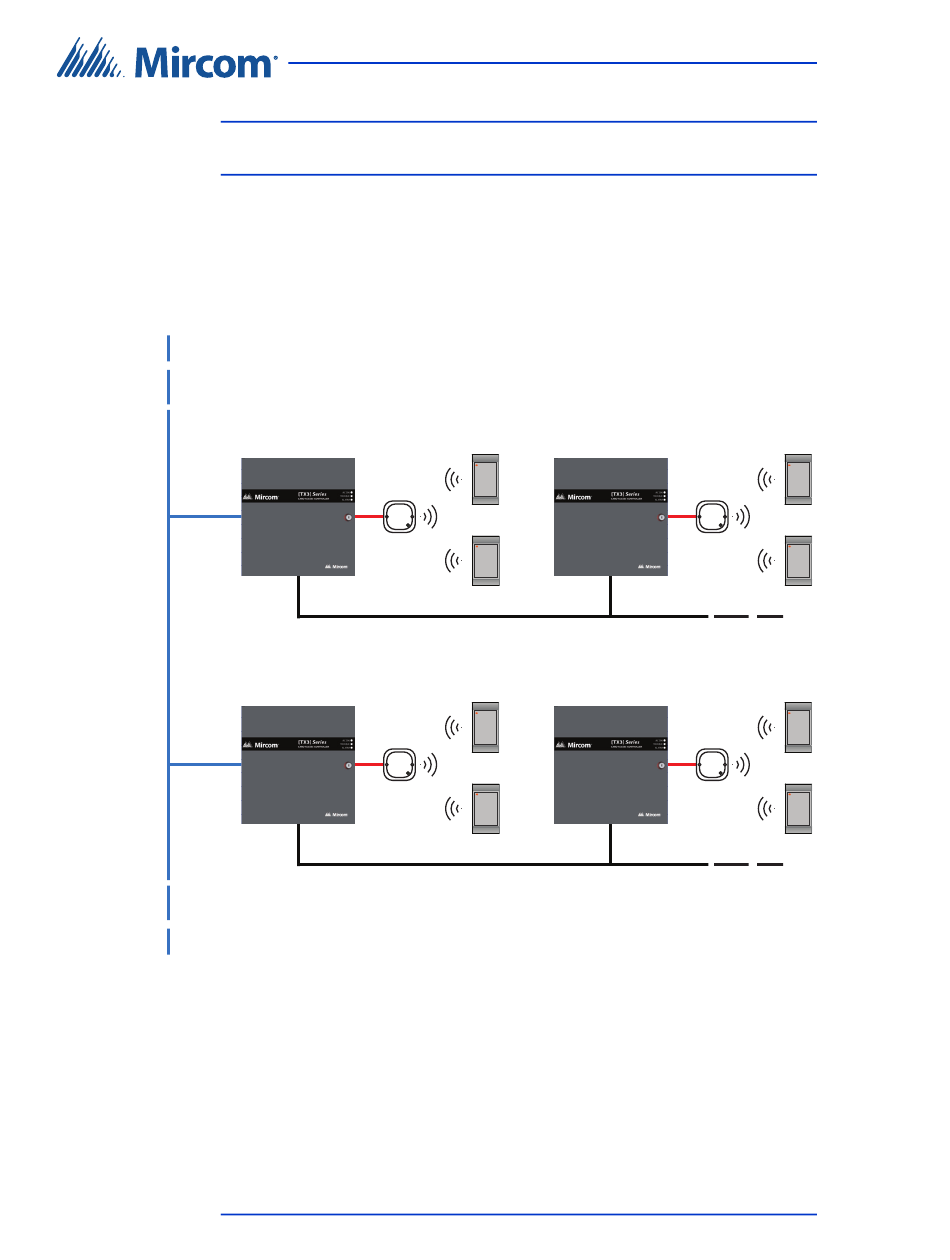

Figure 4 shows an Aperio Door Controller System using an Ethernet network
with RS-485 subnetworks. Devices connecting to a Master Node's RS-485
subnetwork are Slave Nodes to the Master Node. Each RS-485 subnetwork can
have up to 63 controllers connected to it; you can still have more than 63 Master
Nodes connected to the Ethernet network.
Ethernet Network
If you connect to the Ethernet network using the TX3 Configurator software, you
can configure any of the nodes in the system. If you connect directly to a
controller using USB, a modem, or the COM port, you will only be able to
configure controllers that are on the same RS-485 subnetwork as that controller.
TX3 Aperio Door Controller System Installation and Operation Manual
14
LT-1160 Copyright 2019
In order for an Aperio Door Controller to be a Master Node it must
have the optional TX3-IP IP Module installed.
Aperio Door Controller
(Master Node)
Aperio Hub
RS-485 Subnetwork
Aperio Door Controller
(Master Node)
Aperio Hub
RS-485 Subnetwork
Figure 4. Aperio Door Controller System using an Ethernet
network with RS-485 subnetworks
Aperio Door Controller
(Slave Node)
Lockset 0
Lockset 1
Aperio Door Controller
(Slave Node)
Lockset 0
Lockset 1
Welcome
Lockset 0
Aperio Hub
Lockset 1
Lockset 0
Aperio Hub
Lockset 1
