4. Mount the camera on two posts and secure it with the included nuts.
Nuts

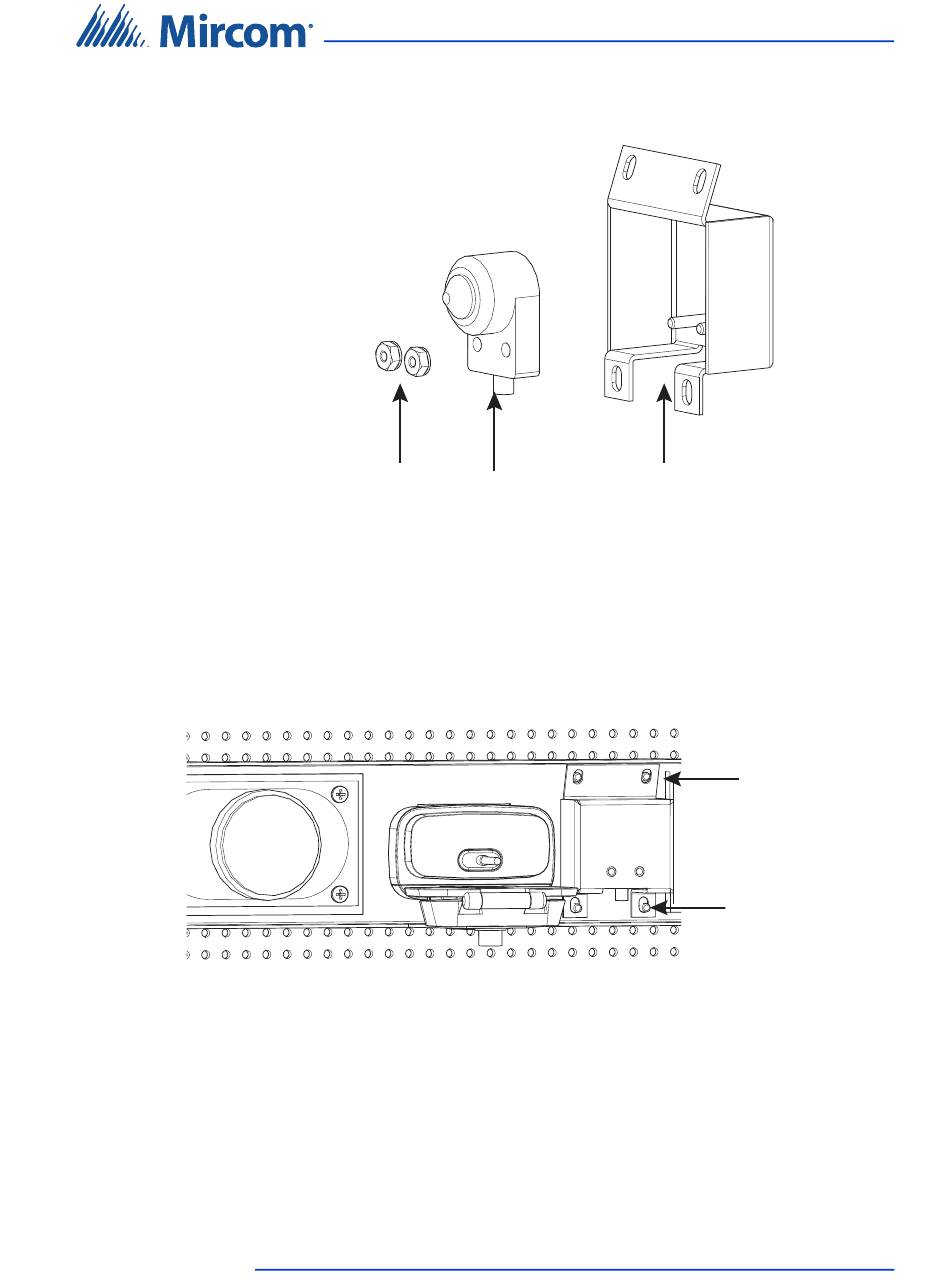

Figure 83. Mounting the IP camera in the bracket
The camera bracket can be mounted in the door in three ways.
Mount the bracket as shown in Figure 84 with the nuts on top so that the
camera faces down.
Mount the bracket as shown in Figure 84 with the nuts on bottom so that
the camera faces straight ahead
Figure 84. Mounting the camera bracket
TX3 Touch Screen Installation Manual
IP camera Bracket
Touch Screen System and Setup
Put nuts here to
face the camera
downwards
Put nuts here to
face the camera
straight ahead
97
