Figure 30 Tx3-T-Kiosk2 Components - Mircom TX3 Series Installation Manual

•
•
•
•
•
Weight: 65.5 lb (30 kg)
You need:
•
1.
2.
48 TX3 Touch Screen Installation Manual
1 x floor bracket
8 x screws for attaching the stand to the floor bracket
8 x screw covers
8 x screw bases
6 x screws for attaching the Touch Screen to the stand
4 bolts to attach the base plate to the floor. The bolts need to fit holes that
are 13/32" (10 mm) in diameter.

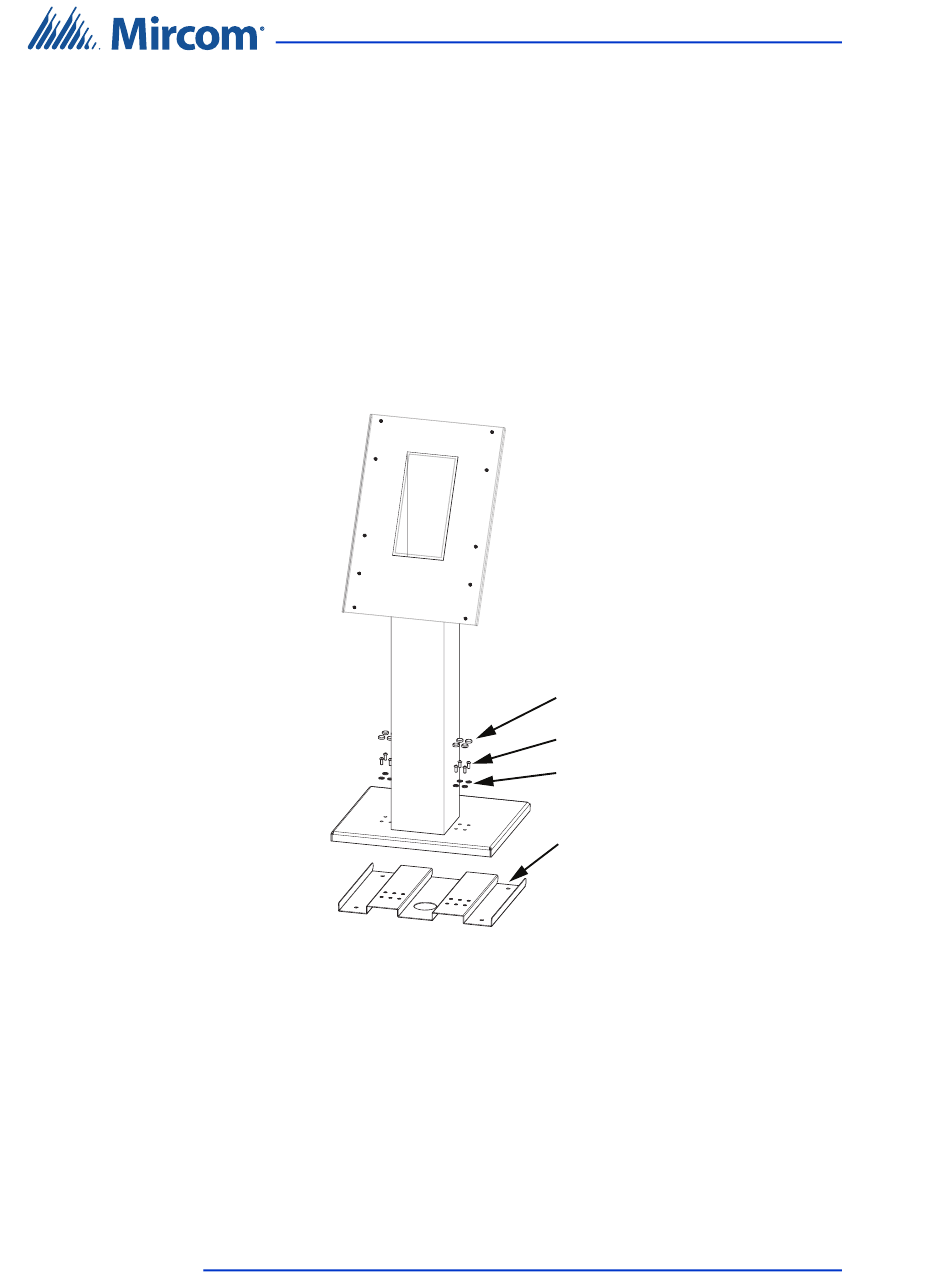

Figure 30. TX3-T-KIOSK2 components
Ensure that the base plate is aligned with the electrical conduit.
Using the base plate as a template, trace an opening on the floor for the
cutout and mark the 4 floor bracket mounting hole locations.
Screw covers (x8)
Screws (x8)
Screw bases (x8)
Floor bracket
Installation
