2.
Attention: The 22" Touch Screen enclosure is heavy. Never attempt to lift this
3.
44
TX3 Touch Screen Installation Manual
Secure the stand onto the base plate using the screw cover bases, screws,
and screw covers as show in Figure 26.

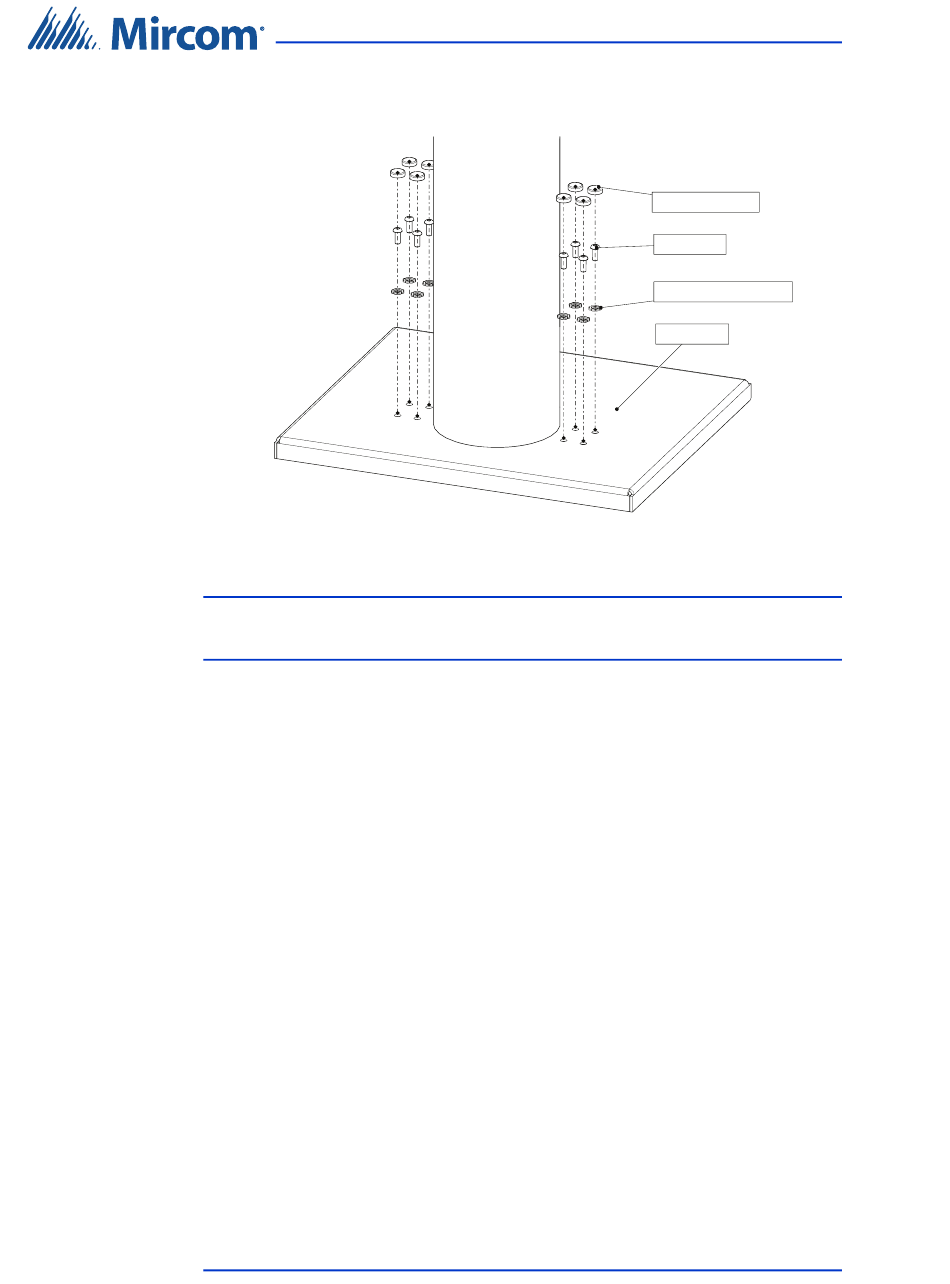

Figure 26. Attach the stand to the base plate
product by yourself. At least two people should lift it together.
Fit the Touch Screen on the six posts on the stand.
Installation
Screw cover (x8)
Screw (x8)
Screw cover base (x8)
Base plate
