To fit the TX3-T-KIOSK stand on the base plate
1.
Fit the back lip of the stand into the notches in the base plate, and tilt the
stand forwards so that it rests on top of the base plate.

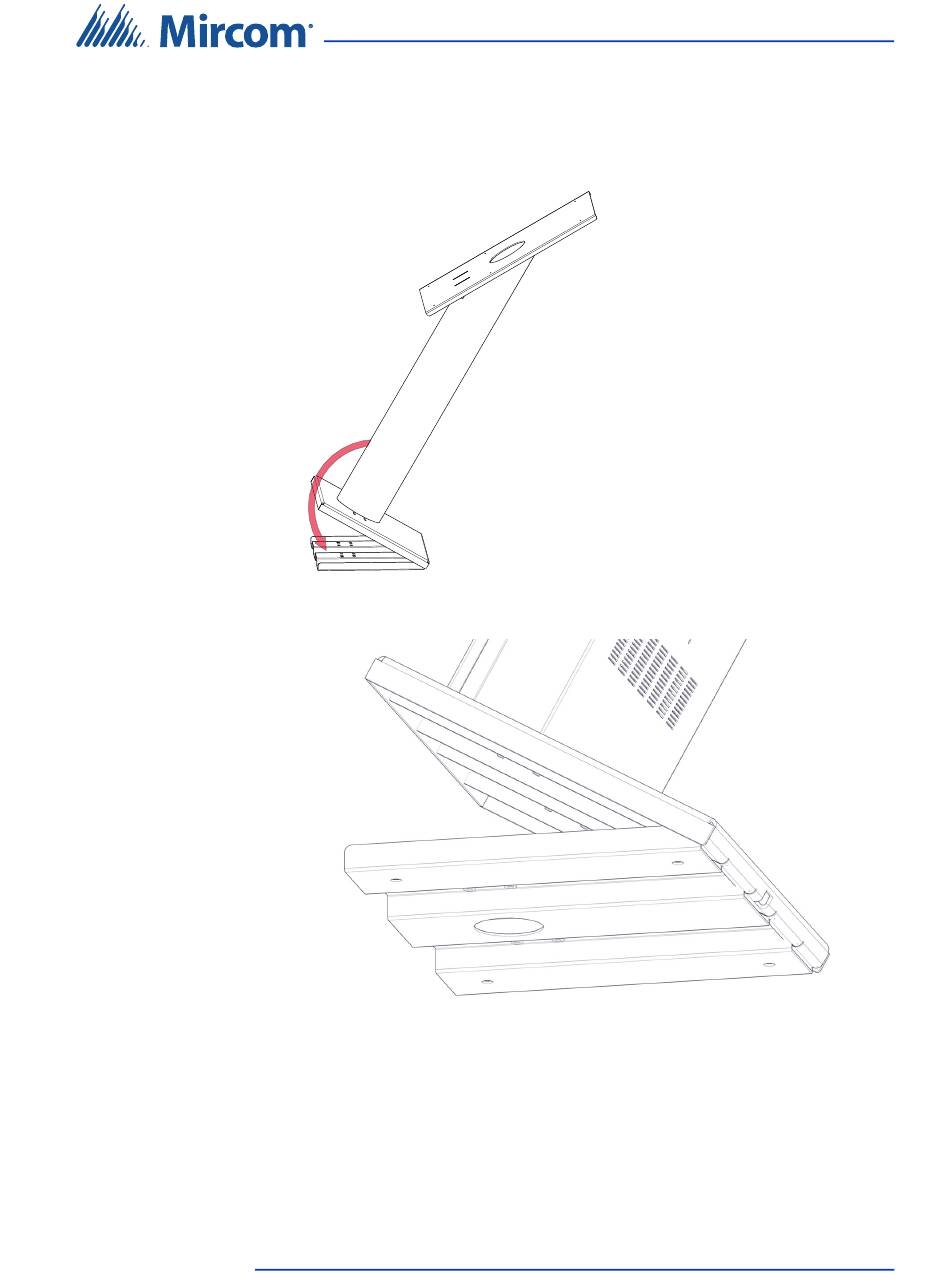

Figure 24. Fit the stand on the base plate
Figure 25. Fit the stand on the base plate (from below)
TX3 Touch Screen Installation Manual
Installation
43
