1 base plate
•
8 #1/4-20 NC screws for attaching the stand to the base plate
•
8 screw covers
•
8 screw cover bases
•
6 #8-32 nuts for attaching the Touch Screen to the stand
You will need:
•
4 bolts to attach the base plate to the floor. The bolts need to fit holes that
are 0.406" in diameter.

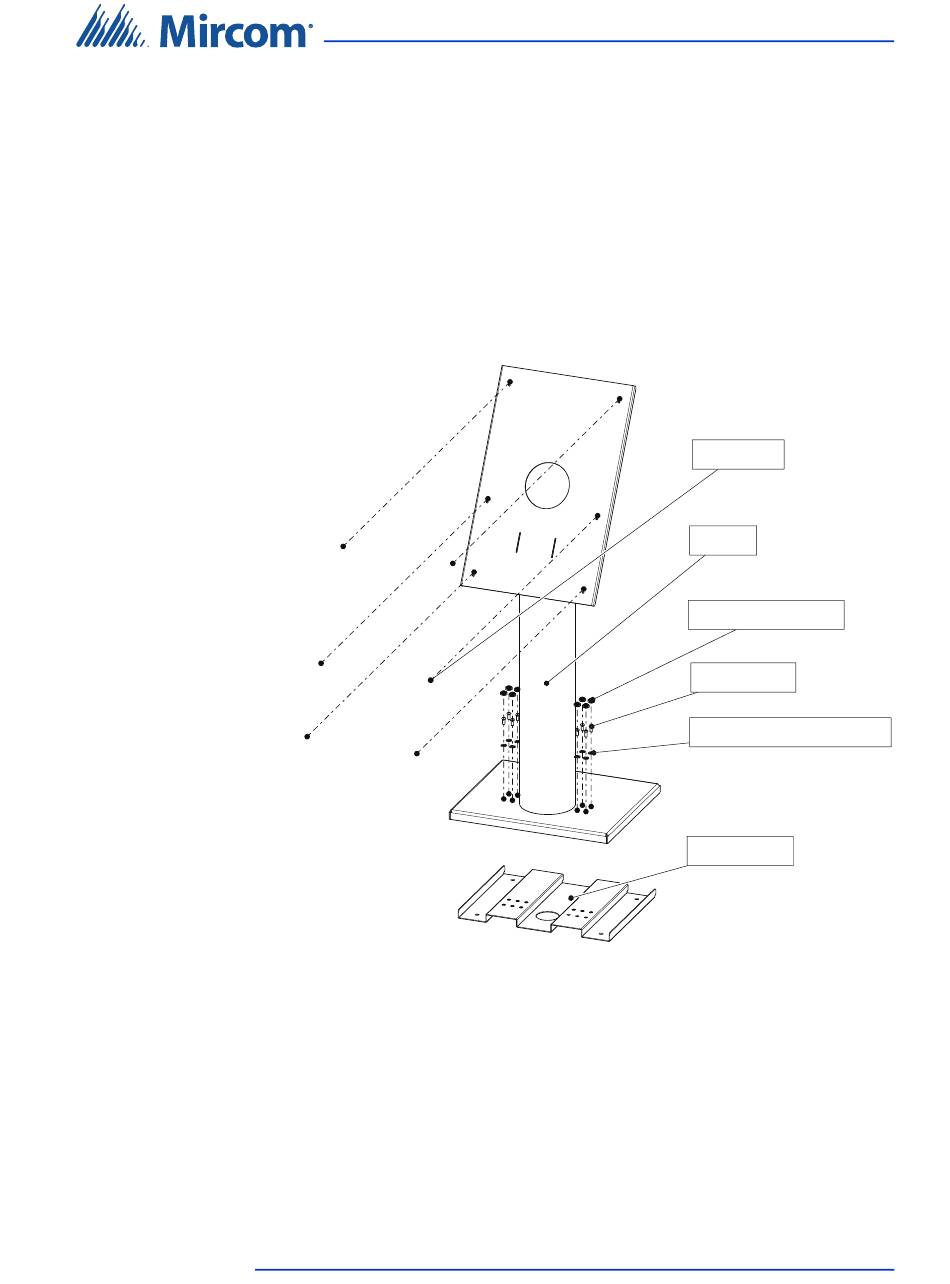

Figure 21. TX3-T-KIOSK Components
1.
Ensure that the base plate is aligned with the electrical conduit.
TX3 Touch Screen Installation Manual
Installation
Nuts (x6)
Stand
Screw cover (x8)
Screw (x8)
Screw cover base (x8)
Base plate
41
