Installing the P1264 IP camera

You can install a P1264 IP camera in the following models:
•
•
•
•
•
•
To install the IP camera
1.
2.
3.
96 TX3 Touch Screen Installation Manual
TX3-TOUCH-S22(-C/D)
TX3-TOUCH-F22(-C/D)
TX3-TOUCH-S15-B/C/D
TX3-TOUCH-F15-B/C/D
TX3-TOUCH-S15B-WR
TX3-TOUCH-S15S-WR
Shut down the Touch Screen and disconnect the power.
Open the Touch Screen door.
The IP camera is installed in the top center of the door, as shown in Figure
82.

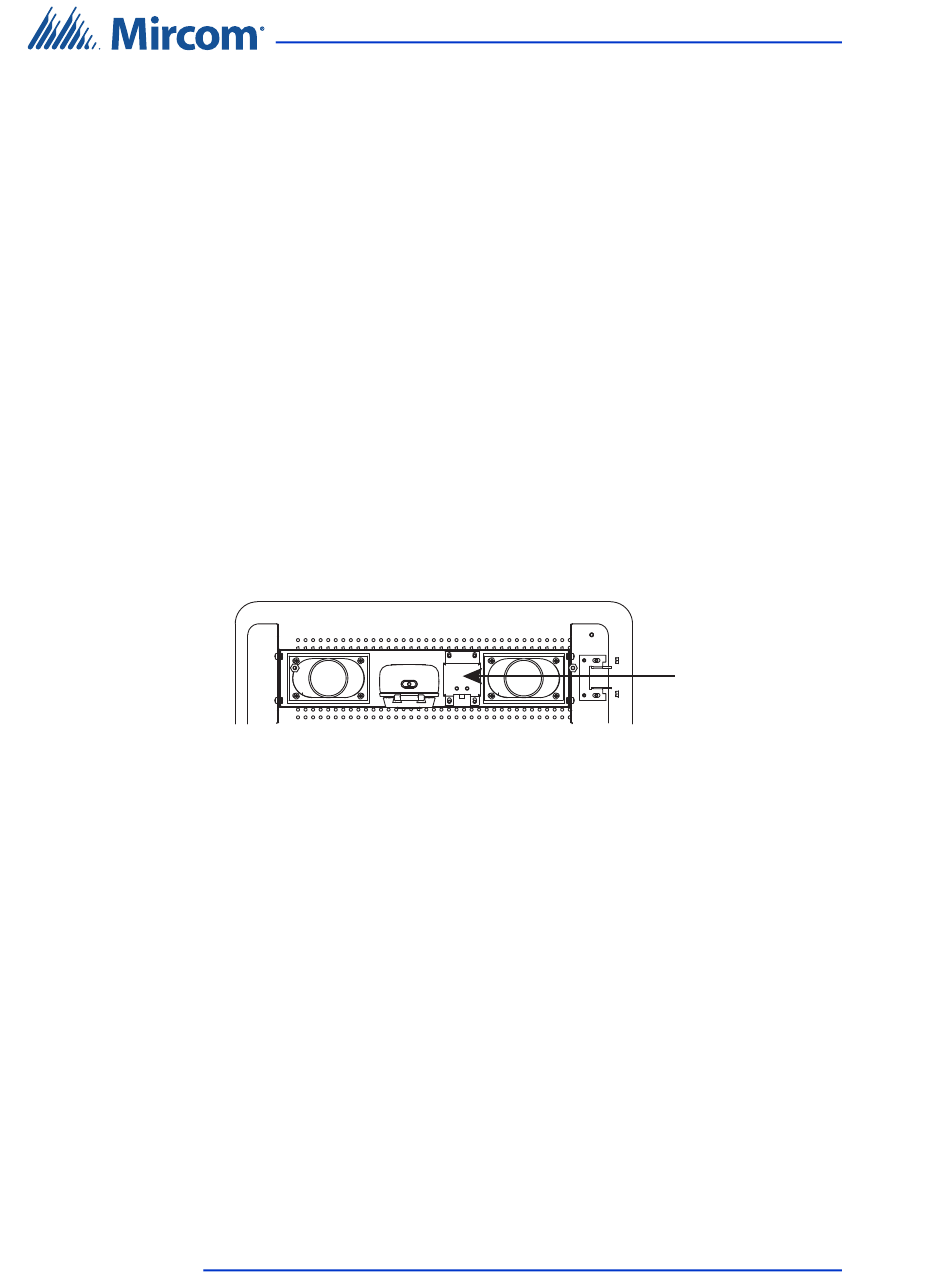

Figure 82. Position of the camera on the inside door
Unscrew the 2 nuts and remove the camera bracket.
Touch Screen System and Setup
Bracket for
IP camera
