Figure 51 Kiosk Base Plate With Bolts; Figure 52 Kiosk Mounting Holes - Mircom TX3 Series Installation Manual

Hide thumbs Also See for TX3 Series:
Table of Contents

Advertisement

Installation
5.
Remove the remaining 8 bolts that attach the Kiosk to the base plate, as
shown in Figure 51.

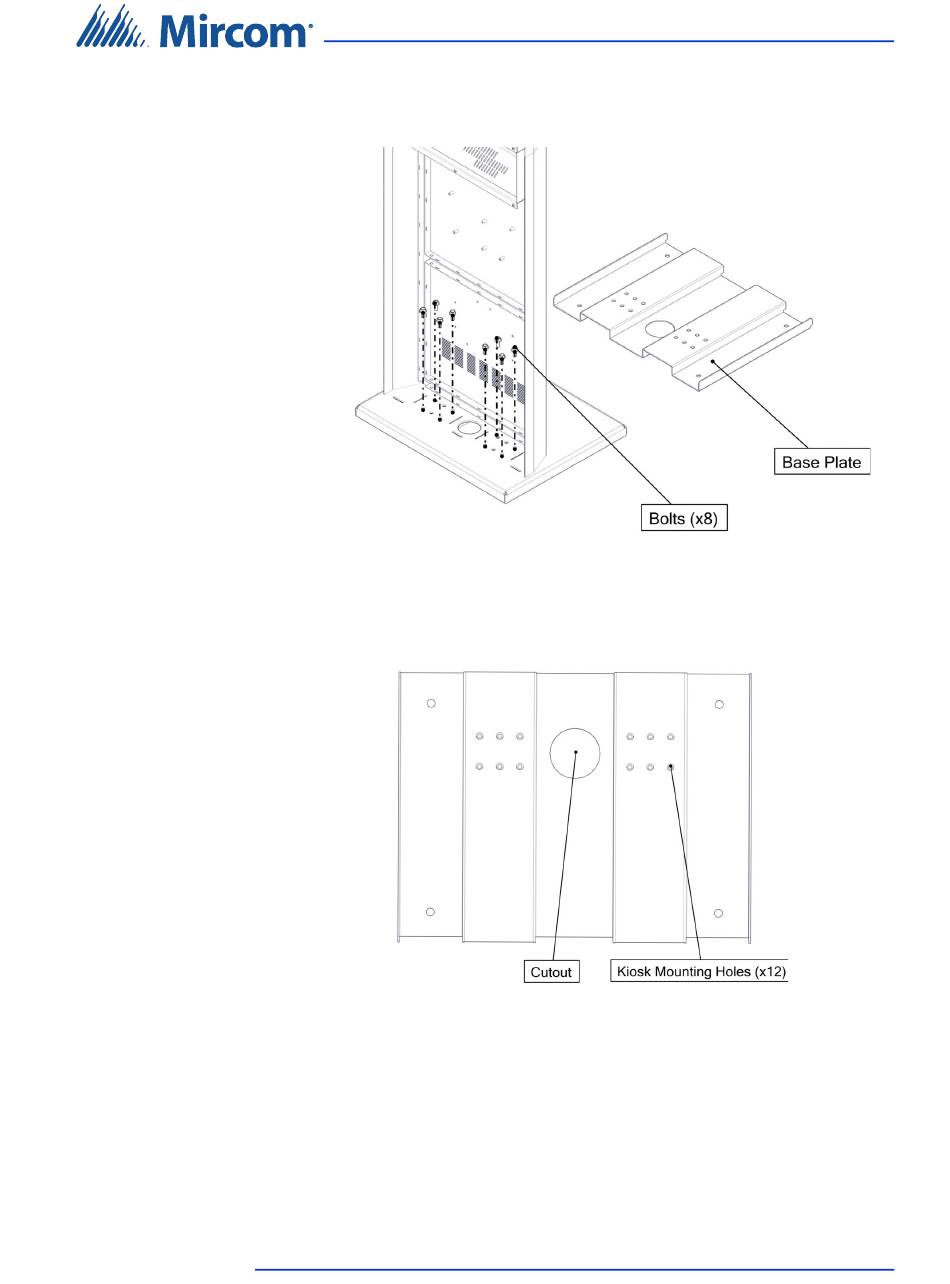

Figure 51. Kiosk base plate with bolts
The 12 Kiosk mounting holes in the base plate are shown in Figure 52.
Figure 52. Kiosk mounting holes
TX3 Touch Screen Installation Manual
63
