Figure 31 Tx3-T-Kiosk2 Dimensions (From Below) - Mircom TX3 Series Installation Manual

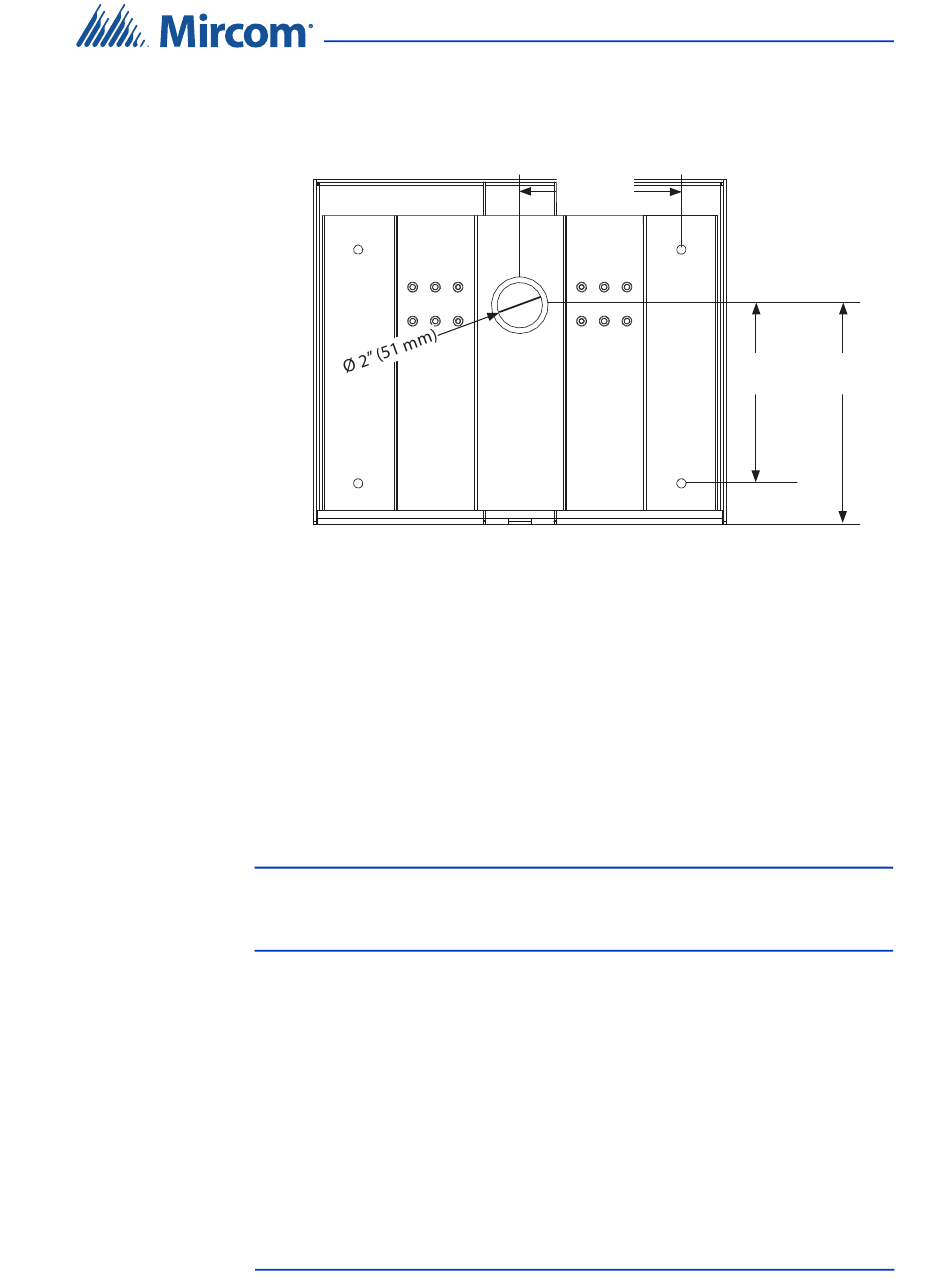

Figure 31 shows the dimensions of the floor bracket.
Figure 31. TX3-T-KIOSK2 dimensions (from below)
3. Cut an opening in the floor for the electrical and communication cables.
4. Run the wires through the floor bracket opening.
5. Secure the floor bracket to the floor using 4 bolts in the floor bracket
mounting holes shown in Figure 31. The holes are 13/32" (10 mm) in
diameter.
To fit the TX3-T-KIOSK2 stand on the floor bracket
Attention: The stand is heavy. Never attempt to lift this product by
yourself. At least two people should lift it together. It weighs
65.5 lb (30 kg).
1. Run the wires through the stand and out the hole at the top.
2. Place the stand on the floor bracket, and slide it forwards so that it rests on
top of the floor bracket.
TX3 Touch Screen Installation Manual
Front
7 1/8"
(181 mm)
Back
Installation
7 27/32" 9 5/8"
(199 mm) (245 mm)
