5.
Secure the floor bracket to the floor using 6 bolts through the floor bracket
mounting holes shown in Figure 40. The holes are 13/32" (10 mm) in
diameter.
To fit the TX3-T-KIOSK3 stand on the floor bracket
Attention: The stand is heavy. Never attempt to lift this product by
yourself. At least two people should lift it together. It weighs 74
lb (34 kg).
1.
Fit the back lip of the stand into the notches in the floor bracket, and tilt the
stand forwards so that it rests on top of the floor bracket.

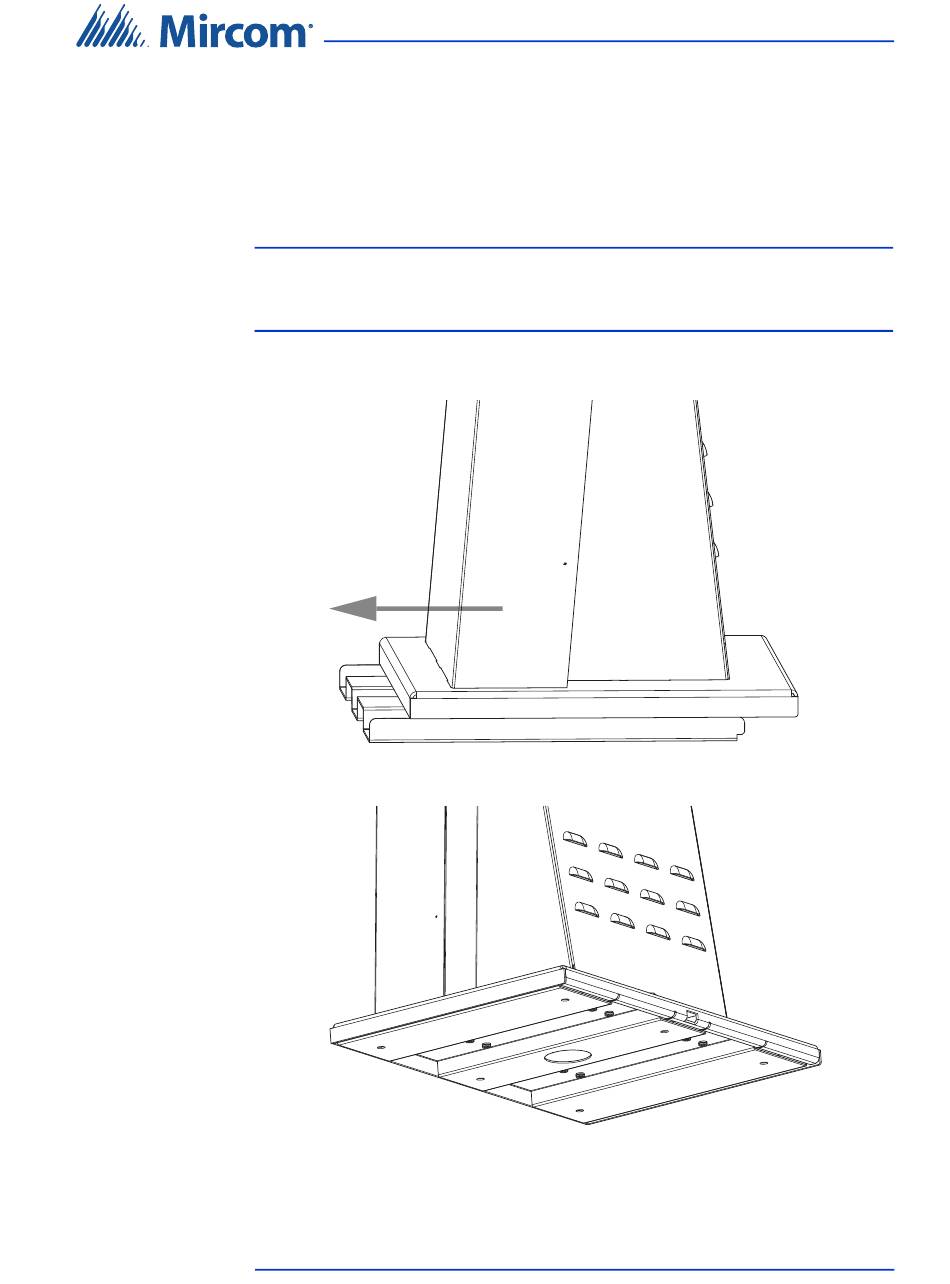

Figure 42. Fit the stand on the floor bracket
Figure 43. Fit the stand on the floor bracket (from below)
TX3 Touch Screen Installation Manual
Installation
57
