Back View

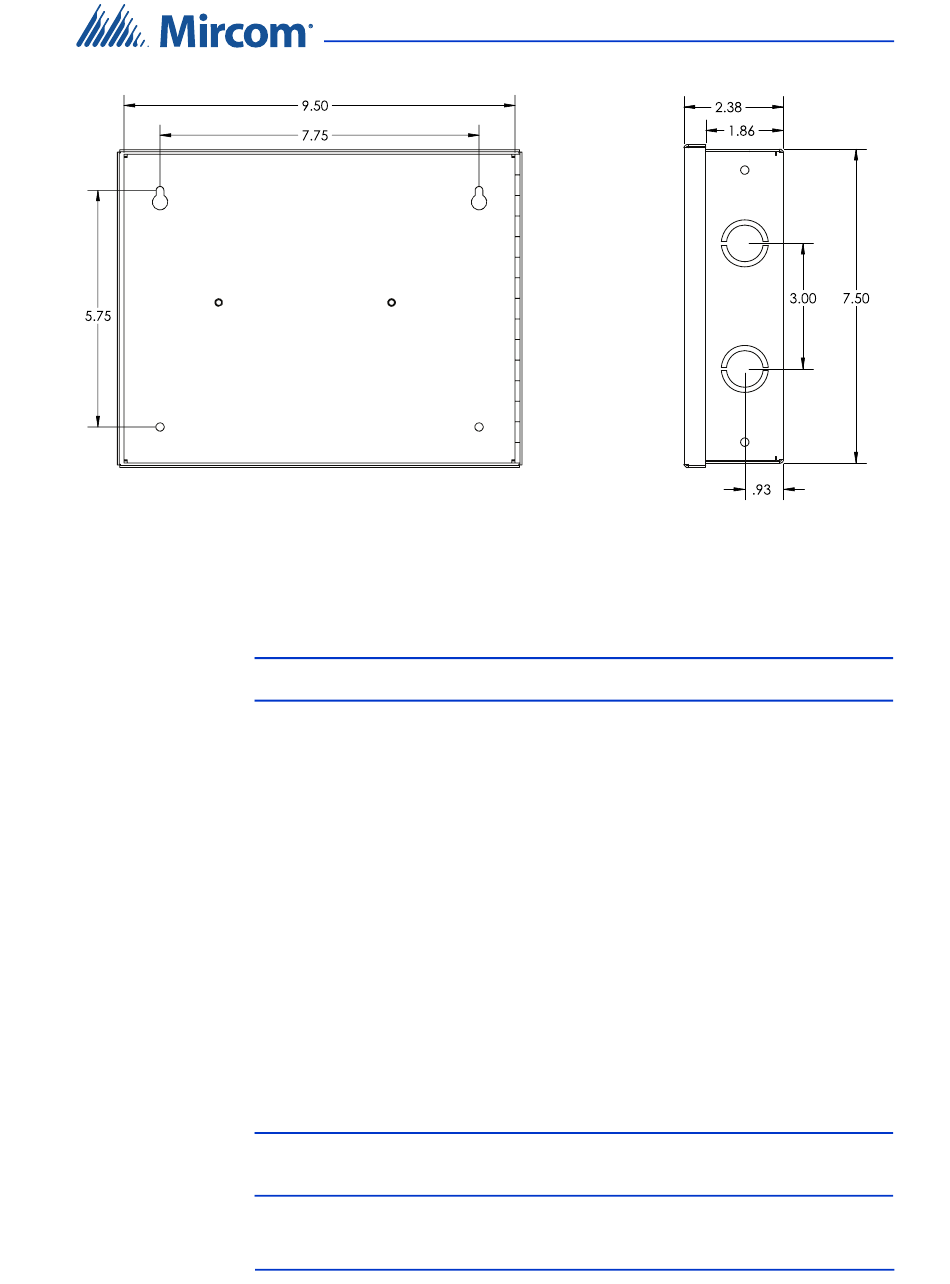

Figure 60. Power supply enclosure dimensions (inches)
To surface mount the power supply enclosure
Attention: Install the power supply outside the Touch Screen enclosure.
You need:
4 fasteners appropriate for the wall that you are mounting the enclosure on.
1. Find a suitable location for the power supply enclosure, such as over a wall
stud.
2. Using the enclosure as a template, mark the two top mounting hole
locations as indicated in Figure 60. Ensure that at least one side is over a
wall stud.
3. Remove the enclosure and place two wall fasteners halfway into the
marked hole locations.
4. Place the enclosure onto the fasteners and lower it so that the fasteners fit
in the narrow part of the keyholes.
5. Screw the other two fasteners into the two remaining holes.
6. Tighten all four fasteners into place.
Note: The enclosure can also be mounted directly onto the drywall using
anchors.
TX3 Touch Screen Installation Manual
Installation
SideView
69
