5.
If you are using the keyholes, remove the enclosure and place 2 fasteners
halfway into the wall into the marked keyhole locations. Then place the
enclosure onto the top fasteners and lower it so that the fasteners fit in the
narrow part of the keyholes. as shown in Figure 15. Ensure that at least one
side is beside a wall stud.
Keyhole
screw
screw

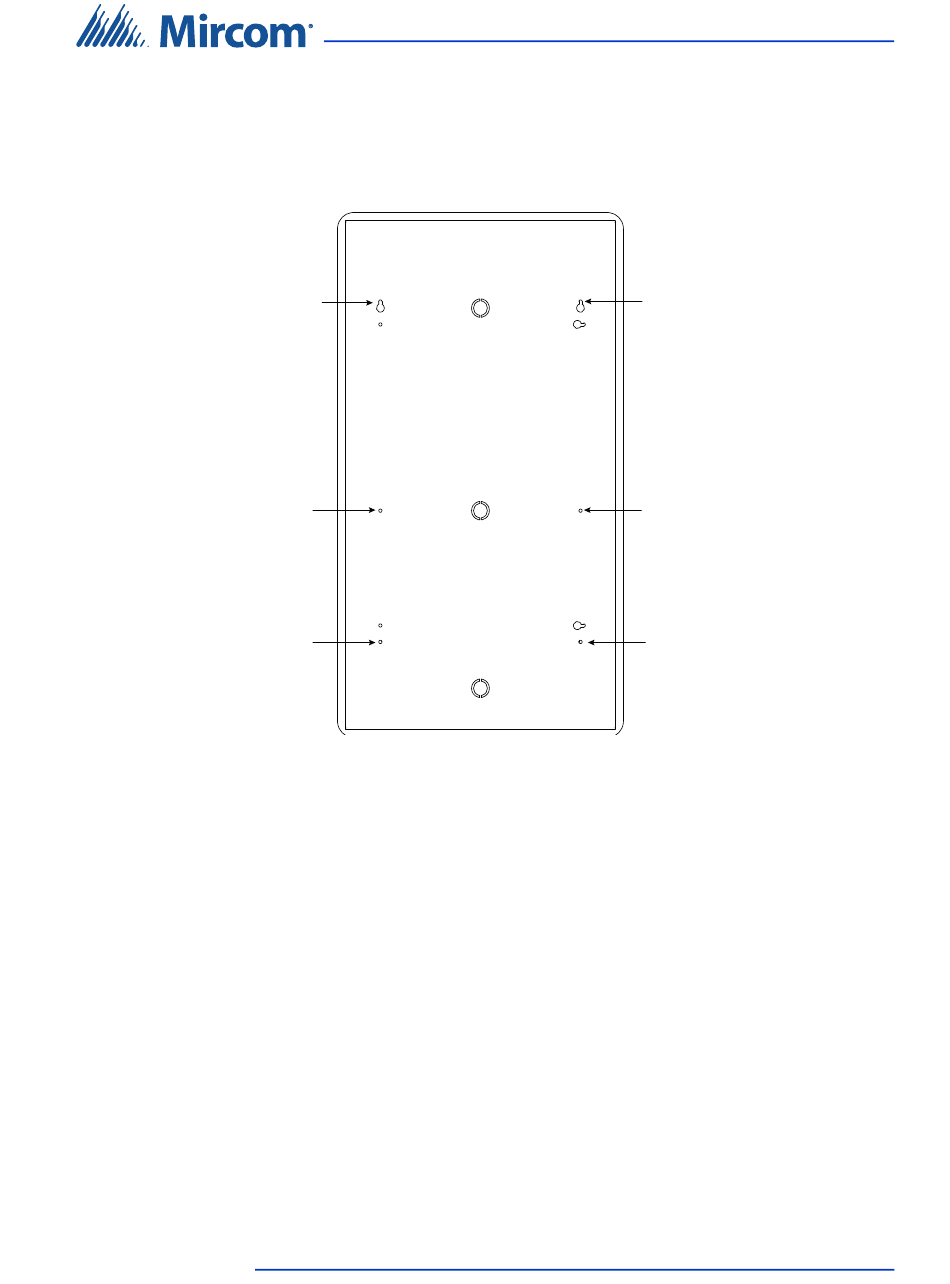

Figure 15. Flush mounting the enclosure
6.
Screw the other four fasteners into the four remaining holes or knockouts.
7.
Tighten all fasteners into place.
8.
Close the door until it clips into place.
9.
Proceed with the power supply installation described in section 2.11 on
page 67.
TX3 Touch Screen Installation Manual
Installation
Keyhole
screw
screw
35
