WC-25019: Power
cable to TS10B on
MD-1236

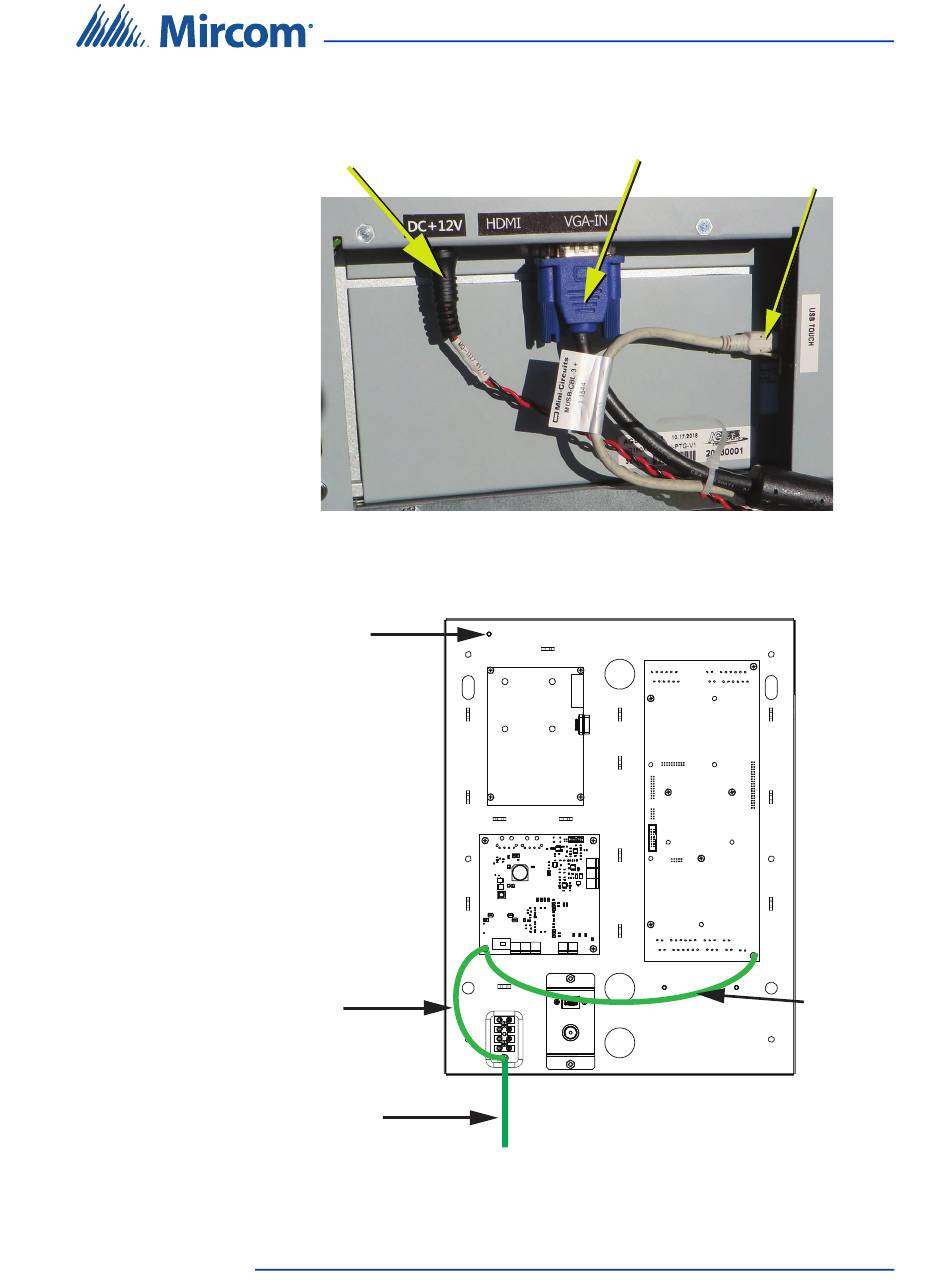

Figure 151. Display connections for TX3-TOUCH-S15B-WR and
TX3-TOUCH-S15S-WR
WX-084 to
ground post
on door
WX-070
WX-019
Figure 152. Ground wires for TX3-TOUCH-S15B-WR and
TX3-TOUCH-S15S-WR
TX3 Touch Screen Installation Manual
Touch Screen Factory Wiring
VGA cable to CN30
on PC board
WC-1100 to
WX-089 to PC
board
WX-070
141
