60
TX3 Touch Screen Installation Manual
Swing the door down and lock it.

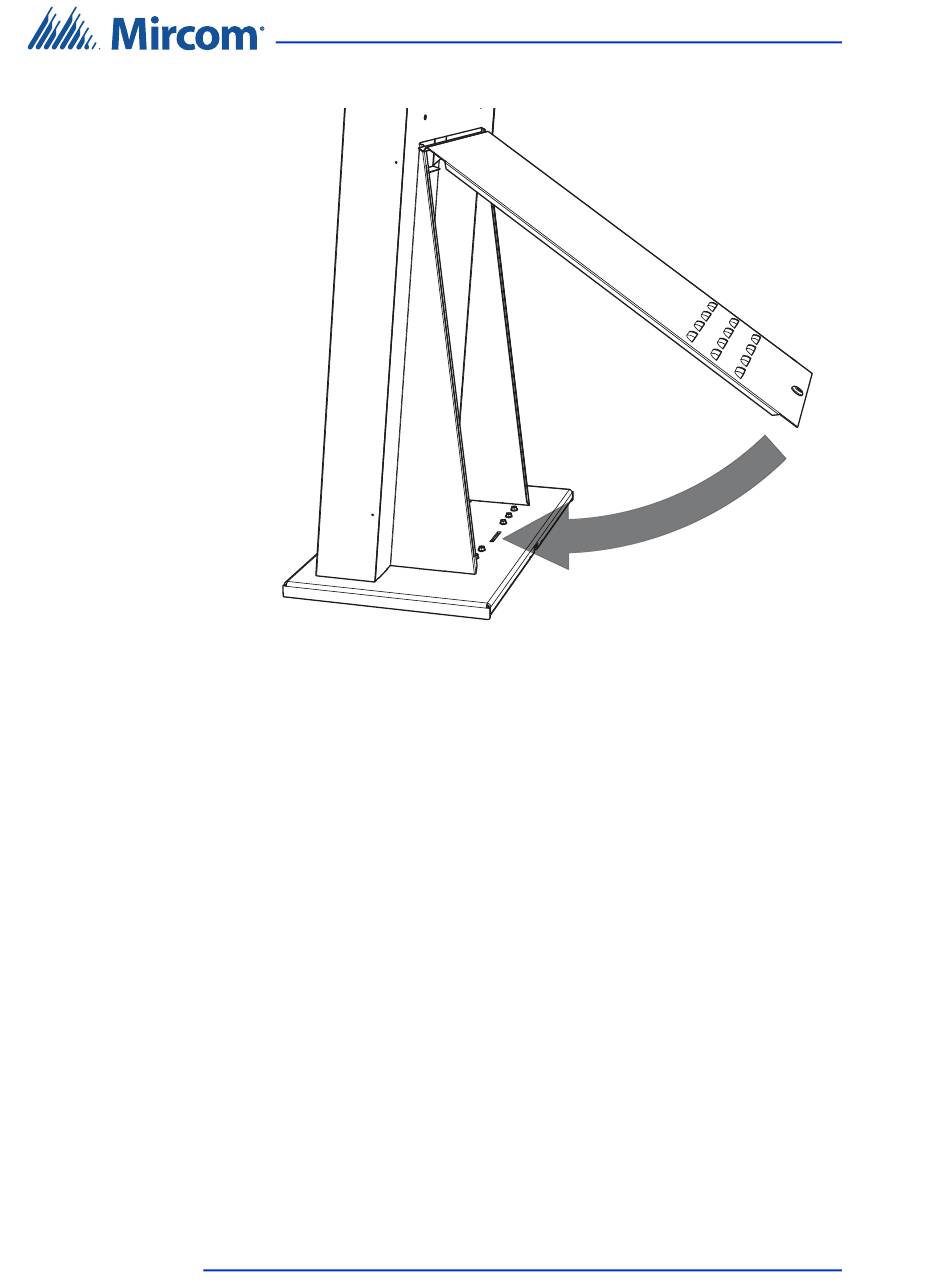

Figure 47. Swing the door closed
Proceed with the power supply installation described in section 2.11 on
page 67.
Installation
