3.5.2 Grounding
Grounding reduces the risk of electrical shock by providing an alternate escape
route for the electrical current.
To ground the 22" Touch Screen
1.
2.
82 TX3 Touch Screen Installation Manual
Remove the nut and open the cover at the bottom of the unit as shown in
Figure 71.
Attach the ground screw to a suitable grounding wire and connect it to the
site ground, as shown in Figure 72.
Power
Terminals
Ground Ground
Screw Screw
16 Gauge Wire 16 Gauge Wire
to Ground to Ground

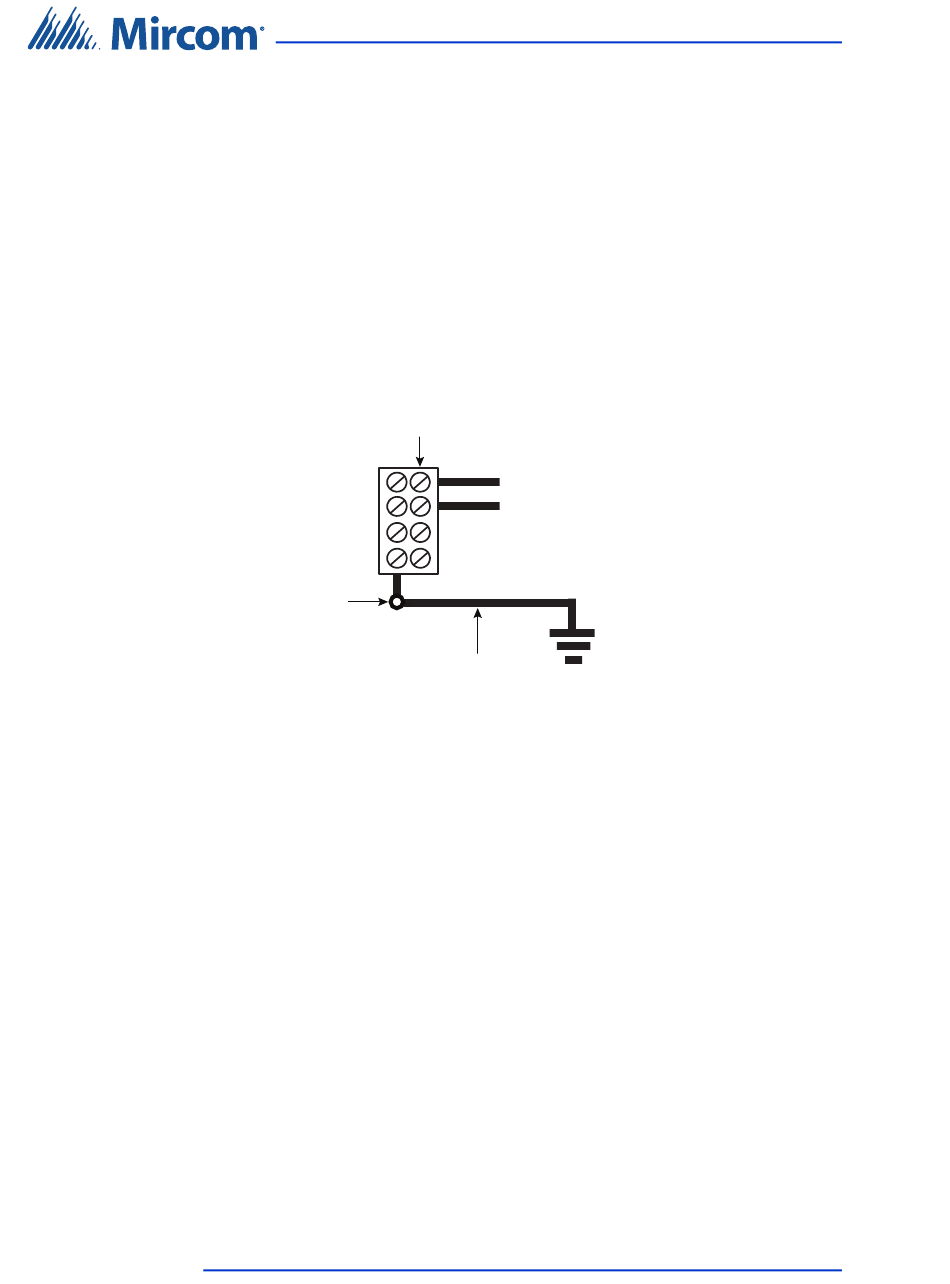

Figure 72. Grounding the 22" Touch Screen
Touch Screen System and Setup
+
−
