5.
6.
To attach the new display
1.
2.
100
TX3 Touch Screen Installation Manual
Remove the display from the four posts.
Remove the eight M4x8mm screws and the outside brackets (CH-1165).
Keep the brackets and the screws.

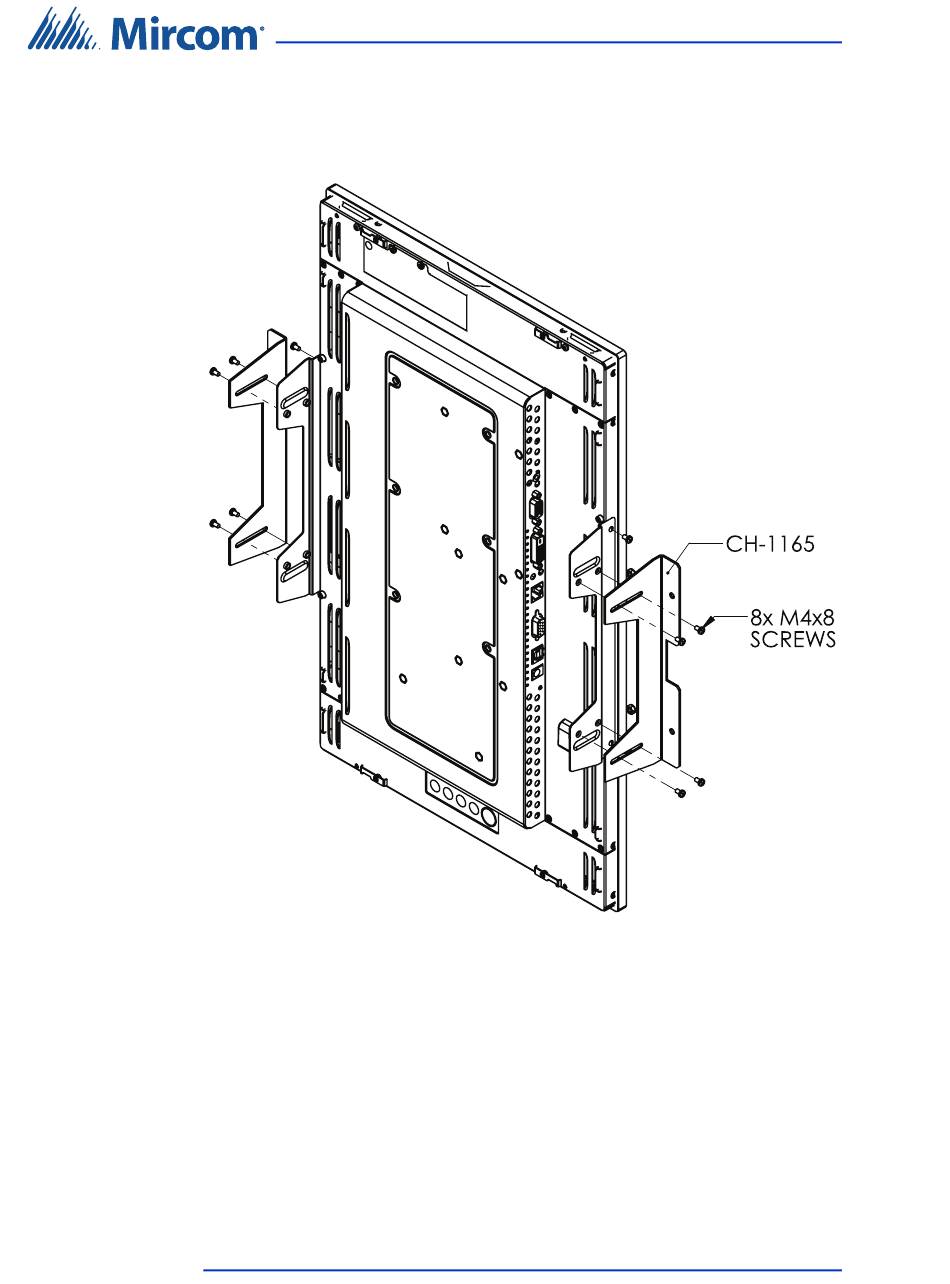

Figure 87. The two brackets (CH-1165) holding the display
Attach the supplied 3M brackets to the display using the supplied M4
screws.
Attach the two CH-1165 brackets that were removed from the old display
using the eight M4x8mm screws. Do not tighten the screws fully yet.
Touch Screen System and Setup
