To fit the Touch Screen Kiosk on the base plate
1.
Fit the back lip of the Kiosk into the notches in the base plate, and tilt the
Kiosk forwards so that it rests on top of the base plate.

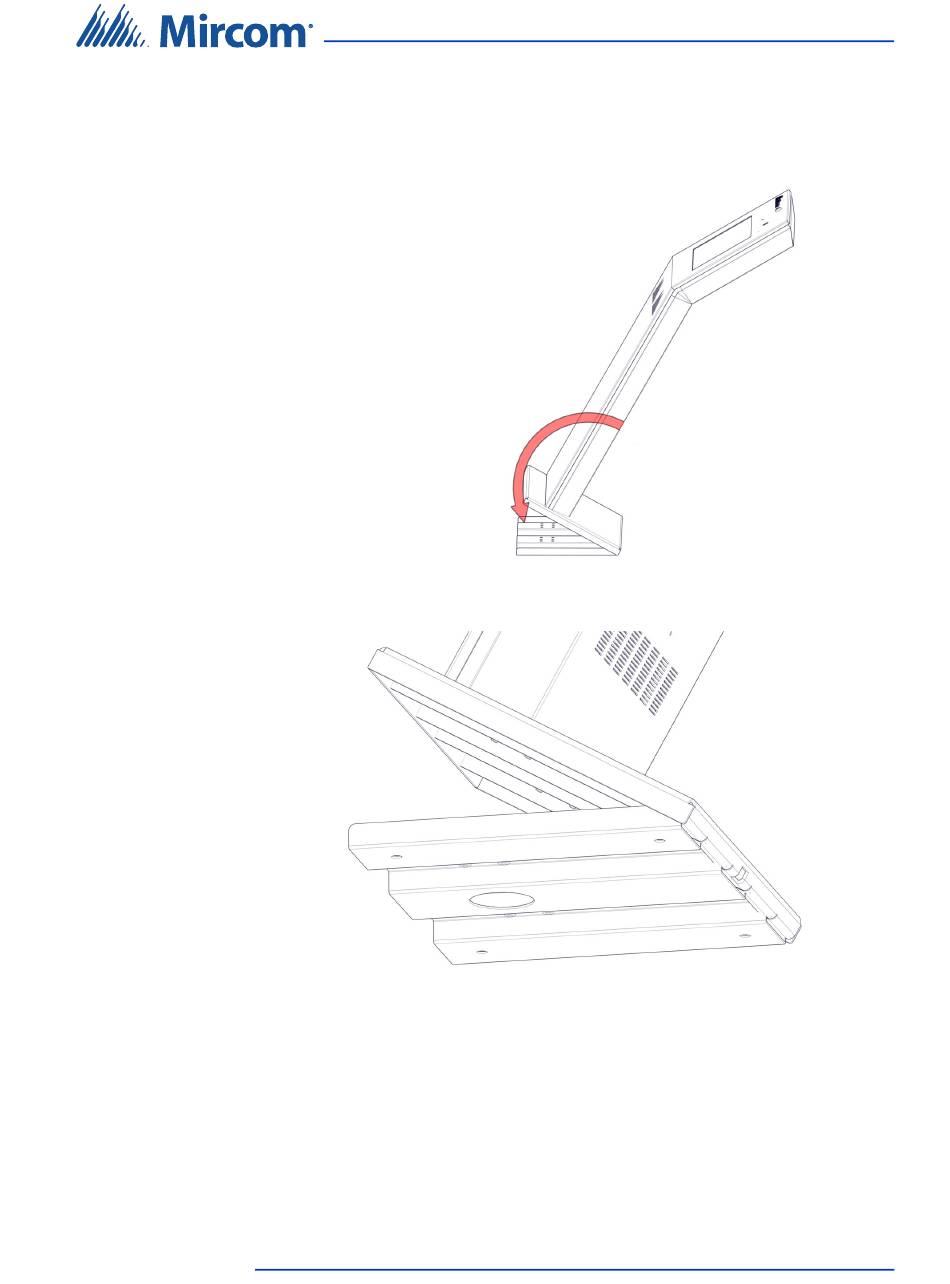

Figure 55. Fitting the Kiosk on the base plate
Figure 56. Fitting the Kiosk on the base plate (from below)
TX3 Touch Screen Installation Manual
Installation
65
