Installing TX3-T-KIOSK

Warning:
Note:
The Kiosk mounts to the floor inside the building near the entrance, close to the
building power source and telephone infrastructure. Access for the power and
communication cables is provided through a cutout in the base plate.
The kit includes:
•
40 TX3 Touch Screen Installation Manual
Do not mount TX3-TOUCH-S15B-WR and
TX3-TOUCH-S15S-WR in any of the TX3 Kiosks.
To prevent overheating, do not install any of the TX3 Touch
Screens in direct sunlight.
Install the power supply outside the enclosure.
18.00
18.20

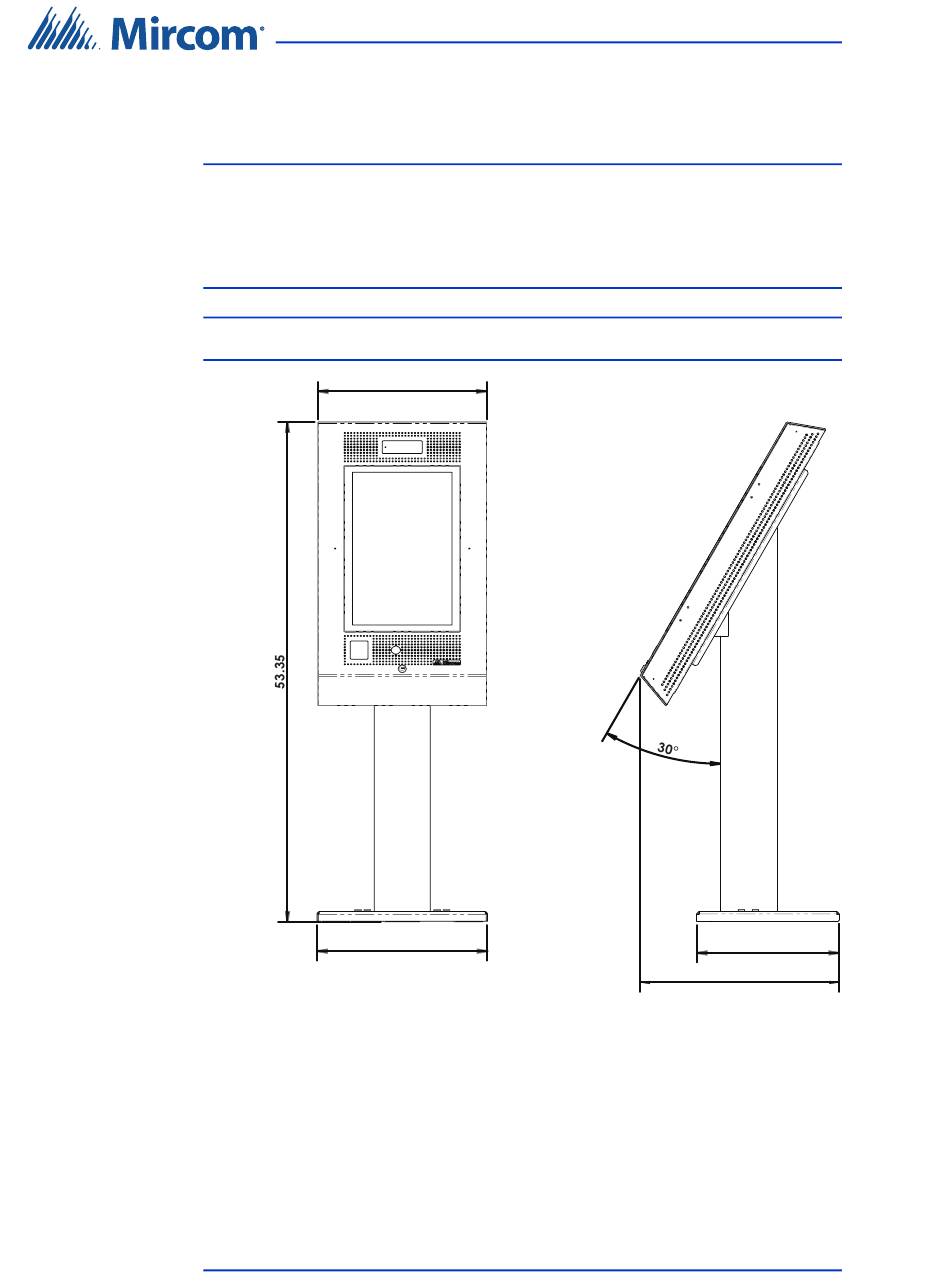

Figure 20. TX3-T-KIOSK dimensions (inches)
1 stand
Installation
15.19
21.23
