Figure 5 Tx3-Touch-S15-A Surface Mount Front Dimensions (Inches) - Mircom TX3 Series Installation Manual
Hide thumbs
Also See for TX3 Series:
Table of Contents
Advertisement
Warning:
The surface mount enclosure mounts on the wall. Mount the enclosure right-side
up (the Mircom logo on the door is on the bottom).
You need:
•
22
TX3 Touch Screen Installation Manual

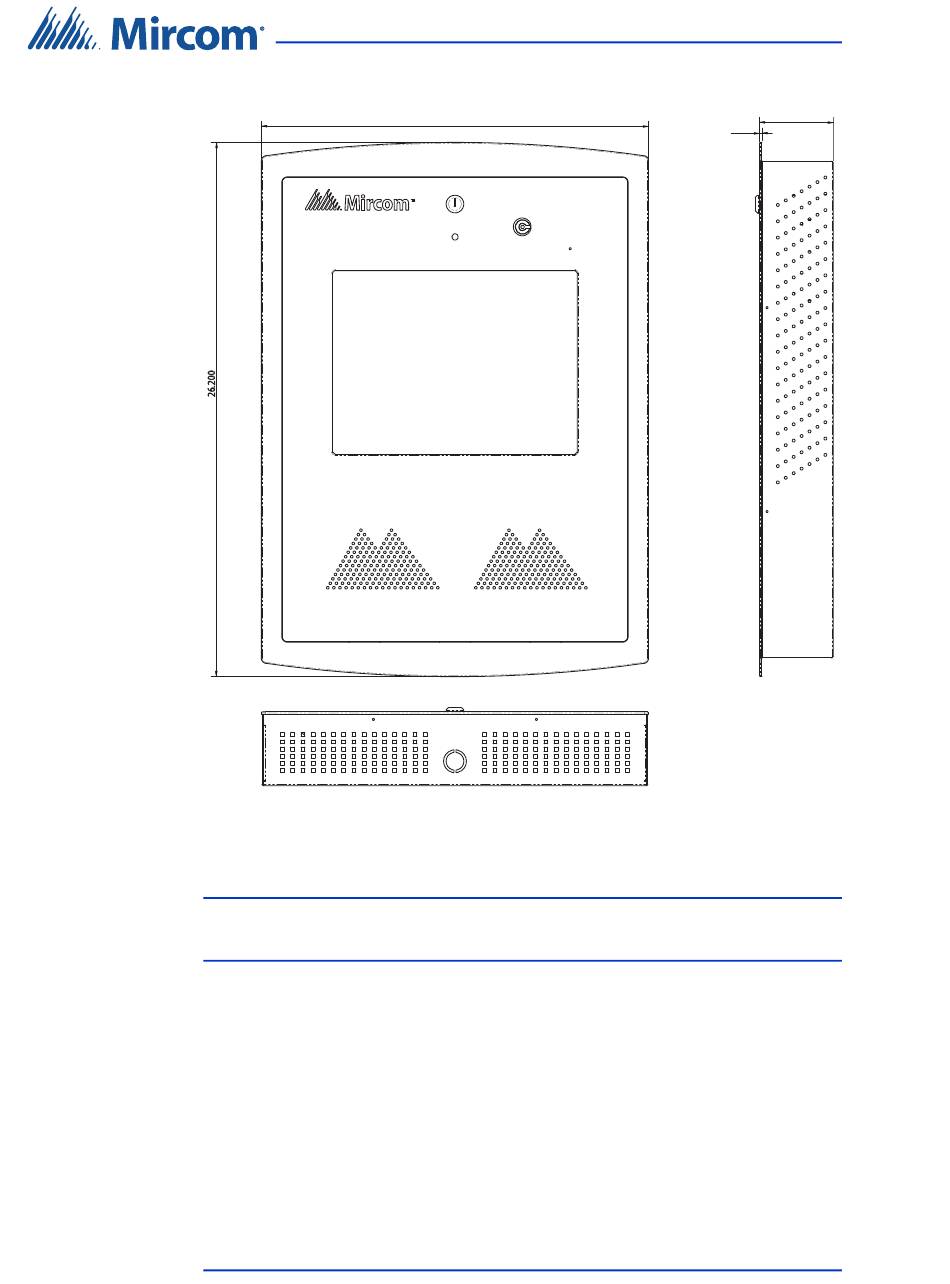

Figure 5.
TX3-TOUCH-S15-A surface mount front dimensions
(inches)
To prevent overheating, do not install any of the TX3 Touch
Screens in direct sunlight.
6 fasteners appropriate for the wall that you are mounting the enclosure
on.
19.000
19.000
Installation
3.622
3.622
0.120
0.120
