Figure 125 Factory Connections On The Power Button; Figure 126 Factory Connections On The Lobby Controller Board For Tx3-Touch-S15-B And - Mircom TX3 Series Installation Manual

TS11 on
MD-1236
green
Notch
white
black (−)
red (+)
4 3 2 1

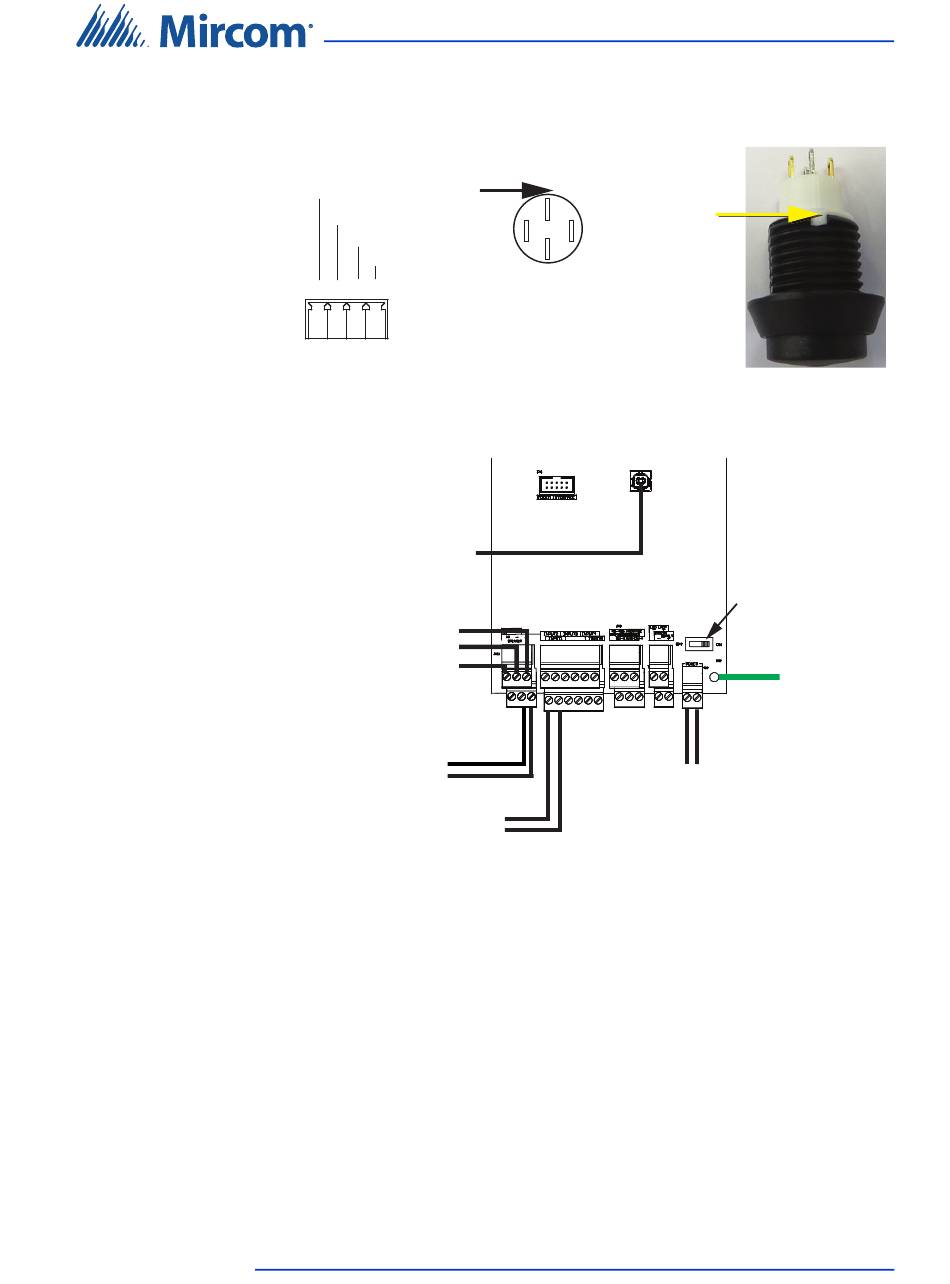

Figure 125. Factory connections on the power button
WX-053: USB on
PC board
Black
WX-077:
White
Microphone
Red
WX-110: TS1 on
Black −
+
Red
MD-1236
WX-030: Postal
lock switch
(optional)
Figure 126. Factory connections on the lobby controller board for
TX3-TOUCH-S15-B and TX3-TOUCH-F15-B with MD-
1236
TX3 Touch Screen Installation Manual
Button (bottom view)
red (+)
1
white green
3 4
black (−)
2
TS5
TS4
Touch Screen Factory Wiring
Button (side view)
Notch
JP1
Power switch
WX-070:
TS2 TS2 Ground wire
to MD-1236
Red Black
WX-109: TS12 on
MD-1236
(not polarity sensitive)
