Figure 27 Attach The 22" Touch Screen To The Stand - Mircom TX3 Series Installation Manual

Hide thumbs Also See for TX3 Series:
Table of Contents

Advertisement

4.
Attach the six included screws to the posts.
Hole for wiring
Nuts (x6)

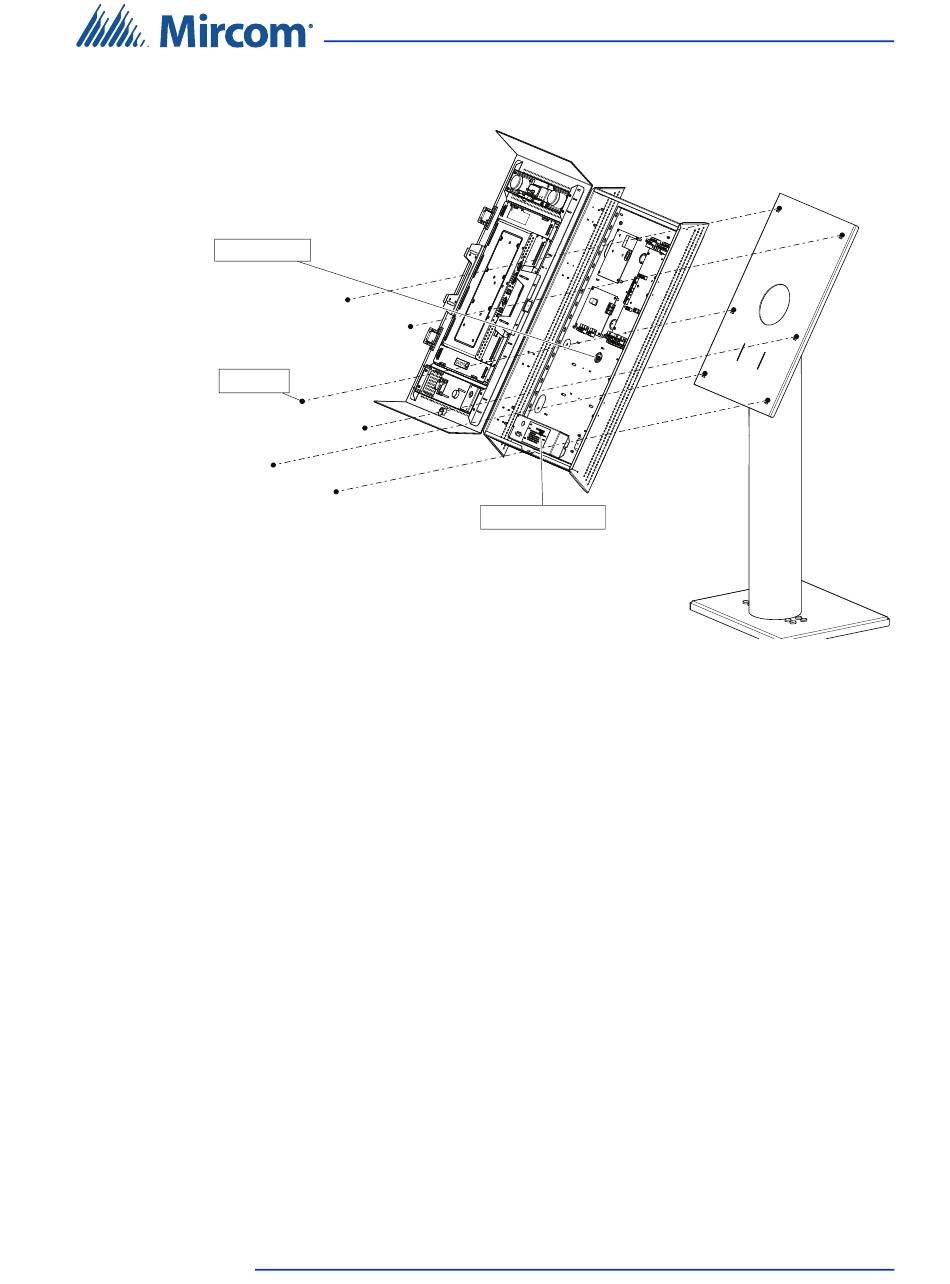

Figure 27. Attach the 22" Touch Screen to the stand
5.
Proceed with the power supply installation described in section 2.11 on
page 67.
TX3 Touch Screen Installation Manual
Power and ground
Installation
45
