4.4.1
Default Jumper Settings on the PC Board in TX3-TOUCH-S15B-WR
and TX3-TOUCH-S15S-WR
Pin 3
Pin 2
Pin 1
JP1 JP3
Pins 1 and 2 connected
JP4
Pins 2 and 3 connected
Pin 1
Pin 2
Pin 3
JP2
No pins connected
142
TX3 Touch Screen Installation Manual
MD-1288
JP8 and JP9
No pins connected

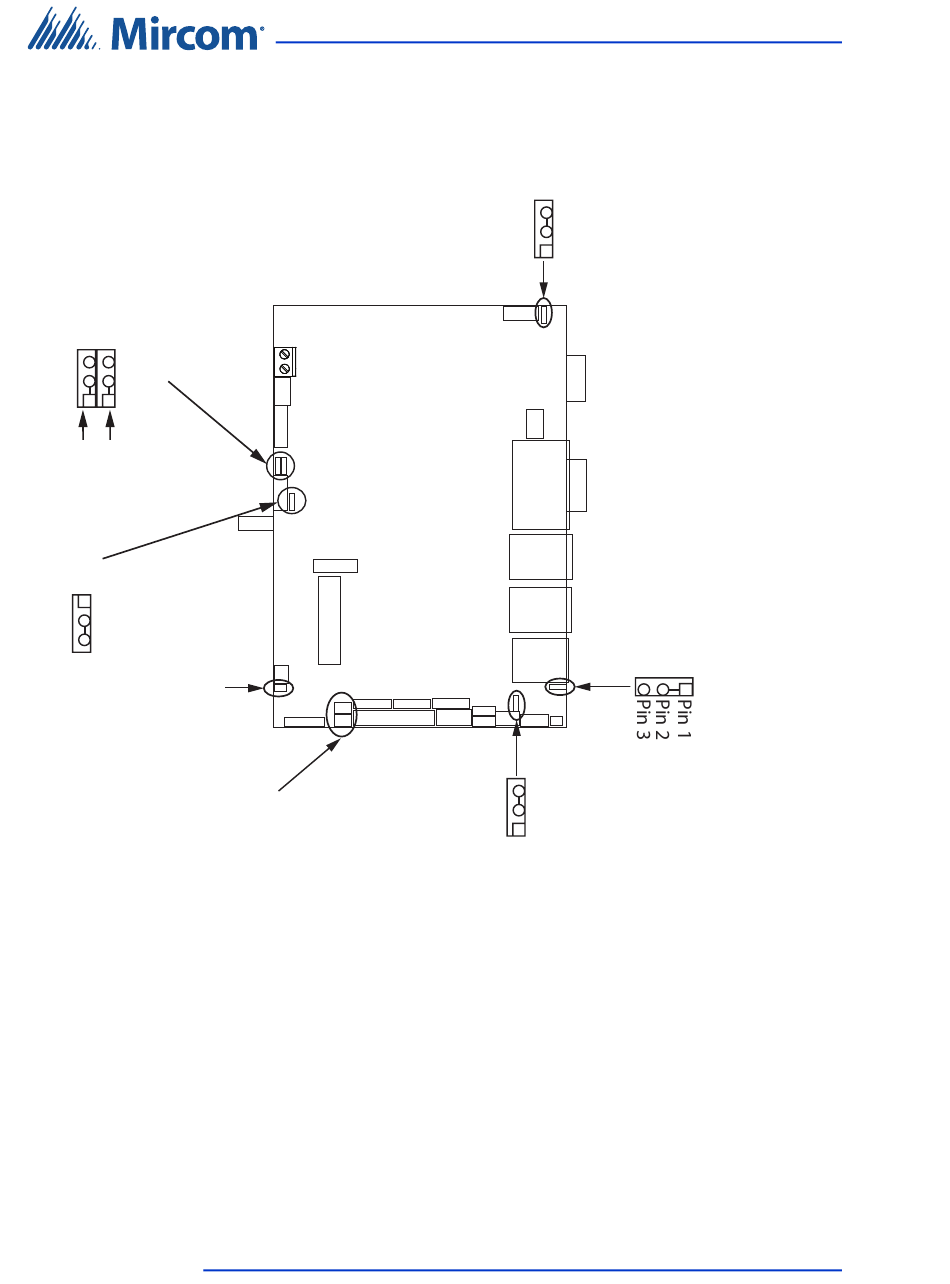

Figure 153. Default jumper settings on MD-1288 for
TX3-TOUCH-S15B-WR and TX3-TOUCH-S15S-WR
Touch Screen Factory Wiring
JP20
Pins 2 and 3 connected
Pin 3
Pin 2
Pin 1
JP21
Pins 1 and 2 connected
Pin 3
Pin 2
Pin 1
JP17
Pins 2 and 3 connected
