To install the Touch Screen Kiosk base plate
1.
2.
3.
4.
62 TX3 Touch Screen Installation Manual
Find a suitable location for the Kiosk next to the building entrance and
above the building electrical and communications conduit.
Remove the door from the Kiosk.
Remove the 4 bolts from the reinforcement bracket, as shown in
Figure 49.

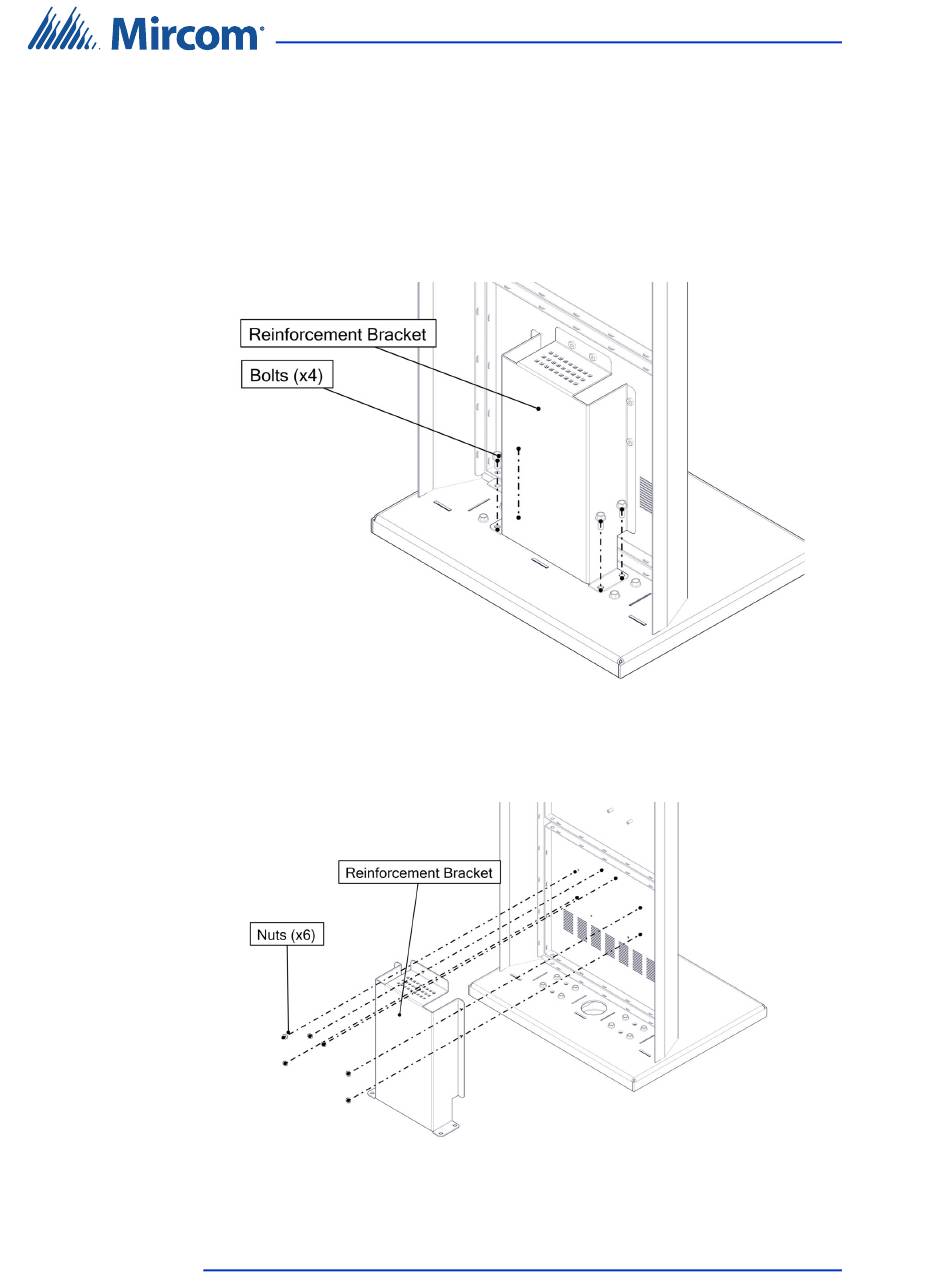

Figure 49. Reinforcement bracket with bolts
Remove the 6 nuts on the reinforcement bracket, as show in Figure 50, and
then remove the bracket.
Figure 50. Reinforcement bracket with nuts
