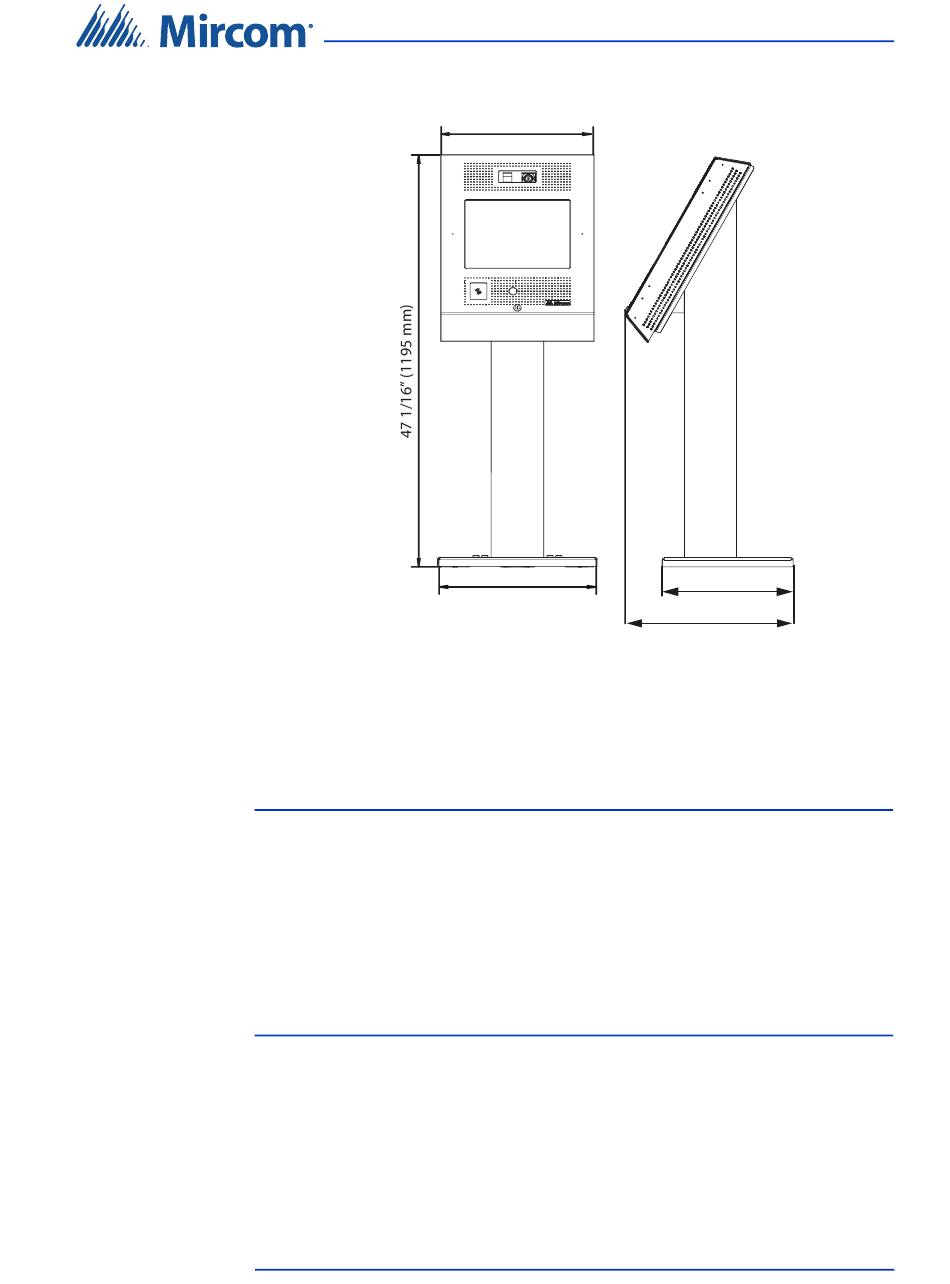

Figure 29. Dimensions of TX3-T-KIOSK2 with TX3-TOUCH-S15-B
TX3-T-KIOSK2 supports these models:
• TX3-TOUCH-S15-A/B/C/D
• TX3-TOUCH-S22(-C/D)
Attention: The stand is heavy. Never attempt to lift this product by
yourself. At least two people should lift it together.
To ensure that there is enough room for installing the stand,
leave at least 4" (102 mm) clearance between the back of the
floor bracket and the wall.
Avoid placing the Touch Screen in direct sunlight.
Install the power supply outside the enclosure.
The Kiosk mounts to the floor inside the building near the entrance, close to the
building power source and telephone infrastructure. Access for the power and
communication cables is provided through a cutout in the base plate.
The kit includes:
• 1 x stand
TX3 Touch Screen Installation Manual
17 1/2" (445 mm)
18 13/64" (462 mm)
15 3/16" (386 mm)
19 9/16" (497 mm)
Installation
47
