4.
Secure the stand onto the floor bracket using the screw cover bases,
screws, and screw covers as show in Figure 34.

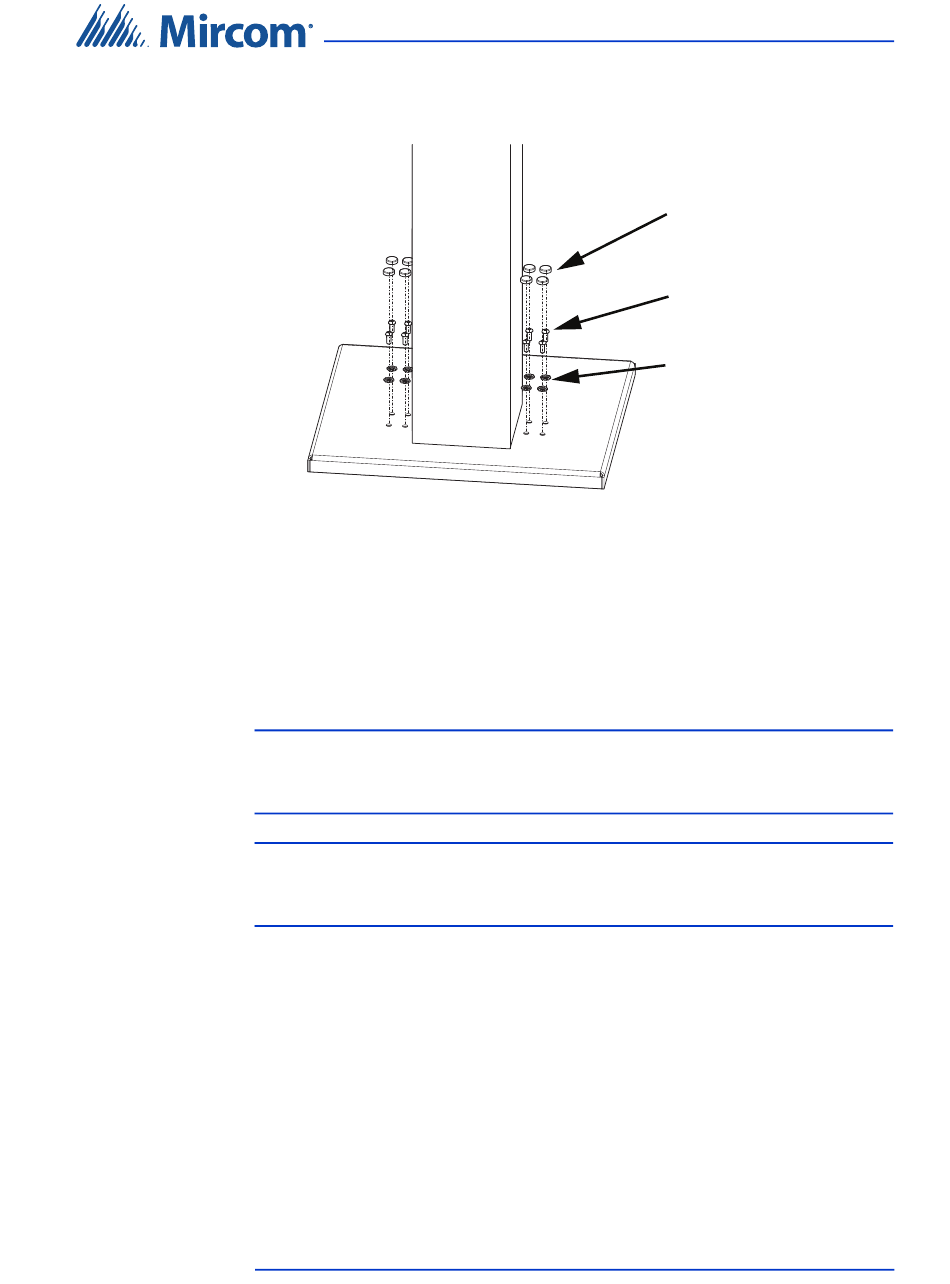

Figure 34. Attach the stand to the floor bracket
To mount the Touch Screen on the stand
TX3-T-KIOSK2 supports these models:
•
TX3-TOUCH-S15-A/B/C/D
•
TX3-TOUCH-S22(-C/D)
Warning:
Use only surface mount Touch Screens with this stand. Do not
mount TX3-TOUCH-S15B-WR and TX3-TOUCH-S15S-WR
in any of the TX3 Kiosks.
Attention: The 22" Touch Screen enclosure is heavy. Never attempt to lift
this product by yourself. At least two people should lift it
together. It weighs 80 lbs or 37 kg.
1.
Align the top two mounting holes of the Touch Screen with the top holes
on the stand. See Figure 35.
2.
Insert screws into the Touch Screen's top mounting holes and lower the
Touch Screen so that the screws fit in the narrow part of the mounting
holes.
3.
Secure the Touch Screen with the remaining screws. Use 6 screws for the
22" Touch Screen and 4 screws for the 15" Touch Screen.
4.
Proceed with the power supply installation described in section 2.11 on
page 67.
TX3 Touch Screen Installation Manual
Installation
Screw covers (x8)
Screws (x8)
Screw bases (x8)
51
