Figure 9 Flush Mount Enclosure - Mircom TX3 Series Installation Manual

Enclosure
To install the flush mount enclosure
1.
2.
3.
4.
TX3 Touch Screen Installation Manual
26

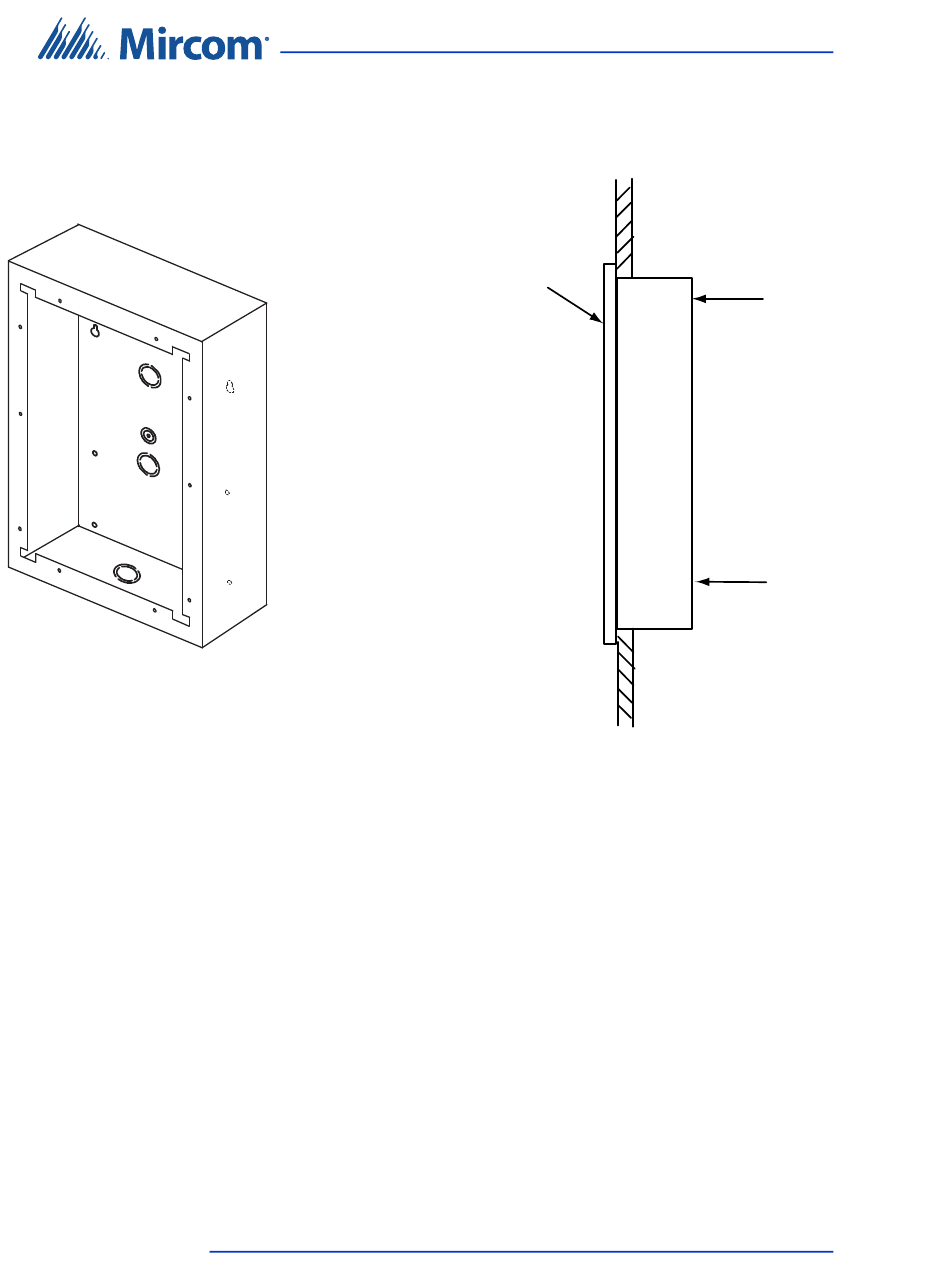

Figure 9. Flush mount enclosure
Find a suitable location for the enclosure. You can mount the enclosure
using the keyholes on the back, or the knockouts on the side, or both.
Using the enclosure as a template, trace an opening in the wall for the
cutout with one side aligned with the side of the wall stud.
Cut an opening in the wall 0.1 inch larger than the trace ensuring that one
side is aligned with the wall stud or supporting structure.
Insert the enclosure into the wall cutout and using the side of the enclosure
as a template mark the hole mounting locations (either keyholes or
knockouts or both).
Wall
Frame
Front
Side View
Installation
Top
Enclosure
GROUND
SCREW
LOCATION
