Figure 39 Tx3-T-Kiosk3 Components - Mircom TX3 Series Installation Manual

The Kiosk mounts to the floor inside the building near the entrance, close to the
building power source and telephone infrastructure. Access for the power and
communication cables is provided through a cutout in the base plate.
The kit includes:
• 1 x pedestal
• 1 x floor bracket
• 1 x door
• 6 x #8-32 x 1/4 screws for attaching the Touch Screen
• 12 x #1/4-20 x 5/8 screws for attaching the stand to the floor bracket
• 2 x keys
Weight: 74 lb (34 kg)
You will need:
• 4 bolts to attach the base plate to the floor. The bolts need to fit holes that
are 13/32" (10 mm) in diameter.

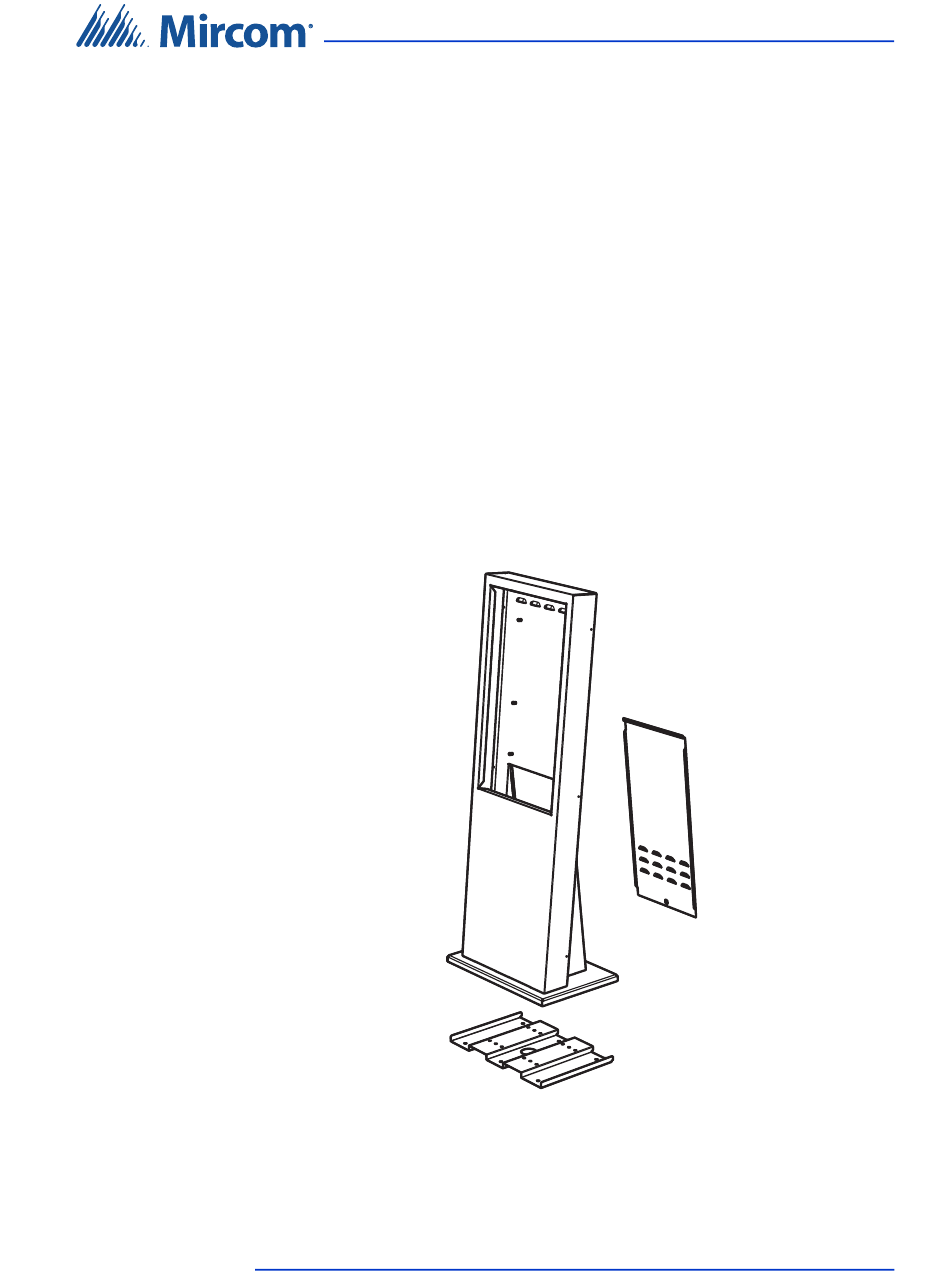

Figure 39. TX3-T-KIOSK3 components
