2.10

Installing TX3-TOUCH-K15-A

Warning:
The Kiosk mounts to the floor inside the building near the entrance, close to the
power source and telephone infrastructure. Access for the power and
communication cables is provided through a cutout in the base plate.
To install the Kiosk you must:
•
•
•
•
Follow the instructions below to complete these steps.
You will need:
4 bolts to attach the base plate to the floor. The holes in the base plate are 0.406"
in diameter.
TX3 Touch Screen Installation Manual
17.950

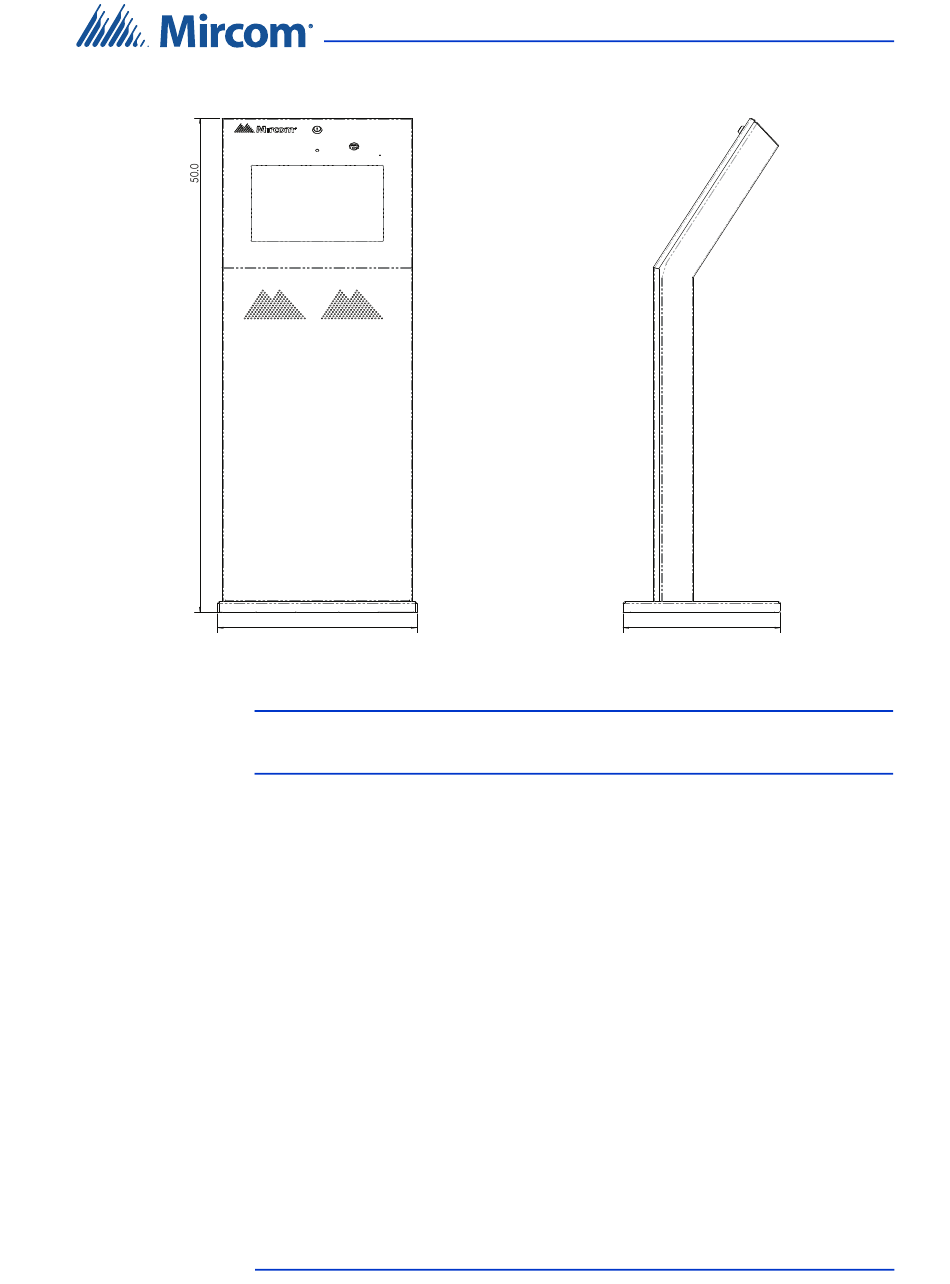

Figure 48. TX3-TOUCH-K15-A dimensions (inches)
To prevent overheating, do not install any of the TX3 Touch
Screens in direct sunlight.
Remove the reinforcement bracket and the base plate.
Attach the base plate to the floor, and run the wiring through the base plate
opening.
Attach the Kiosk to the base plate.
Attach the reinforcement bracket to the Kiosk.
Installation
14.187
61
