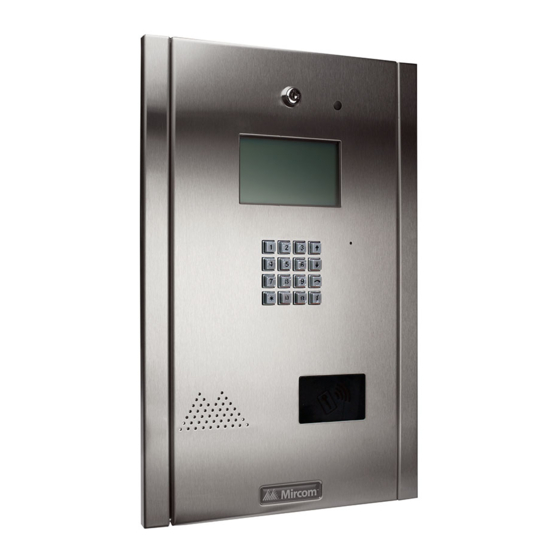

TX3 Series
TELEPHONE ACCESS SYSTEMS
Installation and Operation Manual
TX3 Telephone Access System Installation and Operation Manual
Version 6
LT-969
March 2021
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the TX3 Series and is the answer not in the manual?

Questions and answers

Related Manuals for Mircom TX3 Series

Summary of Contents for Mircom TX3 Series

  • Page 1 TX3 Series TELEPHONE ACCESS SYSTEMS Installation and Operation Manual TX3 Telephone Access System Installation and Operation Manual Version 6 LT-969 March 2021...
  • Page 2 March 2021 Mircom Inc. All rights reserved. TX3 Installation and Operation Manual v 6 Microsoft, MS-DOS, Windows, and Windows 2000/NT/XP/Vista/7/8/10 are either registered trademarks or trademarks of Microsoft Corporation in the United States and/or other countries. Mircom 25 Interchange Way...

  • Page 3: Table Of Contents

    Contents Introduction TX3 Systems Features Lobby Control Unit Enclosures Lobby Control Unit Accessories Mounting requirements from the 2010 ADA Standards for Accessible Design About This Manual Warranty and Special Notices Contact Us Enclosure Installation Grounding the Telephone Access System Installing the Enclosures and Lobby Control Unit Installing the Heater TX3 System TX3 System...
  • Page 4 Contents Wiring the TX3-NSL-8M Main Controller Board Updating Firmware Adding Controllers and Accessories Adding a Controller Installing the TX3-P300-HA Card Reader Specifications Resident Operating Instructions NSL Resident Operating Instructions ADC Resident Operating Instructions Warranty & Warning Information Special Notices TX3 Telephone Access System Installation and Operation Manual...
  • Page 5 List of Figures Figure 1 TX3-200-8U-C, TX3-1000-8U-C, TX3-2000-8U-C, TX3-120U-C Dimensions Figure 2 Dimensions of TX3-UFT and the Universal enclosure Figure 3 Mounting TX3-UFT Universal Series Flush Trim Ring Figure 4 TX3-200-4U-C, TX3-1000-4U-C, TX3-2000-4U-C Dimensions Figure 5 Dimensions of TX3-USFT and the Universal Slim-line enclosure Figure 6 Mounting TX3-USFT Slim Line Universal Flush Trim...
  • Page 6 List of Tables Table 1 RS-485 Add-on Jumper Settings Table 2 TX3-WIEGAND-OUT Output Table 3 Lobby Control Unit SW1 DIP Switch Settings Table 4 NSL Relay Cabinet Dimensions Table 5 Sample Backplane Relay Addresses Table 6 CA-71A BIX Block Identification Form Table 7 RJ-71C Punch-Down Block Identification Form TX3 Telephone Access System Installation and Operation Manual...

  • Page 7: Introduction

    Mircom periodically updates panel firmware and Configurator Software to add features and correct any minor inconsistencies. For information about the latest firmware or software visit the Mircom website at www.mircom.com. Warning: The lobby control unit must be grounded by a qualified electrician.

  • Page 8: Tx3 Systems

    Introduction TX3 Systems The Mircom's TX3 series of telephone access systems provide high quality two- way communication between residents and their visitors in a multi-unit dwelling establishment. The basic TX3 system consists of the TX3 Lobby Control Unit and depending on the application, may be integrated with a combination of Mircom Elevator Restriction Units, Card Access Units and Touch Screens.
  • Page 9 1.1.3 Other Controllers Other Mircom controllers, such as the Elevator Restrictor Unit and the Card Access controller, may be networked with the Lobby Control Unit. The network options include a peer-to-peer RS-485 network, an Ethernet TCP/IP network, or a combination Ethernet TCP/IP network with RS-485 subnetworks.

  • Page 10: Features

    Introduction Features Features of the TX3 series include: • Stainless steel front panel • Universal Series enclosure with a built-in rain hood • Large scrolling 8 x 20 LCD display that eliminates the need for an external directory • Back-lit 16 digit keypad with dedicated operational buttons for Page Up, Page Down, Call and Info •...

  • Page 11: Lobby Control Unit Enclosures

    Introduction Lobby Control Unit Enclosures There are four series of enclosures for Lobby Control Units: Universal Series. The Universal Series enclosure is an indoor/outdoor unit for the scrolling Lobby Control Unit. Universal Slim-Line Series. The Universal Slim-Line enclosure is an indoor/ outdoor unit that is narrower and longer than the Universal and Continental series, and is for the scrolling Lobby Control Unit.
  • Page 12 Introduction TX3-1000-8U-C: Electronic Scrolling Directory Lobby Control Unit Kit • Eight-line by 20 character LCD display • Main controller board for 1000 residents • PS-4P Transformer • Universal Enclosure complete with Rain Hood and Light Assembly • Designed for outdoor applications •...
  • Page 13 Introduction TX3-1000-4U-C: Slim-Line Electronic Scrolling Directory Lobby Control Unit Kit • 4 Line by 20 LCD character display • Main controller board for 1000 residents • PS-4P Transformer • Slim-line Universal Enclosure complete with Rain Hood and Light Assembly • IP capable •...
  • Page 14 Introduction The Universal Panel Accessories consist of the following: TX3-UFT. Universal Flush mounting trim for use with TX3-120U-C, TX3-200-8U-C, TX3-1000-8U-C and TX3-2000-8U-C. Stainless steel. TX3-USFT. Universal Slim-Line Flush mounting trim for TX3-200-4U-C. Stainless steel. 1.3.4 Continental Series The Continental Series enclosure for Lobby Control Units are flush mounted and for indoor use only.

  • Page 15: Lobby Control Unit Accessories

    Introduction TX3-2000-8C-C: Electronic Scrolling Directory Lobby Control Unit Kit • Eight-line by 20 character LCD display • Main controller board for 2000 residents • PS-4P Transformer • Continental Enclosure • Designed for indoor applications • IP capable • Provision for card reader (sold separately) or postal lock •...

  • Page 16: Mounting Requirements From The 2010 Ada Standards For Accessible Design

    Introduction Mounting requirements from the 2010 ADA Standards for Accessible Design See http://www.ada.gov/ for more information. 308.2 Forward Reach. 308.2.1 Unobstructed. Where a forward reach is unobstructed, the high forward reach shall be 48 inches (1220 mm) maximum and the low forward reach shall be 15 inches (380 mm) minimum above the finish floor or ground.

  • Page 17: About This Manual

    TX3 Two Door Card Access System Kit Catalogue Number 6531 Warranty and Special Notices Mircom values your business and always attempts to provide you with the very best service. Please see the Warranty chapter on page 93 and Special Notices on page 98 for information about the warranty and special notices about equipment use.

  • Page 18: Enclosure Installation

    Enclosure Installation This chapter provides information on how to install the various enclosures and panels. This chapter explains • Grounding the Telephone Access System • Installing the Enclosures and Lobby Control Unit • Installing the Heater Grounding the Telephone Access System Grounding reduces the risk of electrical shock by providing an alternate escape route for the electrical current.

  • Page 19: Figure 1 Tx3-200-8U-C, Tx3-1000-8U-C, Tx3-2000-8U-C, Tx3-120U-C Dimensions

    Enclosure Installation 2.2.1 Installing the Universal enclosure 13 3 Figure 1. TX3-200-8U-C, TX3-1000-8U-C, TX3-2000-8U-C, TX3-120U-C Dimensions The Universal enclosure mounts inside the wall with or without the TX3-UFT Universal Series Flush Trim Ring TX3-UFT. This Trim Ring houses the universal series enclosure as shown in figure 3. TX3 Telephone Access System Installation and Operation Manual...

  • Page 20: Figure 2 Dimensions Of Tx3-Uft And The Universal Enclosure

    Enclosure Installation Figure 2. Dimensions of TX3-UFT and the Universal enclosure TX3-UFT Semi-Flush Trim Cutout in wall should be: 17” (432 mm) H Universal 10 5/8” (269 mm) W Enclosure 3” (76 mm) D Figure 3. Mounting TX3-UFT Universal Series Flush Trim Ring TX3 Telephone Access System Installation and Operation Manual...
  • Page 21 Enclosure Installation To install the Universal enclosure with the Flush Trim Ring to the wall stud Find a suitable location for the enclosure next to a wall stud. Using the enclosure as a template, trace an opening in the wall for the cut out with one side aligned with the side of the wall stud.
  • Page 22 Enclosure Installation To install the Universal enclosure with the Flush Trim Ring to the back wall Find a suitable location for the enclosure. Using the enclosure as a template trace an opening in the wall for the cut out. Cut an opening in the wall. Using the semi-flush trim ring as a template, insert the trim ring into the wall cut out and mark the top two mounting hole locations as shown in figure 3.
  • Page 23 Enclosure Installation 2.2.2 Installing the Universal Slim-line enclosure 114mm 149mm " " 86mm " 422mm 16 5 " 394mm 15 1 " 386mm 15 3 " 28mm " 11mm 14mm 87mm " " " Figure 4. TX3-200-4U-C, TX3-1000-4U-C, TX3-2000-4U-C Dimensions The Universal enclosure mounts inside the wall with or without the Slim Line Universal Series Flush Trim Ring TX3-USFT.

  • Page 24: Figure 5 Dimensions Of Tx3-Usft And The Universal Slim-Line Enclosure

    Enclosure Installation Figure 5. Dimensions of TX3-USFT and the Universal Slim-line enclosure TX3-USFT Slim-line semi-flush trim Universal Slim-line Cutout in wall should be: enclosure 17 1/4” (438 mm) H 6 1/2” (165 mm) W 3” (76 mm) D Figure 6. Mounting TX3-USFT Slim Line Universal Flush Trim Ring TX3 Telephone Access System Installation and Operation Manual...

  • Page 25: Figure 7 Tx3-200-8C-C, Tx3-1000-8C-C, Tx3-2000-8C-C, Tx3-120C-C Dimensions

    Enclosure Installation To install the Universal Slim-line enclosure with or without the Flush Trim Ring Follow the instructions in section 2.2.1 on page 19 using the Universal Slim-line enclosure. 2.2.3 Installing the Continental enclosure The Continental enclosure flush mounts directly inside the wall to the wall stud as shown in figure 8.

  • Page 26: Figure 8 Mounting The Continental Enclosure

    Enclosure Installation WALL Use the two side slots for mounting OUTSIDE the box to the FRAME wall stud BACKBOX MOUNTING FRONT KNOCKOUTS GROUND SCREW LOCATION Cutout in wall should be: 16 7/8” (429 mm) H 10 3/8” (264 mm) W 3”...

  • Page 27: Installing The Heater

    Enclosure Installation Installing the Heater For temperatures where the Telephone Access System operates below 0 °C (32 °F) at any time, a heater must be installed inside the Universal enclosure as shown in figure 9. For additional information refer to LT-653 TH-102 Heater Installation Instructions.

  • Page 28: Tx3 System

    TX3 System This chapter provides information about the TX3 System and its use. This chapter explains • TX3 System • Single Lobby Control Unit • Dual Lobby Control Units • Three Lobby Control Unit Configuration • Multiple Lobby Control Units •...

  • Page 29: Single Lobby Control Unit

    TX3 System All units use the PS-4P transformer for the power supply. The door strike power supply depends on the door strike power requirements. Single Lobby Control Unit Figure 10 shows the simplest configuration. Telephone outlet Central office line Control Unit Line1 Line1...

  • Page 30: Figure 11 Single Lobby Control Unit With Adc And Nsl Lines

    TX3 System Figure 11 shows a configuration using one Lobby Control Unit connected to one ADC line and four NSL lines. Telephone outlet Central office line Control Control Control Control Unit Unit Unit Unit Line2 Line4 Line3 Line1 Line5 Figure 11. Single Lobby Control Unit with ADC and NSL Lines TX3 Telephone Access System Installation and Operation Manual...

  • Page 31: Figure 12 Single Entrance System Wiring

    TX3 System Figure 12 shows the various inputs to the panels. Control Telephone outlet Unit Centrl office line Electrical room Line1 General 1 pair Aux Door Door purpose output 1 Telephone Form C relay Fire panel Main Door Postal Strike AC (Form C relay wire contact...

  • Page 32: Dual Lobby Control Units

    TX3 System Dual Lobby Control Units Figure 13 shows a dual entry application for either an NSL type or ADC connection type. The phone line from either the NSL control unit or an ADC dedicated phone line is shared by both Lobby Control Units. The Lobby Control Unit senses whether the line in use.

  • Page 33: Three Lobby Control Unit Configuration

    TX3 System Three Lobby Control Unit Configuration Figure 14 shows a configuration with many Lobby Control Units connected to many phone lines using combined ADC and NSL connection types. Line 1 and Line 2 connect to NSL Control Units while Line 3 connects to a dedicated phone line.

  • Page 34: Multiple Lobby Control Units

    Many Lobby Control Units to One Line Networking TX3 Panels Mircom devices such as the Lobby Control Unit, the Card Access Controller, and the Touch Screen can be networked with the TX3 system through a peer-to-peer RS-485 network, an Ethernet TCP/IP network, or a combination of Ethernet and RS-485 networks.

  • Page 35: Figure 16 Tx3 Devices On An Rs-485 Network

    TX3 System any device on the RS-485 network (using USB, a modem, or the COM port), you can also connect to and configure any other device on the RS-485 network using the TX3 Configurator. Lobby Control Unit Lobby Control Unit Card Access Controller Card Reader A PQRS...

  • Page 36: Figure 18 Lobby Control Units Using Both Ethernet And

    TX3 System Figure 18 shows a configuration with TX3 devices connected on both an Ethernet TCP/IP network and on RS-485 subnetworks. Devices connected to a Master Node’s RS-485 subnetwork are Slave Nodes to the Master Node. Each RS-485 subnetwork can have up to 63 devices connected to it; you can still have more than 63 Master Nodes connected to the Ethernet network.

  • Page 37: Lobby Control Unit Wiring

    TX3 System Lobby Control Unit Wiring All units use the PS-4P transformer for the power supply. All wiring is a maximum length of 1000 ft. The door strike power supply depends on the door strike power requirements. Figure 19 shows a typical wiring arrangement for the Lobby Control Unit. 2008/16 NSL Expander CA-71A...

  • Page 38: Lobby Control Unit Setup

    Lobby Control Unit Setup This chapter describes the Lobby Control Unit controller board components and provides information about its operation and setup This chapter explains • Controller Board • Modem Module • IP Module • RS-485 Add-on Module • Guard Phone Module •...

  • Page 39: Controller Board

    Lobby Control Unit Setup Controller Board Figure 20 shows the general layout of the Lobby Control Unit main controller board. See section 4.2 on page 41 and section 4.3 on page 46 for a detailed description of the connectors at the bottom and top of the controller board. Door Supply, Door Telephone Relay, and 2 General...
  • Page 40 Lobby Control Unit Setup 4.1.1 Connectors JP1 (USB). Computer connection for firmware download and configuration. JP2. Not used on Lobby Control Units. TS14. Factory use only. P1. Factory use only. P3. Factory use only. P4. Modem Module connector. P5. IP Module connector. P6.

  • Page 41: Controller Board Connectors - Bottom

    Lobby Control Unit Setup JW8. JW8 defines the operating state of the door strike relay as normally open or normally closed. A jumper wire connects to either the normally open (position 2 - top) or normally closed pin (position 1 - bottom). The default setting is normally open (position 2 - top).

  • Page 42: Figure 22 Tamper Switch

    Lobby Control Unit Setup 4.2.2 Speaker Connection The speaker connection is situated at the bottom left of the main controller board. It connects to the front display and is factory set. 4.2.3 Inputs 1 to 5 Inputs 1 to 5 are situated at the bottom of the main controller board and are assigned specific functions.
  • Page 43 Lobby Control Unit Setup 4.2.4 RS-485 An RS-485 terminal lets you easily connect multiple telephone, card access and elevator restriction controllers across a network. The RS-485 connection is situated at the bottom middle of the main controller board and consists of two separate terminals, each for an input and output.

  • Page 44: Figure 23 Rs-485 Wiring

    Lobby Control Unit Setup Panel 1 Panel 3 Panel 2 First panel on network Last panel on network 120 Ω 120 Ω Optional common Connect shield to chassis Connect shield to chassis reference connection ground on one panel only ground on one panel only if available Figure 23.

  • Page 45: Figure 24 Power Supply

    Lobby Control Unit Setup 4.2.7 Power Supply The power supply connection is situated at the bottom right of the main controller board and receives 16 Vac, 40 VA. An external PS-4 or PS-4P plug-in transformer connects to the power terminals. Refer to figure 21 and figure 24. ON/OFF Switch 16 Vac IN 16 Vac...

  • Page 46: Controller Board Connectors - Top

    Both NSL and ADC lines can be connected. Each T/R line is polarity insensitive and can be reversed. Note: Non-configurable PBX systems are not supported. For more information, contact technical support at Mircom. TX3 Telephone Access System Installation and Operation Manual...
  • Page 47 Lobby Control Unit Setup 4.3.2 JW8 must be set to define the operating state of the door strike relay as normally open or normally closed. Use the jumper wire to connect to either the normally open (position 2 - top) or the normally closed pin (position 1 - bottom). For example, when using a maglock, connect the jumper wire to the normally closed pin (position 1).

  • Page 48: Figure 26 Main Door Dry Contact Wiring

    Lobby Control Unit Setup When using a dry contact for the main door instead of a door strike or maglock, wire the external controller to the left hand terminals of the AC Door Supply and Input Door Supply as shown in figure 26. JW8 controls whether the contact is normally open or normally closed.

  • Page 49: Modem Module

    Lobby Control Unit Setup • call is finished • call is connected • access is granted • access is denied • system is normal Modem Module Note: The Modem Module is designed to work only with POTS (plain old telephone system) lines. Attention: If you use the Modem Module to connect to and configure a Touch Screen, then you cannot configure the Touch Screen locally.

  • Page 50: Ip Module

    Lobby Control Unit Setup IP Module The IP Module connects the Lobby Control Unit to an Ethernet TCP/IP network. The IP Module ribbon cable connects to the P5 connector on the controller board (see figure 20). This allows you to configure and monitor the TX3 devices on your system using a computer and an Ethernet connection.

  • Page 51: Figure 29 Rs-485 Add-On Module

    Lobby Control Unit Setup The module has an RS-485 connector as shown in figure 29. RS-485 Add-on Module Figure 29. RS-485 Add-on Module For a description on how to install the RS-485 Add-on Module see the USB to RS-485 Adapter Installation Instructions LT-6027. Table 1: RS-485 Add-on Jumper Settings Mode...

  • Page 52: Wiegand Output Module

    Lobby Control Unit Setup Wiegand Output Module The TX3-WIEGAND-OUT Wiegand Output Module connects to the Lobby controller board. A Telephone Access panel or Touch Screen with the Wiegand Output Module installed can send a facility code and a card code to a third-party access control system.

  • Page 53: Guard Phone

    Lobby Control Unit Setup The TX3-GPM ribbon cable connects to the P7 connector on the TX3 Lobby Control Unit main board. The guard phone uses a telephone cable to connect to the RJ-11 connector. RJ-11 Connector GPM Ribbon Cable Figure 30. Guard Phone Module For a description on how to install the modem board see the Guard Phone Manual Installation Instructions LT-972.

  • Page 54: Controller Id Setup

    Lobby Control Unit Setup To call a resident from the guard phone Pick up the guard phone and wait for the dial tone. Dial *DDDD (where DDDD is the resident’s four digit dial code). The resident phone rings. When the resident picks up the phone, the connection is established.
  • Page 55 Lobby Control Unit Setup Table 3: Lobby Control Unit SW1 DIP Switch Settings Lobby Control Unit ID # Switch 1 Switch 2 Switch 3 Switch 4 Switch 5 Switch 6 0 (not allowed as a Lobby Control Unit ID 0 is used for PC ID) TX3 Telephone Access System Installation and Operation Manual...

  • Page 56: Configuration Using A Pc

    The easiest way to configure the Lobby Control Unit is with the Mircom TX3 Configuration Software. This software is provided on a single CD-ROM or USB flash drive.

  • Page 57: Updating Firmware

    Refer to LT-995, TX3 Configuration and Administrator Manual, for instructions on how to perform both of these firmware upgrade methods. LT-995 can be found on the TX3 Configurator Software installation CD, USB flash drive, or on the Mircom website. TX3 Telephone Access System Installation and Operation Manual...

  • Page 58: Beginning Configuration

    Lobby Control Unit Setup 4.12.1 Firmware Version Control The firmware version number is accessible from the Configurator software and changes whenever there is a major, minor or revision update. Note: When the major or minor version of the firmware is updated, the configuration is reset to the default values.
  • Page 59 Lobby Control Unit Setup Launch the Configurator and click Connect. Once connected the connection icon appears in the Configurator tool bar. Configure the Telephone Access system using the instructions in the Configurator Software Program TX3-MSW or the LT-995 Configuration and Administration Guide. TX3 Telephone Access System Installation and Operation Manual...

  • Page 60: Nsl Relay Cabinet Installation And Wiring

    NSL Relay Cabinet Installation and Wiring This chapter provides information about the NSL Relay Cabinet Installation and Wiring. This chapter explains • NSL Relay Cabinet Mechanical Installation • NSL Relay Control Unit and Expanders • Wiring the TX3-NSL-8M Main Controller Board •...

  • Page 61: Nsl Relay Cabinet Mechanical Installation

    NSL Relay Cabinet Installation and Wiring NSL Relay Cabinet Mechanical Installation The NSL Relay cabinets contain the telephone switching equipment and are typically mounted in the electrical/telephone room of a building. NSL Relay cabinets are factory assembled in one of the following enclosure sizes: •...
  • Page 62 NSL Relay Cabinet Installation and Wiring The top two mounting holes are 6 3/16 inches apart. Table 4: NSL Relay Cabinet Dimensions Model Number Dim ‘A’ Dim ‘B’ TX3-8EC 10 1/8” 13 15/16” TX3-NSL-8M 23 3/16” 27” TX3-16EC 23 3/16” 27”...

  • Page 63: Nsl Relay Control Unit And Expanders

    NSL Relay Cabinet Installation and Wiring NSL Relay Control Unit and Expanders The TX3-NSL-8M NSL Relay Control Unit, TX3-8EC and TX3-16EC NSL Relay Backplane Expanders perform the following functions: • Telephone switching functionality to facilitate voice communication between the resident's phone and the lobby •...
  • Page 64 NSL Relay Cabinet Installation and Wiring 5.2.2 2012 NSL Relay The NSL Backplane board contains up to eight 2012 NSL Relay Boards. Each 2012 NSL Relay Board has 12 relays, allowing for a total of 96 relays. 5.2.3 NSL Expanders NSL expanders plug into the NSL Backplane Board connectors and consist of: •...

  • Page 65: Figure 33 Nsl Expanders

    NSL Relay Cabinet Installation and Wiring The expanders allow a total of 16 backplanes to be installed, allowing for up to 1535 relays. Note: The TX3-NSL-8M and any TX3-8EC and/or TX3-16EC must all be adjacent to each other, mounted on the same wall and in the same room.

  • Page 66: Wiring The Tx3-Nsl-8M Main Controller Board

    NSL Relay Cabinet Installation and Wiring Wiring the TX3-NSL-8M Main Controller Board The TX3-NSL-8M NSL Main Controller Board has both ribbon cable sockets and screw terminals. Attention: High voltages are present on this board during the ringing of suite telephones. Figure 34 shows the general layout of the TX3-NSL-8M Main Controller board components.
  • Page 67 NSL Relay Cabinet Installation and Wiring P4. Expansion to the NSL Controller back-plane. P5. Expansion to the NSL Controller back-plane. P6. Not used. TS4. Not used. If there is a resistor connected to this terminal, do not remove it. TS5. Telephone line from Lobby panel main controller board. 5.3.2 Switches SW1.

  • Page 68: Figure 35 Nsl System With Telephone Line

    NSL Relay Cabinet Installation and Wiring Relay control unit NSL SYSTEM Line Entry Control Panel Figure 35. NSL System with Telephone Line TX3 Telephone Access System Installation and Operation Manual...

  • Page 69: Figure 36 Nsl Controller Telephone Lines

    NSL Relay Cabinet Installation and Wiring Line 1 TX3-NSL-8M Relay Line 5 Line 1 Control Unit Line 2 Line 3 Line 4 TX3 Lobby Panel Main Controller Board Telephone Lines 1 to 5 Figure 36. NSL Controller Telephone Lines To test the TX3-8M-NSL Relay Control unit Connect a telephone to the TX3-8M-NSL Relay Control unit telephone terminal block (see figure 34).
  • Page 70 NSL Relay Cabinet Installation and Wiring 5.3.6 Connecting to an NSL line Use the following calling pattern when connecting to the NSL Panel. *RRRRPPNNC# Note: PP and NN and C are optional where: RRRR is the relay code. PP is the ring pattern. NN is the maximum number of rings.

  • Page 71: Figure 37 Nsl Backplane

    NSL Relay Cabinet Installation and Wiring NSL Backplane Number Selector. (located between P1 and P2). TX3-NSL-8M Relay Control Unit 2016 NSL Unit Relay Backplane Boards Figure 37. NSL Backplane Attention: High voltages are present on this board during the ringing of suite telephones.

  • Page 72: Figure 38 Adsl-100 Filter Module Installation

    NSL Relay Cabinet Installation and Wiring Back Plane Line to P4 on NSL Controller Phone to P1 on Back Plane NSL Controller Figure 38. ADSL-100 Filter Module Installation 5.3.10 Setting the Backplane Number Relay addresses are numbered to show the relay card’s connector location and backplane number setting.

  • Page 73: Figure 39 Backplane Number Section

    NSL Relay Cabinet Installation and Wiring Using a jumper, set the backplane number across the Backplane Number Selection pins as shown in figure 39. Backplane Number Selection Jumper Setting Figure 39. Backplane Number Section TX3 Telephone Access System Installation and Operation Manual...
  • Page 74 NSL Relay Cabinet Installation and Wiring Table 5: Sample Backplane Relay Addresses Connector Backplane Number Setting Jumper 3 Jumper 1 Jumper 2 Address 193- Address 1-96 Address 97-192 1 to 12 97 to 108 193 to 204 13 to 24 109 to 120 205 to 216 25 to 36...
  • Page 75 RJ-71C, Mircom recommends that you contact the telephone company as to what block wiring configuration is available. We suggest using Mircom's standard 9106 cable for CA-71A or RJ- 71C configured blocks since they are straightforward and easy to use.

  • Page 76: Figure 40 2012 Nsl Relay Board

    NSL Relay Cabinet Installation and Wiring LEDs This connector mounts into the NSL backplane Amphenol connection from telephone company Figure 40. 2012 NSL Relay Board TX3 Telephone Access System Installation and Operation Manual...

  • Page 77: Figure 41 Ca-71A Bix Block Wiring Configuration

    NSL Relay Cabinet Installation and Wiring Figure 41. CA-71A BIX Block Wiring Configuration TX3 Telephone Access System Installation and Operation Manual...
  • Page 78 NSL Relay Cabinet Installation and Wiring Table 6: CA-71A BIX Block Identification Form Relay Cabinet No. ____ of ____Decoder/Mother Board No.________ Relay Card/ Telephone Block Pins Apt. Dial Relay/ Relay Card/ Telephone Block Pins Apt. Dial Relay/ Amp. Jack Number Tel.
  • Page 79 NSL Relay Cabinet Installation and Wiring Table 6: CA-71A BIX Block Identification Form (Continued) Relay Cabinet No. ____ of ____Decoder/Mother Board No.________ Relay Card/ Telephone Block Pins Apt. Dial Relay/ Relay Card/ Telephone Block Pins Apt. Dial Relay/ Amp. Jack Number Tel.

  • Page 80: Figure 42 Rj-71C Punch-Down Block Wiring Configuration

    NSL Relay Cabinet Installation and Wiring Figure 42. RJ-71C Punch-Down Block Wiring Configuration TX3 Telephone Access System Installation and Operation Manual...
  • Page 81 NSL Relay Cabinet Installation and Wiring Table 7: RJ-71C Punch-Down Block Identification Form Relay Cabinet No. ____ of ____Decoder/Mother Board No.________ Relay Card/ Telephone Block Pins Apt. Dial Relay/ Relay Card/ Telephone Block Pins Apt. Dial Relay/ Amp. Jack Number Tel.
  • Page 82 NSL Relay Cabinet Installation and Wiring Table 7: RJ-71C Punch-Down Block Identification Form (Continued) Relay Cabinet No. ____ of ____Decoder/Mother Board No.________ Relay Card/ Telephone Block Pins Apt. Dial Relay/ Relay Card/ Telephone Block Pins Apt. Dial Relay/ Amp. Jack Number Tel.

  • Page 83: Updating Firmware

    NSL Relay Cabinet Installation and Wiring Updating Firmware After completion of the TX3-NSL-8M NSL Main Controller wiring and configuration, use the TX3-MSW Configuration Software to complete the firmware update. To update firmware Turn the power OFF by using SW1 on the bottom right side of the card access controller board.

  • Page 84: Adding Controllers And Accessories

    Adding Controllers and Accessories This chapter provides information about adding additional controllers on the same network as the Telephone Access System. This chapter explains • Adding a Controller • Installing the TX3-P300-HA Card Reader Adding a Controller The TX3 telephone access system may be integrated with other controllers, such as the TX3-CX Card Access system and Elevator Restriction Unit, through a peer-to-peer connection via the RS-485 bus, an Ethernet TPC/IP network, or a combination of RS-485 and Ethernet networks.

  • Page 85: Installing The Tx3-P300-Ha Card Reader

    Adding Controllers and Accessories Turn the power OFF for all units on the network. Connect the controller to the Telephone Access System via the RS-485 bus using the RS-485 connectors. Turn the power ON for all units on the network. Connect the PC to either the Telephone Access System or controller using the USB port.

  • Page 86: Figure 44 Install Tx3-P300-Ha

    Adding Controllers and Accessories Attach the card reader with the same screws. Screws (x2) TX3-P300-HA card reader Figure 44. Install TX3-P300-HA See LT-980 TX3-CX Card Access System Installation for instructions on connecting the card reader to the TX3-CX Card Access system. TX3 Telephone Access System Installation and Operation Manual...

  • Page 87: Specifications

    Specifications External Power Supply Mircom Model PS-4. 16 Vac/ 40 VA, CSA approved Class 2 Power Transformer Mircom Model PS-4P. 16 Vac/ 40 VA, CSA approved Class 2 Power Transformer, plug-in Input voltage: 105 Vac to 128 Vac Note: Maximum power consumption for an 8-line by 20 character LCD TX3 Lobby Control Unit is 6.2 Watts.
  • Page 88 Specifications Compatible Modems • TFM-560U High Speed USB 2.0 Fax Modem • TFM-561U High Speed USB 2.0 Fax Modem • Hiro H50113 56K V.92 USB Fax Modem • StarTech USB56KEM2 56k V.92 USB Fax Modem • Zoom 56K V.92 56K USB Mini External Fax Modem •...

  • Page 89: Resident Operating Instructions

    Resident Operating Instructions This chapter describes the Telephone Access System operating instructions for use by the resident. This chapter explains • NSL Resident Operating Instructions • ADC Resident Operating Instructions TX3 Telephone Access System Installation and Operation Manual...

  • Page 90: Nsl Resident Operating Instructions

    Resident Operating Instructions NSL Resident Operating Instructions Mircom's state-of-the-art door entry system provides you and your guest with an increased level of confidence and security. The TX3 Telephone Access system operates with your existing telephone. Your guest dials your code number or selects your name by scrolling through the electronic directory on the Entry unit, causing your telephone to ring.
  • Page 91 Resident Operating Instructions To answer the call Briefly push the call waiting key, “2”, to answer the call. This action automatically places the outside telephone line "on hold". While on-line with your guest, you can open the main door by dialling " 9 ".

  • Page 92: Adc Resident Operating Instructions

    Resident Operating Instructions ADC Resident Operating Instructions Mircom's state-of-the-art door entry system provides you and your guest with an increased level of confidence and security. The TX3 Telephone Access system operates with your existing telephone. Your guest simply dials your code number or selects your name by scrolling through the electronic directory on the Entry unit, causing your telephone to ring.

  • Page 93: Warranty & Warning Information

    Companies are not to be used as a fire, alarm, or life-safety system. NOTE TO INSTALLERS: All Mircom Systems have been carefully designed to be as effective as possible. However, there are circumstances where they may not provide protection. Some reasons for system failure include the following.
  • Page 94 Best practices and local authority having jurisdiction determine the frequency and type of testing that is required at a minimum. Mircom System may not function properly, and the occurrence of other system failures identified below may not be minimized, if the periodic testing and maintenance of Mircom Systems is not completed with diligence and as required.
  • Page 95 Battery Failure. If the Mircom System or any device connected to the system operates from batteries it is possible for the batteries to fail. Even if the batteries have not failed, they must be fully charged, in good condition, and installed correctly.
  • Page 96 Integrated Products. Mircom System might not function as intended if it is connected to a non-Mircom product or to a Mircom product that is deemed non-compatible with a particular Mircom System. A list of compatible products can be requested and obtained.
  • Page 97 Warranty & Warning Information Warranty Purchase of all Mircom products is governed by: https://www.mircom.com/product-warranty https://www.mircom.com/purchase-terms-and-conditions https://www.mircom.com/software-license-terms-and-conditions TX3 Telephone Access System Installation and Operation Manual...

  • Page 98: Special Notices

    Special Notices Product Model Number: TX3 AC REN (U.S.): 0.0B AC REN (CANADA): 0.0 Complies With Federal Communications Commission (FCC): • TIA-968-A Technical requirement for connection of equipment tot he telephone network. • CFR 47, Part 15, Subpart B, Class B •...
  • Page 99 Special Notices Repairs to certified equipment should be made by an authorized Canadian maintenance facility designated by the supplier. Any repairs or alteration made by the user to this equipment, or equipment malfunctions, may give the telecommunications company cause to request the user to disconnect the equipment.
  • Page 100 Contact your telephone company if you have any questions about your telephone line. In the event repairs are ever needed on the Communicator, they should be performed by Mircom or an authorized representative of Mircom. For information contact Mircom at the address and telephone numbers in paragraph 1.8.
  • Page 101 Equipment Failure If trouble is experienced with the TX3 Telephone/Card Access System, for repair or warranty information, please contact Mircom using the numbers paragraph 1.8. If the equipment is causing harm to the telephone network, the telephone company may request that you disconnect the equipment until the problem is resolved.
