Using the Kiosk base plate as a template, trace an opening in the floor for
the cutout and mark the 4 base plate mounting hole locations as shown in
Figure 53. Ensure that the base plate is aligned with the electrical conduit.

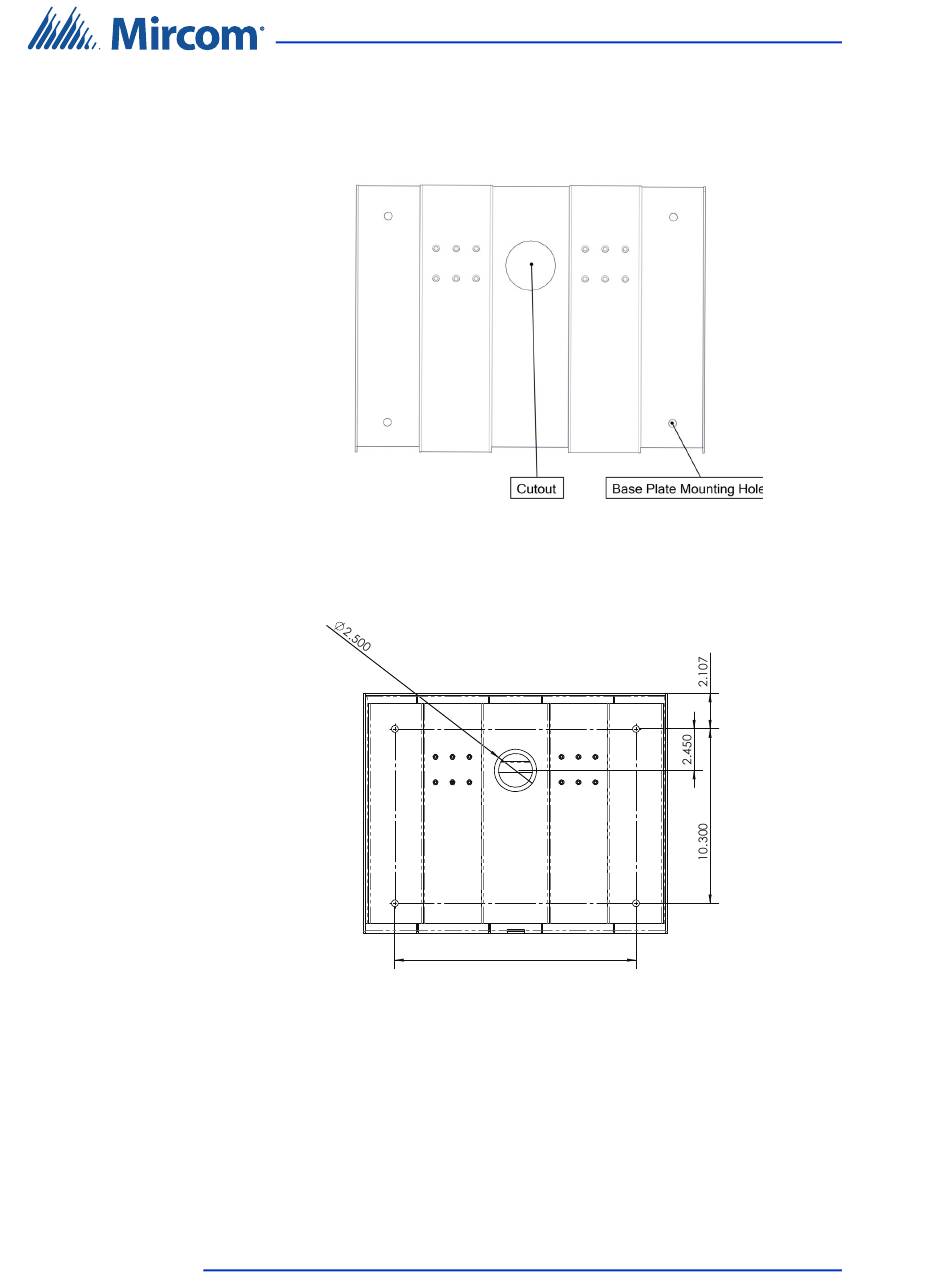

Figure 53. Base plate mounting holes
Figure 54 shows the dimensions of the base plate.
Figure 54. Base plate dimensions (inches)
Cut an opening in the floor for the electrical and communication cables.
Run the wires through the base plate opening.
Secure the base plate to the floor using 4 bolts in the base plate mounting
holes shown in Figure 53. The holes are 0.406" in diameter.
