Mode Setting - Delta Modulon DPH Series User Manual

UPS-1.1
BYPASS SETTING
Bypass Frequency Range
Bypass Voltage (Max.)
Bypass Voltage (Min.)
ECO Voltage Range

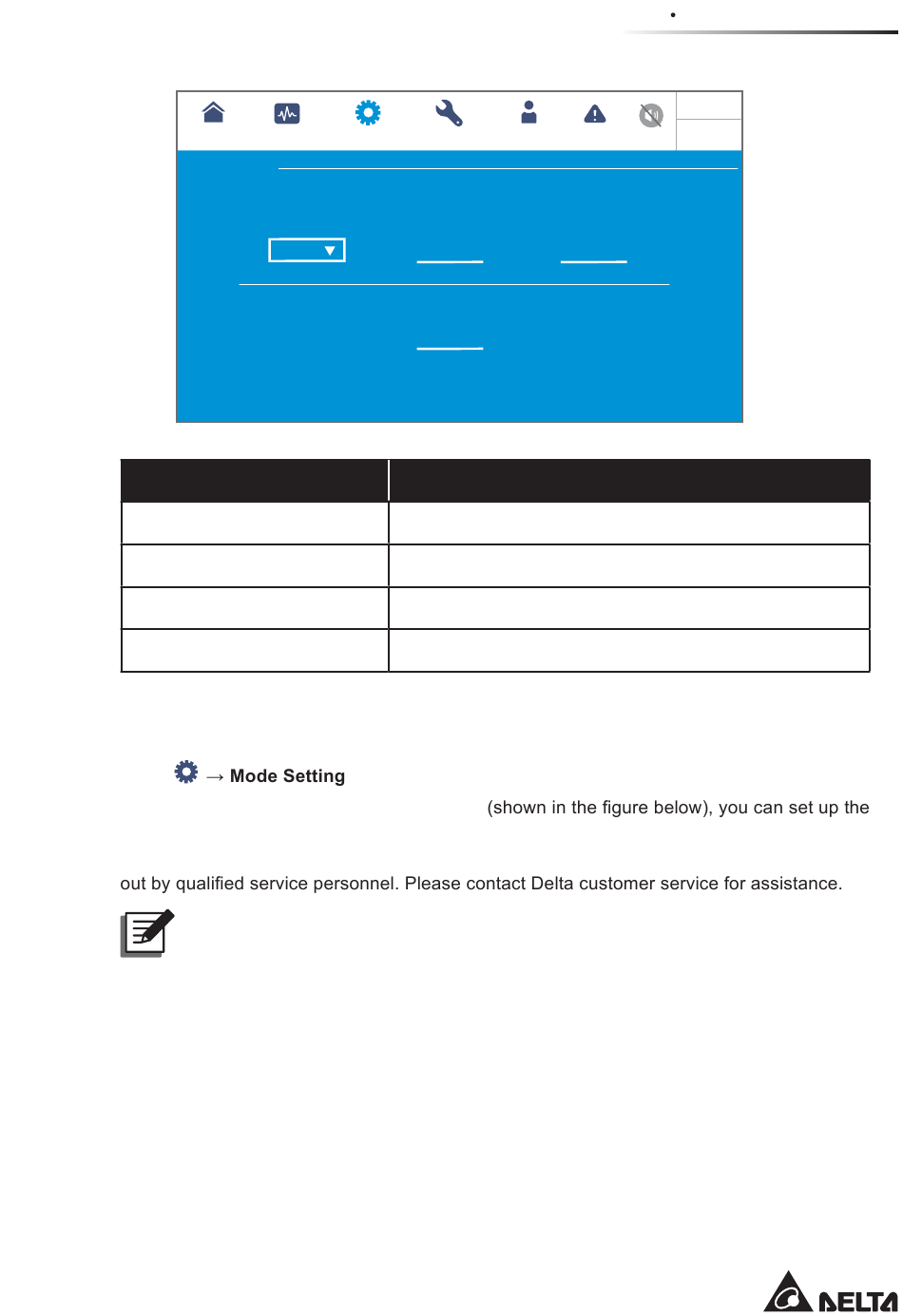

7.10.2 Mode Setting

Path:
SETUP
After entering the MODE SETTING screen*
UPS system mode, of which there are 5 options: On-Line Mode, Green Mode, ECO Mode,
Energy Recycle Mode and Frequency Conversion Mode. These settings must be carried
NOTE:
1
* means that the Administrator password is needed. For password information,
please refer to 7.5 Password Entry.
MEASUREMENT SETUP
Bypass setting
Bypass Frequency Range Bypass Voltage(Max)
± 3 Hz
ECO Voltage Range(±%)
Item
Set up the bypass output's frequency range.
Set up the bypass output's maximum voltage.
Set up the bypass output's minimum voltage.
Set up the bypass output's voltage range in ECO mode.
MAINTENANCE LOG IN EVENT LOG
Administrator
Bypass Voltage(Min)
+ 10 % -
± 9 %
Description
1
7-41
7 LCD Display & Settings
10:15
Sep 25,2018
Bypass
10 %
