kWH Statistics
Sheet Tab
On the X-axis
(1) Minimum unit: one hour (a piece of data); interval: 24 × 2 hours.
(2) Interval marks: Sun. 00:00/ Tue. 00:00/ Thur. 00:00/ Sat. 00:00 of the week.
(3) 168 pieces of data (24 hours × 7 days) are shown in the column chart of the
week.
Tap the icon (
the previous/ next week.

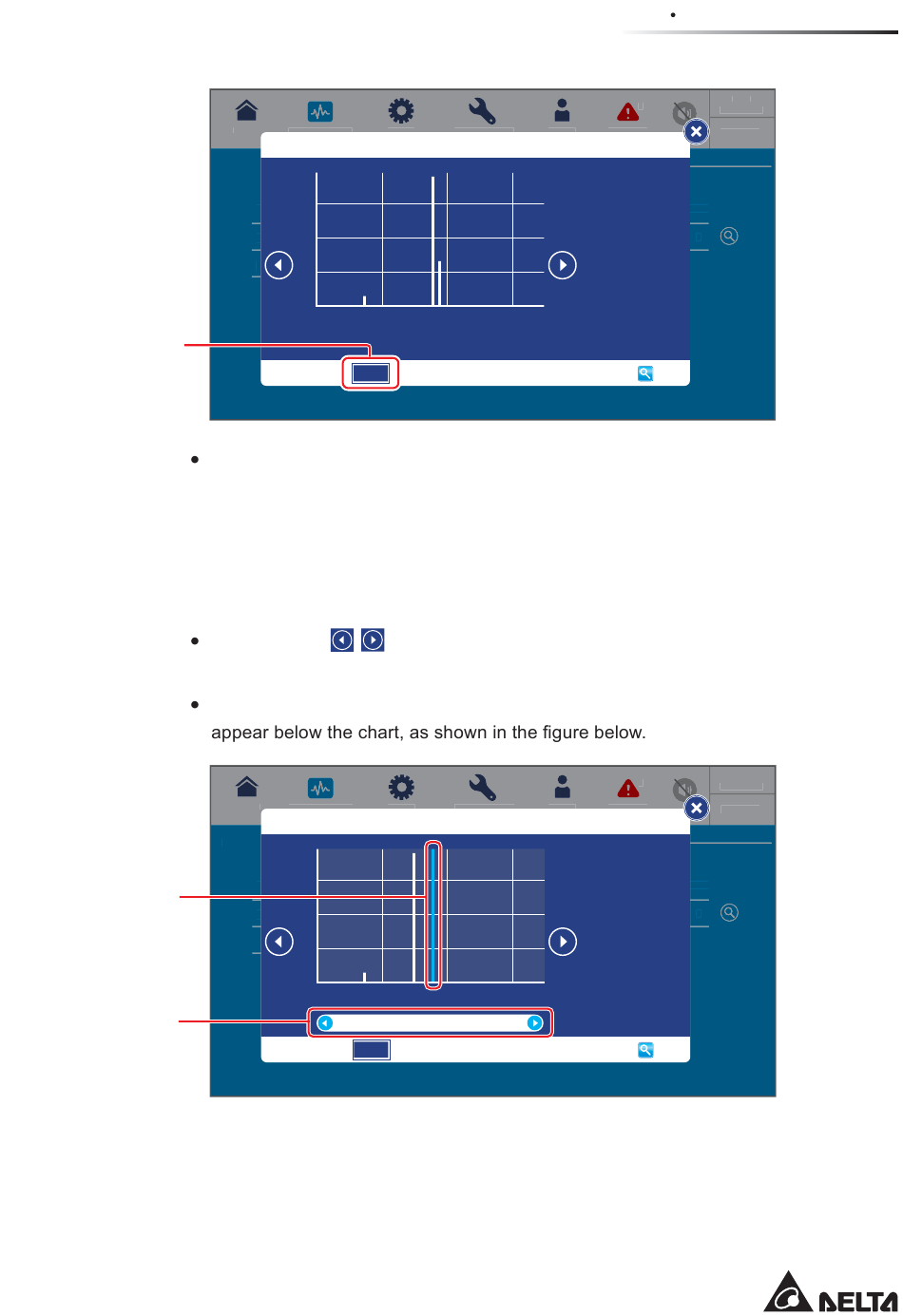

Tap one of the columns on the chart, and the corresponding piece of data will
