4
Insert the power module into the unoccupied power module slot until it snaps into
place. Two people are required.
WARNING:
To consider the center of gravity, please install the power modules from the
top layer of the power module slot to the bottom layer of the power module
slot in sequence.

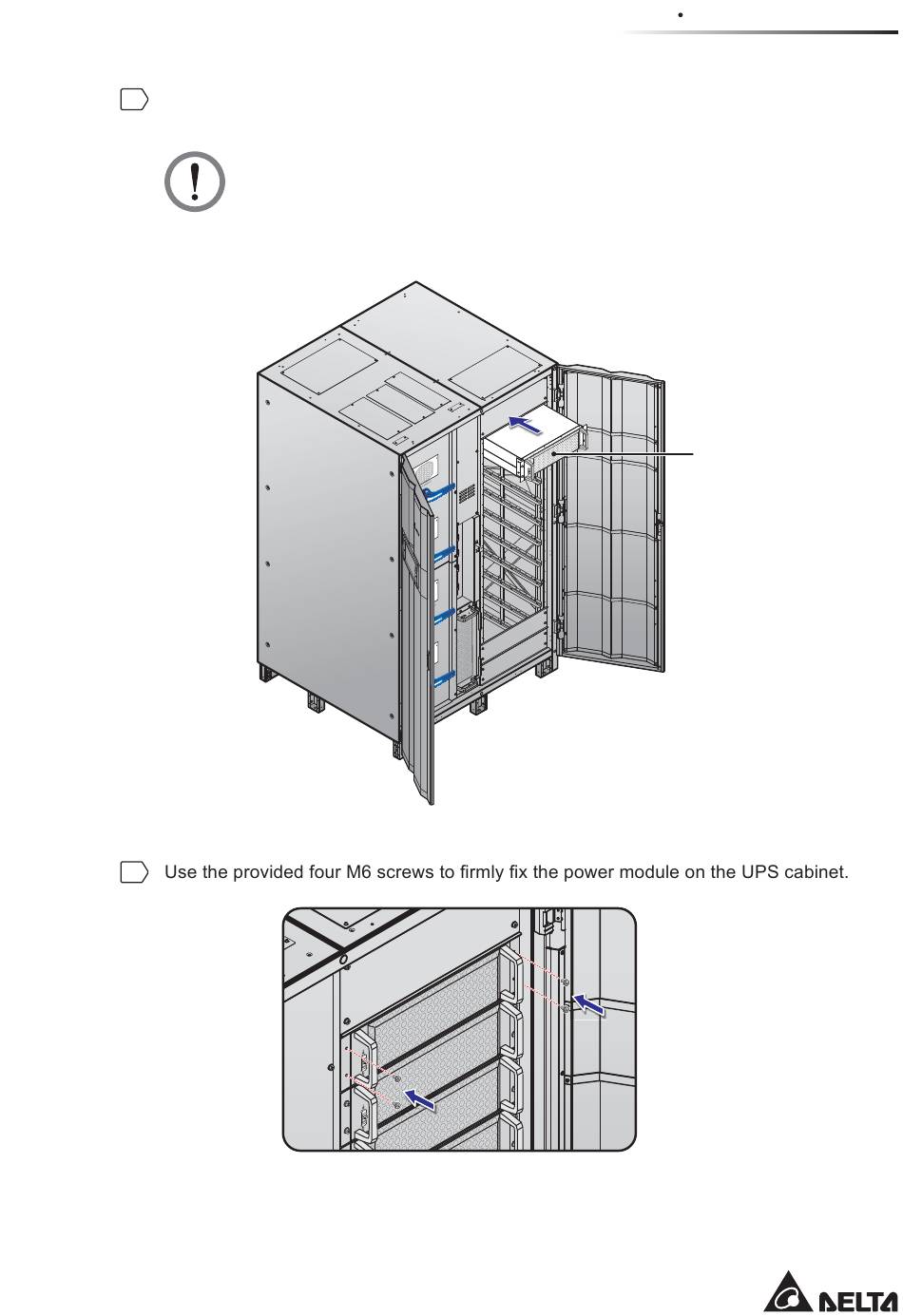

(Figure 5-35: Insert the Power Module into the UPS)
5
(Figure 5-36: Fix the Power Module on the UPS)
5-35
5 Installation and Wiring
Power Module
