Delta Modulon DPH Series User Manual page 157

3

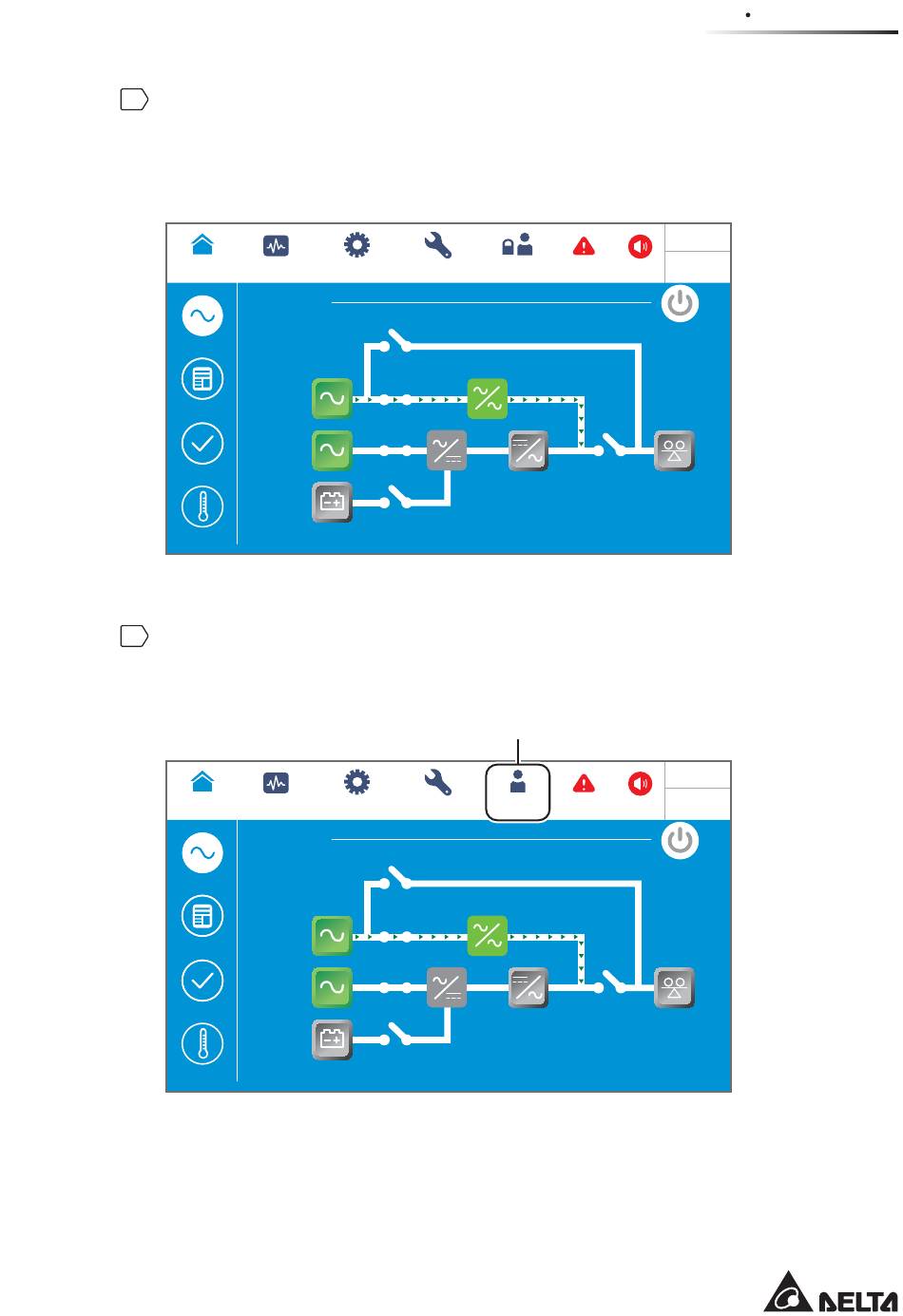

After selection of 'YES', the UPS will stop self-aging test and transfer to run in Bypass
mode. At this moment, the tri-color LED indicator illuminates yellow and the following
screen appears (Figure 6-69). For the tri-color LED indicator's location, please refer to
Figure 2-11.
