7 Tap the ON/ OFF Button (
to power on the UPS's inverter. Please select 'YES'.
UPS-1.1 MEASUREMENT
Power Flow
8
After selection of 'YES' to start up the UPS's inverter, each power module will start
up and perform self-inspection. At the same time, the system begins synchronization
with the bypass AC source. After the self-inspection is completed, the UPS will
automatically transfer to run in On-Line mode, the tri-color LED indicator will illuminate
green and the following screen will appear. For the location of the tri-color LED
indicator, please refer to Figure 2-11.
UPS-1.1 MEASUREMENT
Power Flow
POWER FLOW
Maintenance
Power Flow
Bypass
Bypass
Summary
Mains
System Status
90 %
5 mins
EMS
) and the following screen will pop up to ask if you want
SETUP MAINTENANCE
POWER ON ?
Yes

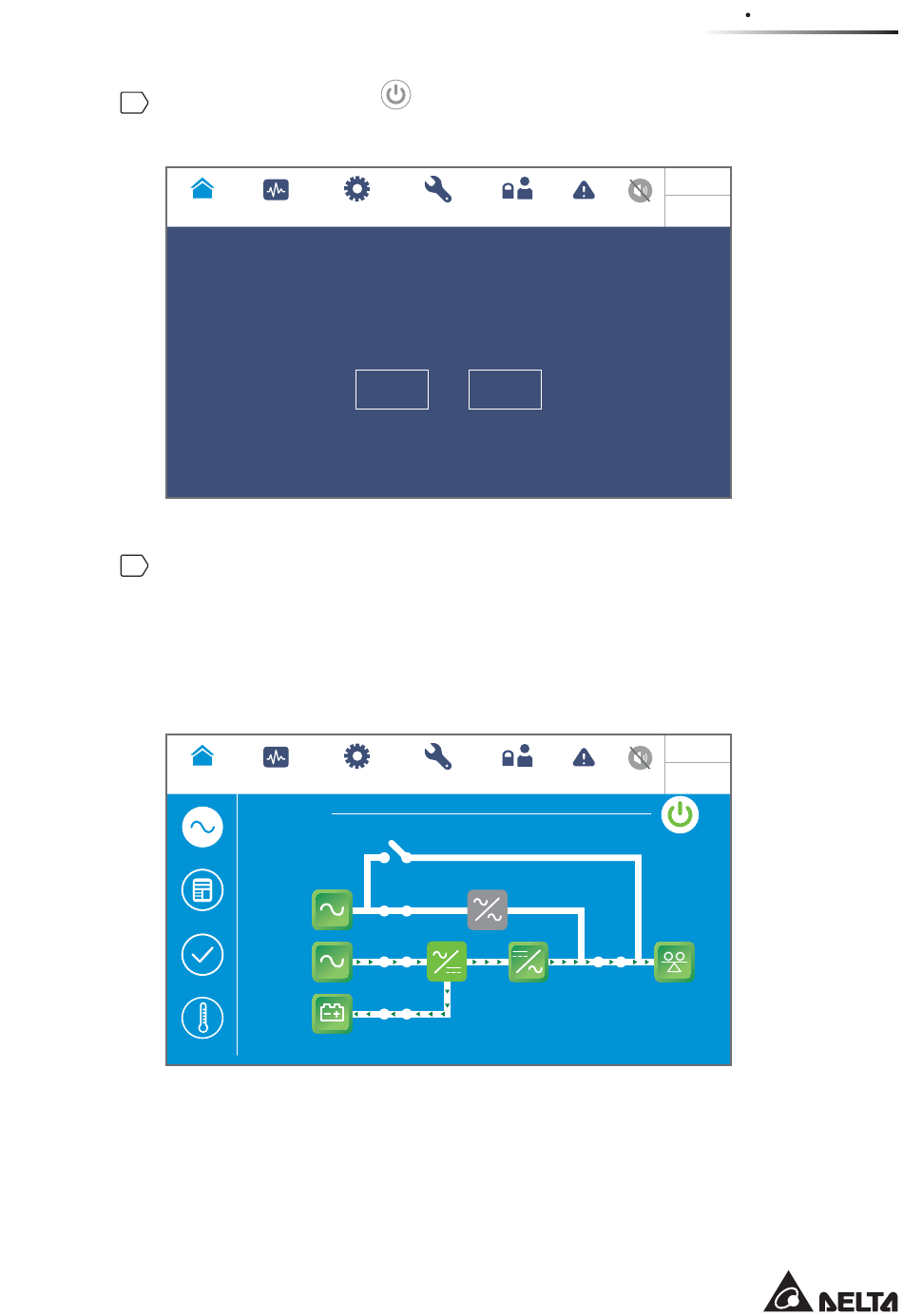

(Figure 6-4: Power on Reminder Screen)
SETUP MAINTENANCE
(Figure 6-5: On-Line Mode Screen)
