Delta Modulon DPH Series User Manual page 61

No. Item
Dry Contact
1
Card
Parallel
Communication
2
Card
SMART Slot
3
System
4
Control Card
Auxiliary
5
Power Card
Display External External Switch/
Port Battery Breaker Status
Temperature Dry Contacts
Dry Contacts
DISPLAY
O/P DRY
EXT. BATT EXT.SWITCH
CONTACT
TEMP. STATUS
BT1 BT2 S1 S2 P1 P2 P3
REPO
NC NO
BT3 BT4 S3 S4 P4 P5 P6
REPO Output
Dry Dry
Contacts Contacts Contacts
Q'ty
1 PC
2 PCS
1 PC
1 PC
2 PCS
Backup Parallel
Communication
Card's LED Indicator
I/P DRY
CONTACT
P1 P2
PARALLEL
P3 P4 PARALLEL
Input Master Parallel
Dry Parallel Ports
Communication
Card's LED Indicator

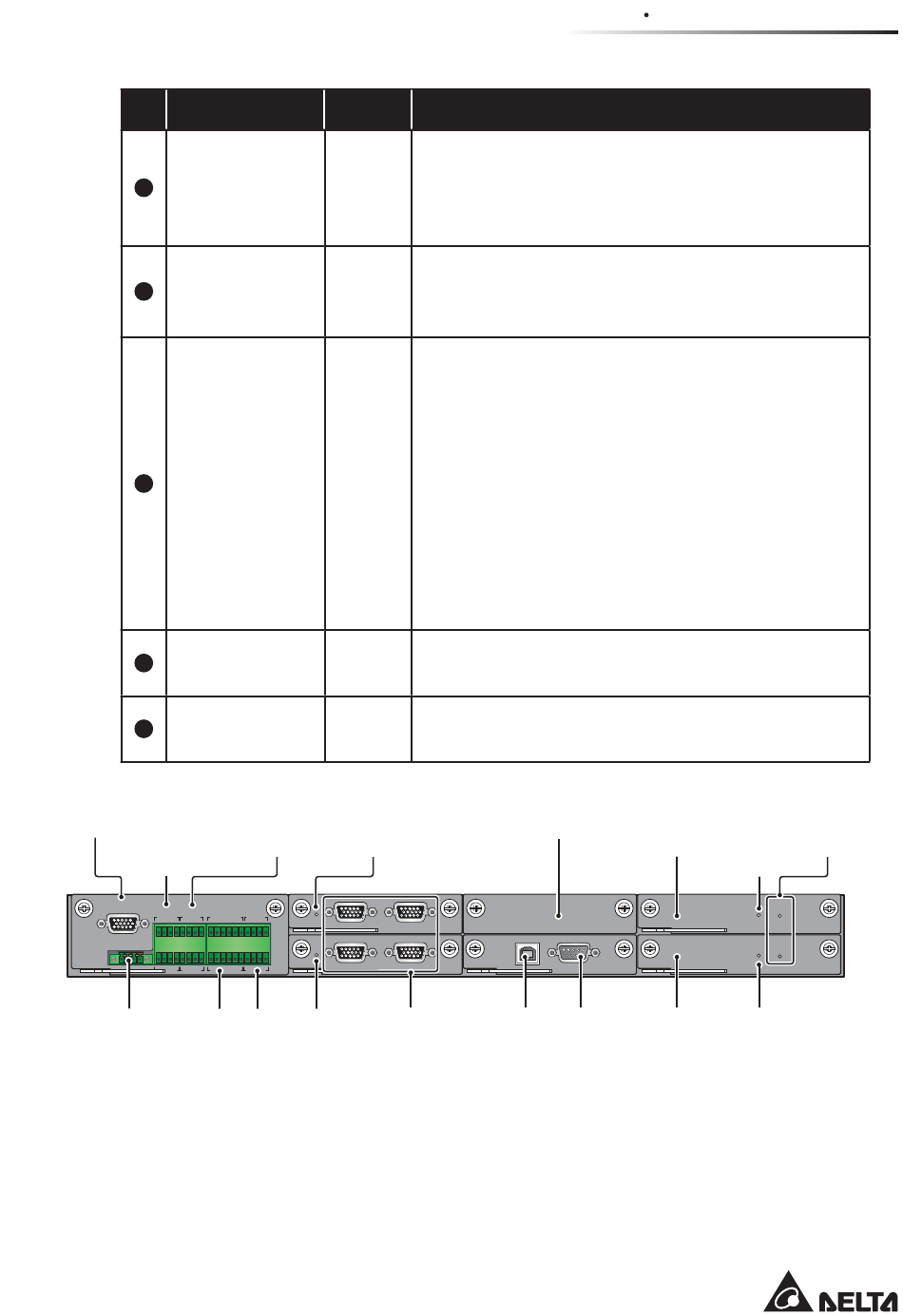

(Figure 4-3: Functions of Communication Interfaces)
Description
Includes a display port, REPO dry contacts, external
battery temperature dry contacts, external switch/
breaker status dry contacts, output dry contacts and
input dry contacts.
Each card includes two parallel ports and one LED
indicator.
1. You can install the optional Relay I/O card in the
slot for dry contact expansion.
2. If you use the Delta lithium-ion batteries, you
must purchase the optional multifunctional
communication card (MFC) and install it in the
SMART slot to monitor the status and information
of the Delta lithium-ion batteries. For relevant
information, please refer to 7.9.6 Battery Status,
7.10.4 Battery & Charging Setting and 7.10.7
General Setting. If you have any questions,
please contact Delta customer service.
Includes a USB port and an RS-232 port.
Each card includes a LED indicator and a battery
start button.
SMART
Slot
USB RS-232
USB RS-232
Port Port
4-3
4 Communication Interfaces
Auxiliary Auxiliary
Power Power
Card Card's LED
Indicator
BATT.
START
BATT.
START
Auxiliary Auxiliary Power
Power Card Card's LED
Indicator
Battery
Start
Button
