After 20 seconds of LCD initialization, the LCD will enter the Main Screen. For the
Main Screen information, please refer to 7.6 Main Screen.
Now, each power module keeps running and its LED indicator remains green. After
each power module finishes establishing DC BUS voltage, the charger will start to
charge the batteries.
If the bypass AC source is within the normal range, the UPS will transfer to run in

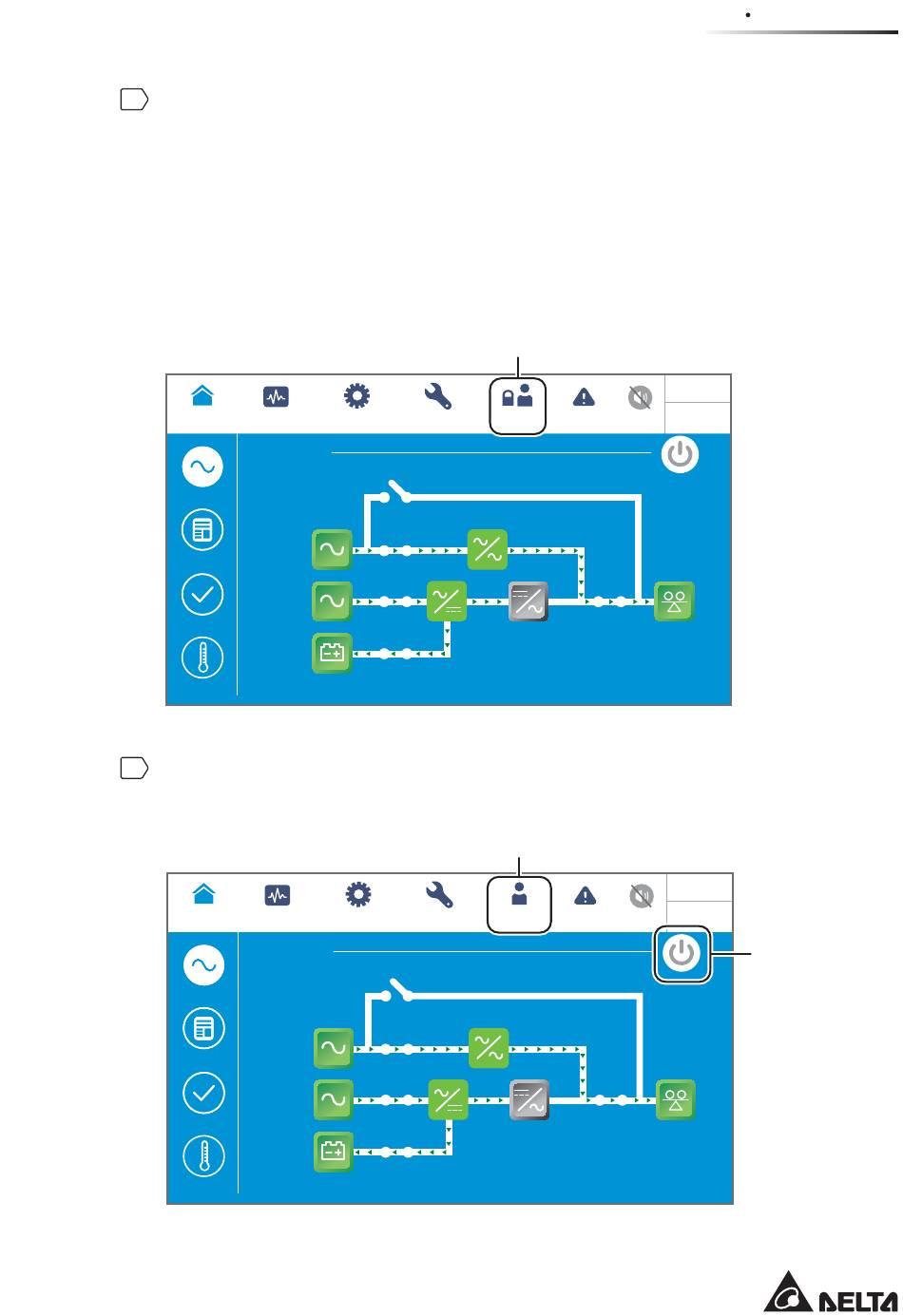

Bypass mode, the LCD screen will show as Figure 6-28 and the tri-color LED indicator
will illuminate yellow. For the location of the tri-color LED indicator, please refer to
Figure 2-11.
UPS-1.1 MEASUREMENT
Power Flow
POWER FLOW
Maintenance
Power Flow
Bypass
Bypass
Summary
Mains
System Status
90 %
5 mins
EMS
7
Please log in as an Administrator. For the Administrator password, please contact
service personnel. After login, ensure that you are in the Administrator login status
(see Figure 6-29).
UPS-1.1 MEASUREMENT
Power Flow
POWER FLOW
Maintenance
Power Flow
Bypass
Bypass
Summary
Mains
System Status
90 %
5 mins
EMS
(Figure 6-29: Main Screen_ Administrator Login & ON/ OFF Button Location)
