Item
Clear Battery Test
Result
Clear Kilowatt Hour
(kWh)
NOTE:
The records of (1) statistics, (2) historical event, (3) battery test result, and
(4) kilowatt hour (kWh) provide important information for system analysis and
maintenance. Do not clear any of them without the consent of qualified service
personnel.

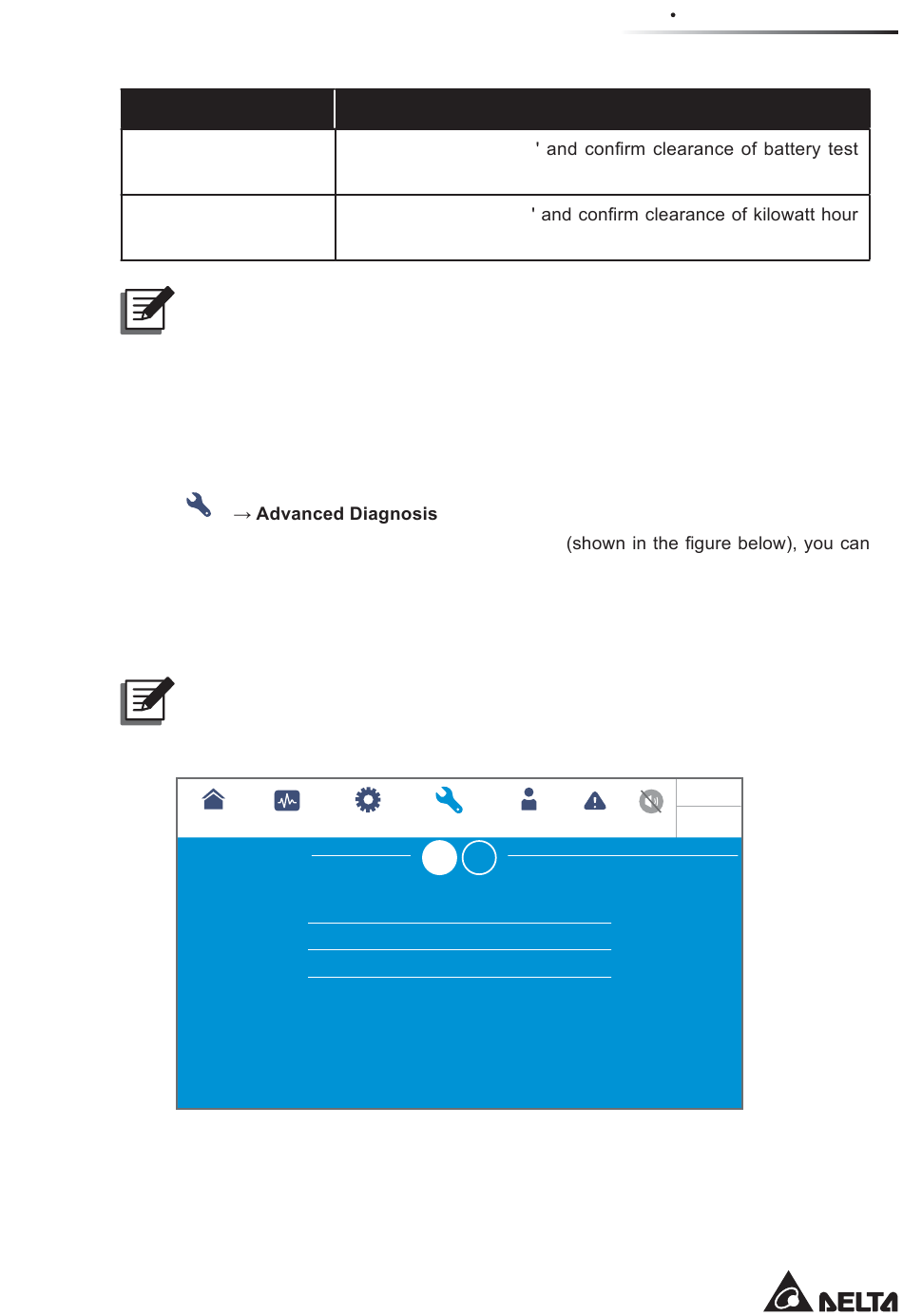

7.11.6 Advanced Diagnosis

Path:
MAINTENANCE
After entering the ADVANCED DIAGNOSIS screen*
check:
1. STS temperature, battery temperature, and fan speed of the system.
2. INV temperature and PFC temperature of a specific battery module.
NOTE:
1
* means that the Administrator password is needed. For password information,
please refer to 7.5 Password Entry.
UPS-1.1
ADVANCED DIAGNOSIS
After you select 'Clear
result, the battery test result will be cleared.
After you select 'Clear
records, the kilowatt hour statistics will be cleared.
MEASUREMENT SETUP MAINTENANCE
Advanced Diagnosis
STS Temp. (°C)
Battery Temp. (°C)
Fan Speed (rpm)
Description
1
LOG IN EVENT LOG
Administrator
POWER
SYSTEM
MODULE
25 25 25
25
25 25 25
2300 2300
7-63
7 LCD Display & Settings
10:15
Sep 25,2018
Bypass
-
