10 Tap the ON/ OFF Button (
to power on the UPS's inverter. Please select 'YES'.
UPS-1.1
Power Flow
11
After selection of 'YES' to start up the UPS's inverter, each power module will start
up and perform self-inspection. At the same time, the system begins synchronization
with the bypass AC source. After the self-inspection is completed, the UPS will
automatically transfer to run in Green mode and the system will automatically detect
Now, the tri-color LED indicator illuminates green and the following screen appears.
For the tri-color LED indicator's location, please refer to Figure 2-11.
UPS-1.1
Power Flow
Power Flow
Summary
System Status
Modulon DPH Series
MEASUREMENT SETUP

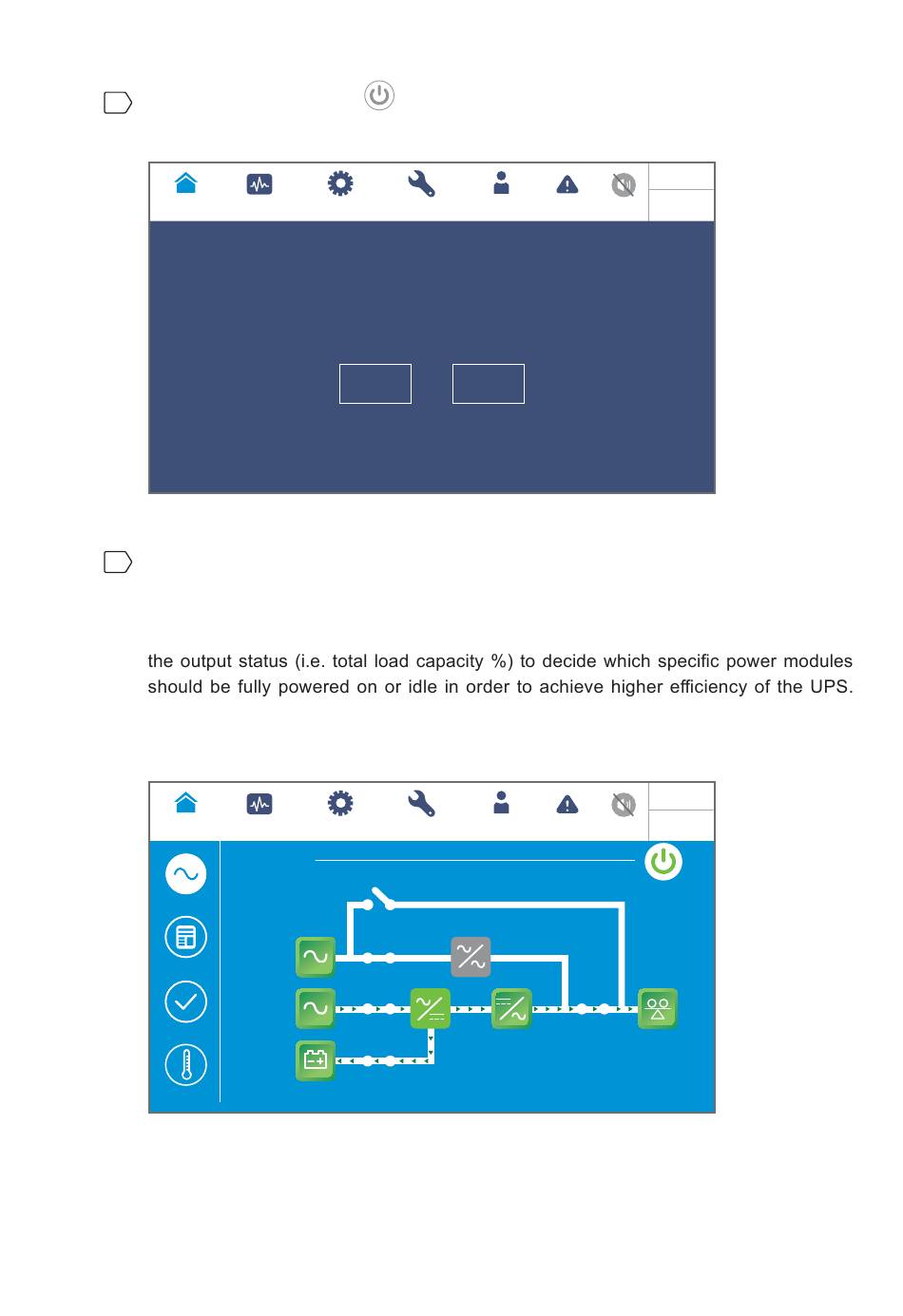

(Figure 6-37: Power on Reminder Screen)
MEASUREMENT SETUP
POWER FLOW
Maintenance
Bypass
Bypass
Mains
90 %
5 mins
EMS
(Figure 6-38: Green Mode Screen)
) and the following screen will pop up to ask if you want
