If the bypass AC source is within the normal range, the UPS will transfer to run in
Bypass mode, the LCD screen will show as Figure 6-40 and the tri-color LED indicator
will illuminate yellow. For the location of the tri-color LED indicator, please refer to
Figure 2-11.
UPS-1.1
Power Flow
Power Flow
Summary
System Status
6
Please log in as an Administrator. For the Administrator password, please contact
service personnel. After login, ensure that you are in the Administrator login status
(see Figure 6-41).
UPS-1.1
Power Flow
Power Flow
Summary
System Status

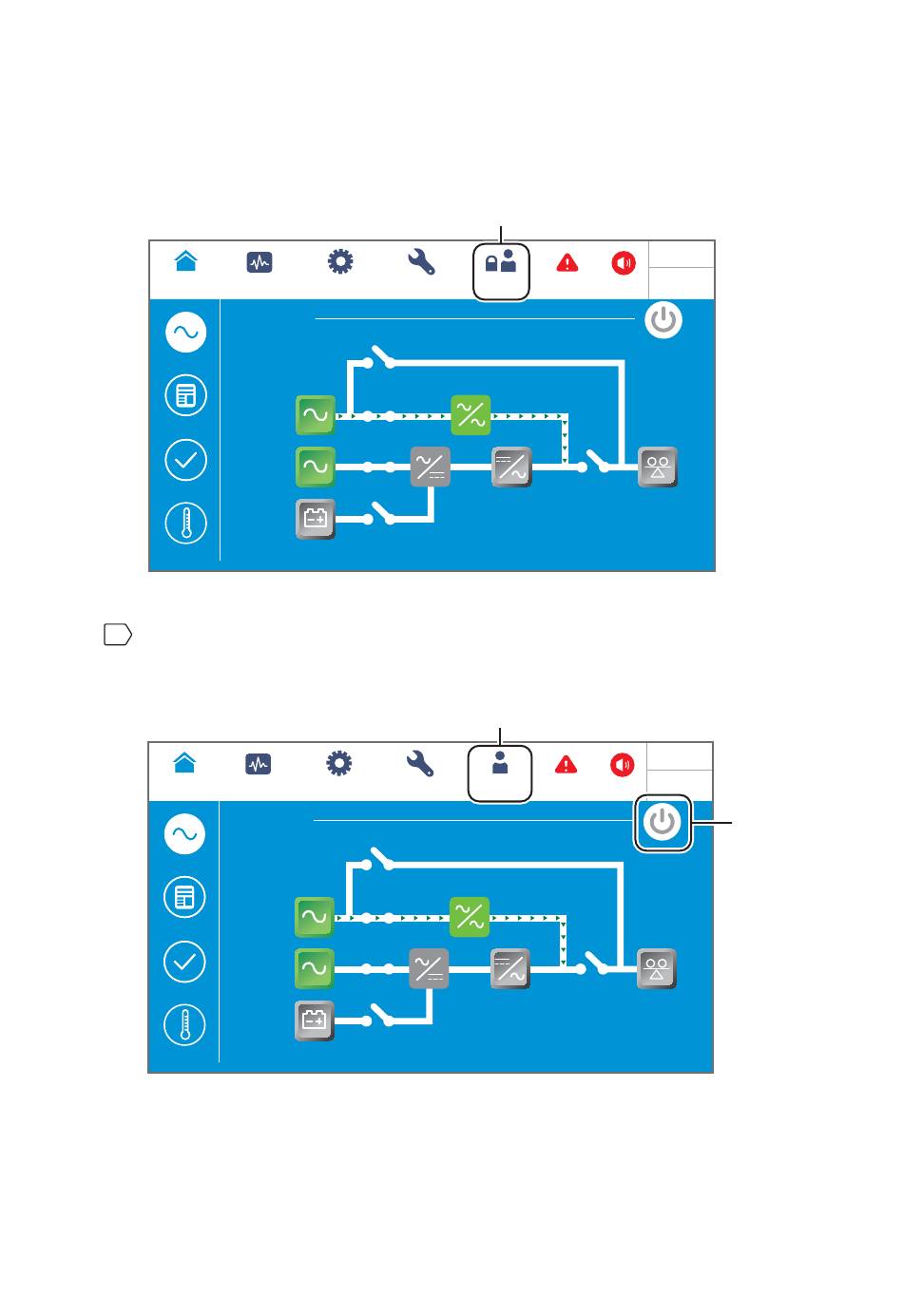

(Figure 6-41: Main Screen_ Administrator Login & ON/ OFF Button Location)
