After selection of 'YES', the UPS will shut down each power module's output and let
the bypass AC source supply power. If the bypass AC source is abnormal, there is a
risk of output interruption and the connected critical loads won't be protected. At this
moment, each power module keeps charging the batteries, the tri-color LED indicator
illuminates yellow and the following screen appears (Figure 6-64). For the tri-color
LED indicator's location, please refer to Figure 2-11.
UPS-1.1
Power Flow
Power Flow
Summary
System Status
4
Please log in as an Administrator. For the Administrator password, please contact
service personnel. After login, ensure that you are in the Administrator login status
(see Figure 6-65).
UPS-1.1
Power Flow
Power Flow
Summary
System Status
Modulon DPH Series
MEASUREMENT SETUP
POWER FLOW
Maintenance
Bypass
Bypass
Mains
90 %
5 mins
EMS

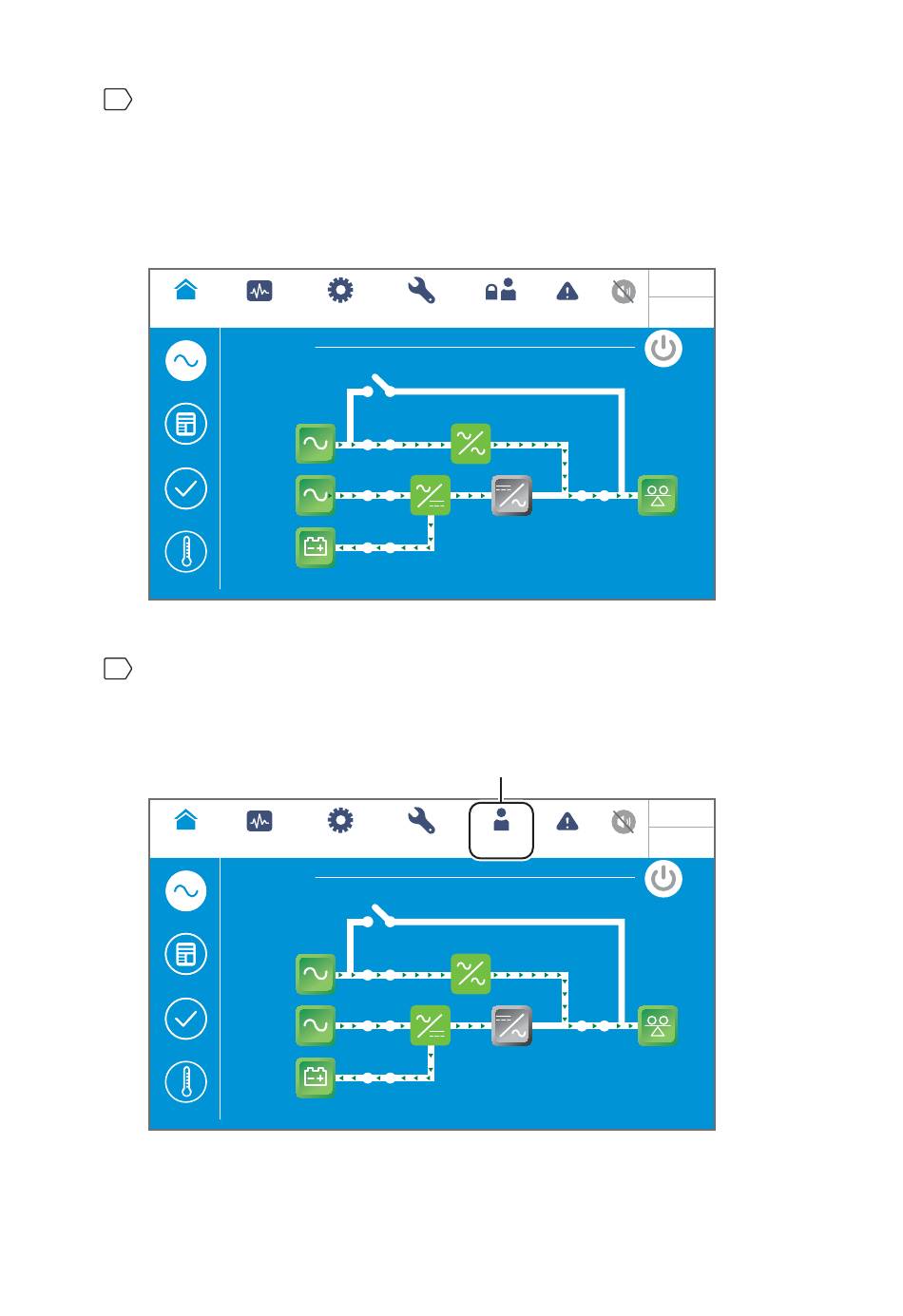

(Figure 6-64: Bypass Mode Screen)
MEASUREMENT SETUP
POWER FLOW
Maintenance
Bypass
Bypass
Mains
90 %
5 mins
EMS
(Figure 6-65: Bypass Mode Screen_ Administrator Login)
