Delta Modulon DPH Series User Manual page 174

6
System Status

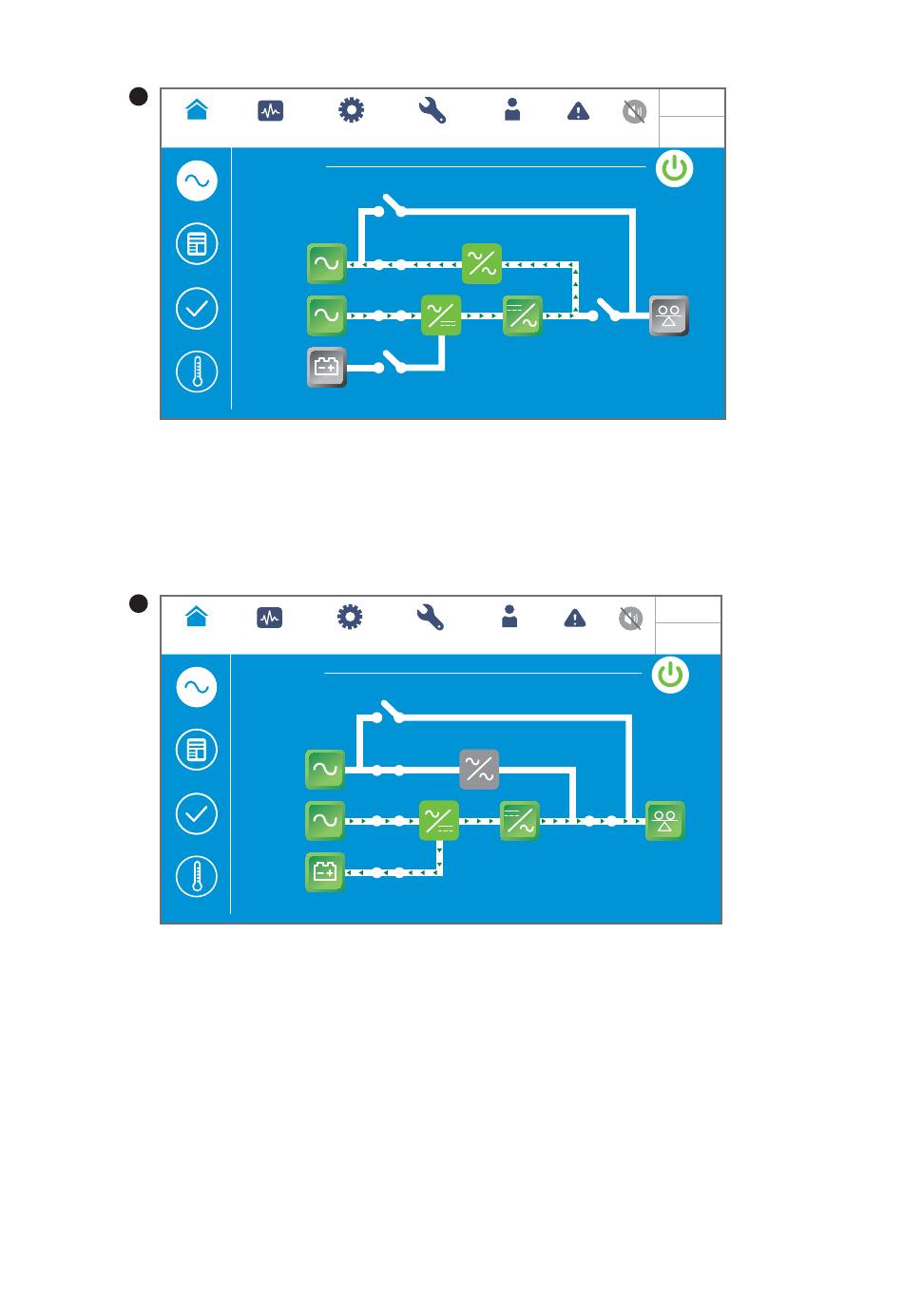

The screen above indicates that the UPS is in Energy Recycle mode. The output power
will be recycled to the main input without being sent to the loads and the aging test could be
conducted. For Energy Recycle mode settings, please refer to 7.10.2 Mode Setting and
6.2.8 Energy Recycle Mode Start-up Procedures.
7
System Status
The screen above indicates that the UPS is in Frequency Conversion mode and the
bypass output is restricted. For Frequency Conversion mode settings, please refer to
7.10.2 Mode Setting and 6.2.6 Frequency Conversion Mode Start-up Procedures.
