3.1.5 ECO Mode_ Single Input_ Single Unit

To activate ECO mode, please refer to 6.2.5 ECO Mode Start-up Procedures, 7.6 Main
Screen and 7.10.2 Mode Setting.
In ECO mode, when bypass AC source's input voltage and frequency are within the range
of rating voltage ±10% and rating frequency ±3Hz respectively, the UPS works in Bypass
mode; otherwise, the UPS runs in On-Line mode. For ECO mode diagram, please see
Figure 3-5. During ECO mode, the UPS's tri-color LED illuminates green and the text 'ECO'
appears in the upper right corner of the screen.
MAIN
Batteries

3.1.6 Frequency Conversion Mode_ Single Input_ Single Unit

To activate Frequency Conversion mode, please refer to 6.2.6 Frequency Conversion
Mode Start-up Procedures, 7.6 Main Screen and 7.10.2 Mode Setting.
After the UPS is manually set in Frequency Conversion mode, the inverter will automatically
the system will automatically disable the bypass function. Please note that, once the
inverter shuts down, there is no bypass output. For the diagram of Frequency Conversion
mode, please see Figure 3-6. During Frequency Conversion mode, the UPS's tri-color LED
illuminates green and the text 'Frequency Conversion' appears in the upper right corner of
the screen.
Modulon DPH Series
Q3
Q2
Q1
Q5

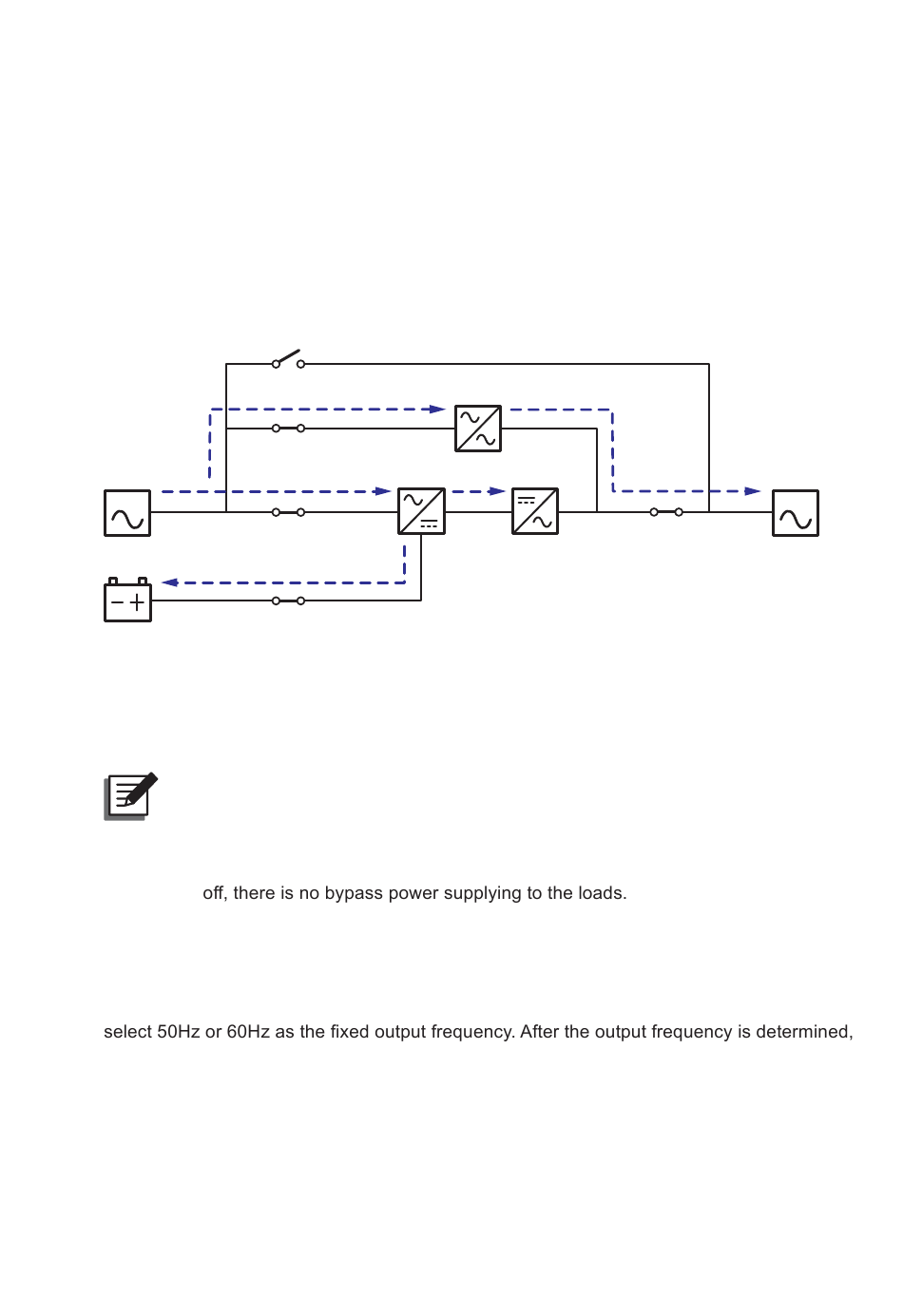

(Figure 3-5: ECO Mode Diagram_ Single Input Single Unit)
NOTE:
1. Frequency Conversion mode is only applicable to single UPS but not to parallel
UPSs.
2. When the UPS runs in Frequency Conversion mode, once the inverter becomes
Static Switch
Rectifier Inverter
3-6
LOAD
Q4
