The LCD initial screen (see Figure 6-10) will appear within 40 seconds after the Input
Switch (Q1) and Bypass Switch (Q2) are turned on.
6
After 20 seconds of LCD initialization, the LCD will enter the Main Screen. For the
Main Screen information, please refer to 7.6 Main Screen.
Now, each power module keeps running and its LED indicator remains green. After
each power module finishes establishing DC BUS voltage, the charger will start to
charge the batteries.
If the bypass AC source is within the normal range, the UPS will transfer to run in
Bypass mode, the LCD screen will show as Figure 6-11 and the tri-color LED indicator
will illuminate yellow. For the location of the tri-color LED indicator, please refer to
Figure 2-11.
UPS-1.1
MEASUREMENT
Power Flow
POWER FLOW
Maintenance
Power Flow
Bypass
Bypass
Summary
Mains
System Status
90 %
5 mins
EMS

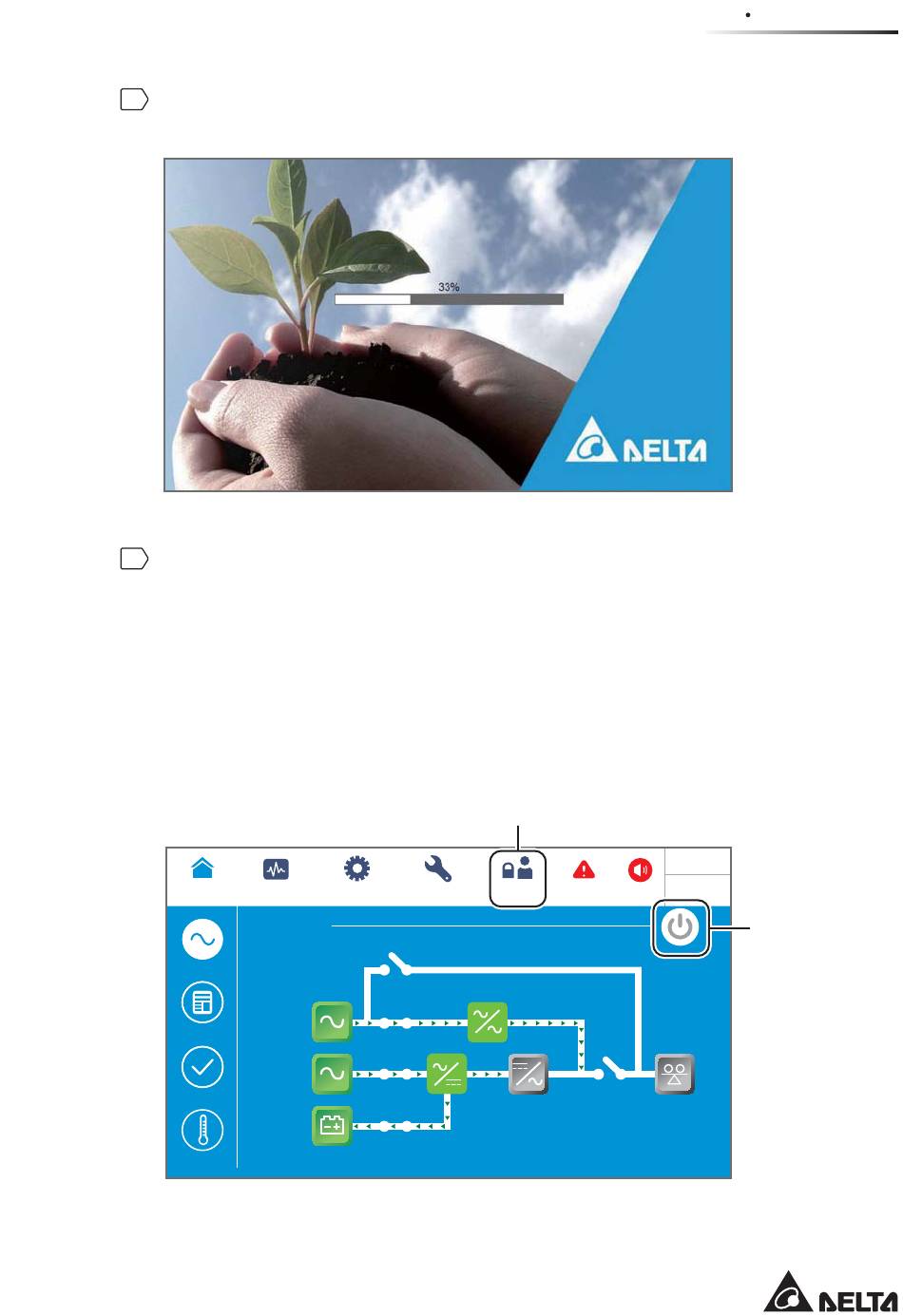

(Figure 6-11: Main Screen_ User Login & ON/ OFF Button Location)
(Figure 6-10: LCD Initial Screen)
User Login
SETUP
MAINTENANCE
6-11
2
LOG IN
WARNING
User
Load
0 %
6
UPS Operation
10:15
Sep 25,2018
Bypass
ON/ OFF
Button
